Find the truth table for the following circuit:
Input(Clock,enable,reset) Output(7 seg0-7))

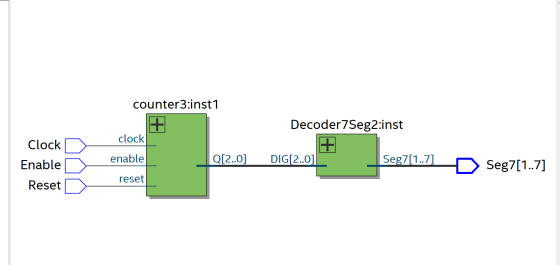

![counter3.inst1 + clock Clock Decoder7Seg2.inst + DIG[2..0] Seg7[1..7] enable Enable Q[2...] D Seg7[1..7] reset Reset](http://img.homeworklib.com/questions/23c73070-0665-11eb-9c68-4f4cbdd59f47.png?x-oss-process=image/resize,w_560)

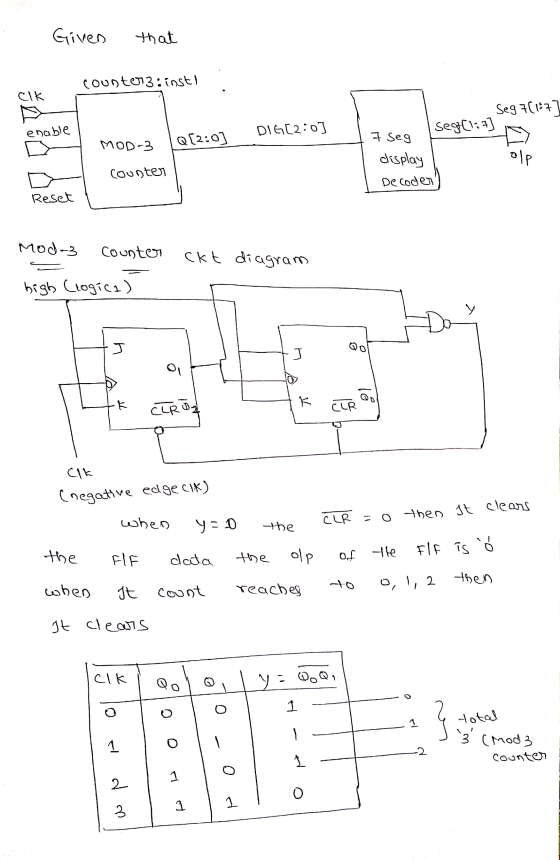

![Given that counterg:inst) clk Seg 7(17 seqC1:7) enable DIG (2:0) MOD-3 Q[2:0] 7 seg display Decoder olp counter Reset Mod-3 C](http://img.homeworklib.com/questions/24ebac80-0665-11eb-86a0-ff0070e08ad7.png?x-oss-process=image/resize,w_560)

Find the truth table for the following circuit: Input(Clock,enable,reset) Output(7 seg0-7)) counter3.inst1 + clock Clock Decoder7Seg2.inst...
