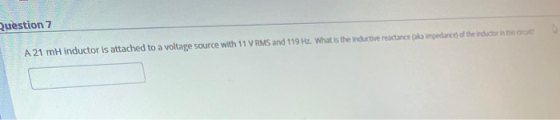

Question 7 A 21 mH inductor is attached to a voltage source with 11 V RMS...

Question

Question

science physics

Answer 1

Answer #1

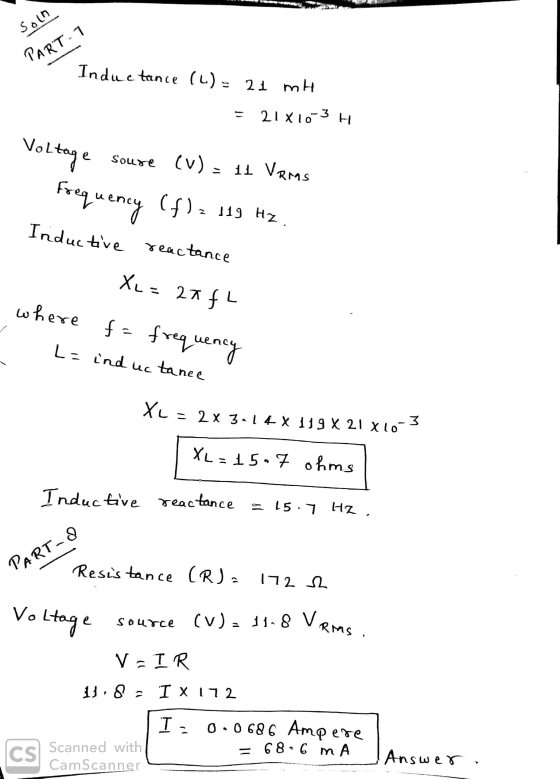

soln PART 1 Inductance (L) - 21 mH 21 X 16-3 H Voltage Soure (v) = 11 VRMS Frequency (f) = 119 Hz Inductive reactance XL = 27

Answer 2

Similar Homework Help Questions

A 17 mH inductor is attached to a voltage source with 17 V RMS and 119...

A 17 mH inductor is attached to a voltage source with 17 V RMS and 119 Hz. What is the inductive reactance (aka impedance) of the inductor in this circuit?
Question 8 The RMS voltage across a 172 resistor is 11.8 V. What is the peak...

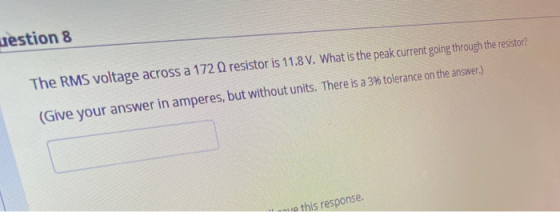

Question 8 The RMS voltage across a 172 resistor is 11.8 V. What is the peak current going through the resistor? (Give your answer in amperes, but without units. There is a 3% tolerance on the answer.)
QUESTION 29 An RLC circuit consists of an alternating voltage source with RMS voltage 130 V...

QUESTION 29 An RLC circuit consists of an alternating voltage source with RMS voltage 130 V and frequency 65 Hz, a 90 Ohm resistor, a 130 mH inductor, and a 200 micro-F capacitor, all wired in series. a) What is the inductive reactance of the circuit? b) What is the capacitive reactance of the circuit? c) What is the impedance of the circuit? d) What is the RMS current in the circuit? e) If the frequency is adjustable, what frequency...

An AC source has an output rms voltage of 71.0 V at a frequency of 41.5...

An AC source has an output rms voltage of 71.0 V at a frequency of 41.5 Hz. The source is connected across a 25.5-mH inductor. (a) Find the inductive reactance of the circuit. (b) Find the rms current in the circuit. (c) Find the maximum current in the circuit.
An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency...

An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz, 180 ohm resistor, 200mH inductor, and a 900 micro-F capacitor, all wired in series. A) What is inductive reactance of the circuit? B) What is the capacitive reactance of the circuit?C) What is the impedance of the circuit? D)What is RMS current in the circuit?E) If the frequency is adjustable what frequency should you use to maximize the current in the circuit?
An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz

An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz, a 180 Ohm resistor a 200 ml inductor, and a 900 micro-F capacitor, all wired in series. a) What is the inductive reactance of the circuit? b) What is the capacitive reactance of the circuit? c) What is the Impedance of the circuit? d) What is the RMS current in the circuit? e) of the frequency is adjustable, what frequency should you use to maximize the current...

Question 11 1 pts The peak voltage of an AC source is 200. V. What is...

Question 11 1 pts The peak voltage of an AC source is 200. V. What is the rms voltage? O 200 V O 282 V O 141 V O 100V 1 pts Question 12 In the typical household AC voltage of 120 V, calculate the peak voltage: O 240 V O 120 V O 170 V O 85 V 1 pts Question 13 In an AC series circuit the inductive reactance is 50 and the frequency is 100 Hz. What...
An AC source has an output rms voltage of 78 V at a frequency of 80...

An AC source has an output rms voltage of 78 V at a frequency of 80 Hz. If the source is connected across a 25mH inductor, what are (a) the inductive reactance of the circuit, (b) the rms current in the circuit and (c) the maximum current in the circuit?
An AC generator supplies an rms voltage of 115 V at 60.0 Hz. It is connected...

An AC generator supplies an rms voltage of 115 V at 60.0 Hz. It is connected in series with a 0.450 H inductor, a 3.20 μF capacitor and a 396 Ω resistor. What is the impedance of the circuit? 7.69×102 ohm You are correct. Previous Tries What is the rms current through the resistor? 1.50×10-1 A You are correct. Previous Tries What is the average power dissipated in the circuit? Power is only dissipated in a resistor. Thus, you have...

12. A sinusoidal voltage Δv = (75.0 V)sin(120t) is applied to a series RLC circuit with...

12. A sinusoidal voltage Δv = (75.0 V)sin(120t) is applied to a series RLC circuit with L = 20.0 mH, C = 130.0 μF, and R = 32.0 Ω. (a) What is the impedance of the circuit? Ω (b) What is the maximum current in the circuit? A 11.An AC power source has an rms voltage of 120 V and operates at a frequency of 60.0 Hz. If a purely inductive circuit is made from the power source and a...
