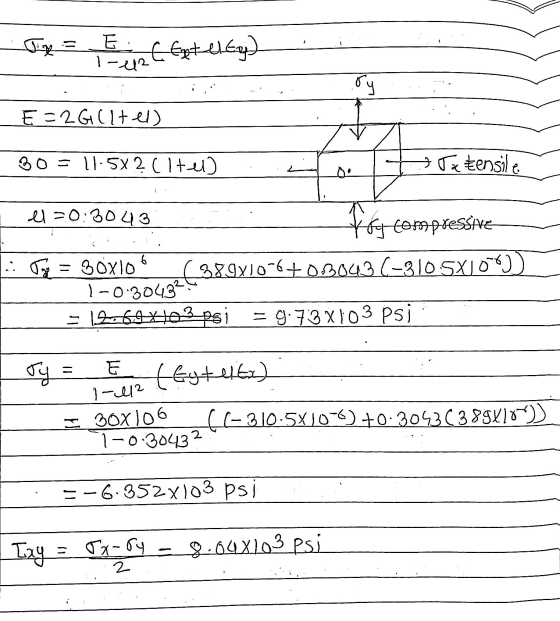

![Jize = C Extelty) 1-42 ry E=2G (tel) 30 = 11:5X2(lter] Je Eensile 6 el=0:3043 For compressive .: Jose = 30x10 (389710-6+03043](http://img.homeworklib.com/questions/859b7f60-068d-11eb-bc3b-45a26b276388.png?x-oss-process=image/resize,w_560)
Add Answer to:
The 60 deg strain rosette is mounted on a steel plate (E = 30e6 psi, G...
Problem 1: The 60 deg strain rosette is mounted on a steel plate (E = 30e6...

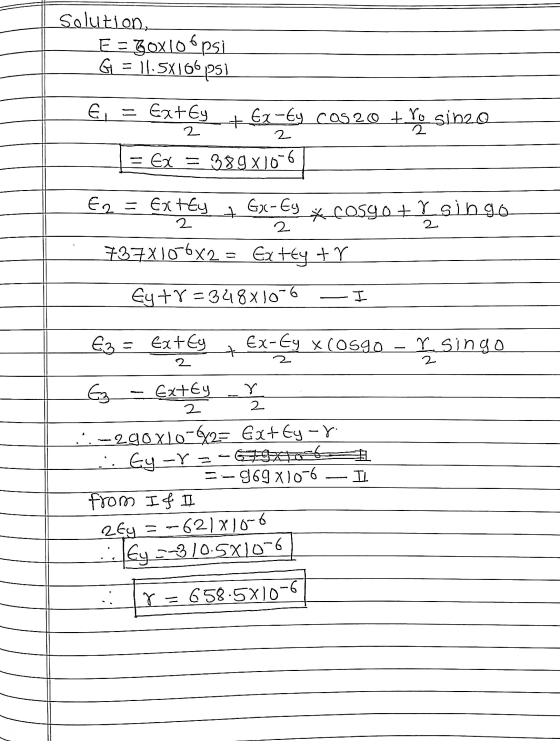

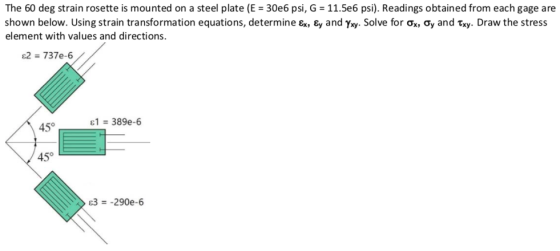

Problem 1: The 60 deg strain rosette is mounted on a steel plate (E = 30e6 psi, G = 11.5e6 psi). Readings obtained from each gage are shown below. Using strain transformation equations, determine Ex, Ey and Yxy. Solve for Ox, Oy and Txy. Draw the stress element with values and directions. €2 = 737e-6 £1 = 389e-6 45° 45° £3 = -290e-6
its 45 deg rosette.Not 60 degree Problem 1: The 60 deg strain rosette is mounted on...
its 45 deg rosette.Not 60 degree
Problem 1: The 60 deg strain rosette is mounted on a steel plate (E = 30e6 psi, G = 11.5e6 psi). Readings obtained from each gage are shown below. Using strain transformation equations, determine Ex, Ey and Yxy. Solve for Ox, Oy and Txy. Draw the stress element with values and directions. €2 = 737e-6 £1 = 389e-6 45° 45° £3 = -290e-6
please show all work clearly. Thank you The 60 deg strain rosette is mounted on a...
please show all work clearly. Thank you
The 60 deg strain rosette is mounted on a steel plate (E = 30e6 psi, G = 11.5e6 psi). Readings obtained from each gage are shown below. Using strain transformation equations, determine Ex, Ey and Yxy. Solve for Ox, Oy and Txy. Draw the stress element with values and directions. €2 = 737e-6 £1 = 389e-6 45° 45° €3 = -290e-6
please show all work clearly. **the deg is 45, NOT 60** The 60 deg strain rosette...
please show all work clearly. **the deg is 45, NOT 60**
The 60 deg strain rosette is mounted on a steel plate (E = 30e6 psi, G = 11.5e6 psi). Readings obtained from each gage are shown below. Using strain transformation equations, determine Ex, Ey and Yxy. Solve for Ox, Oy and Txy. Draw the stress element with values and directions. €2 = 737e-6 £1 = 389e-6 45° 45° €3 = -290e-6
PROBLEM 1: The 45° strain rosette is mounted on the link of the backhoe. The following...
PROBLEM 1: The 45° strain rosette is mounted on the link of the backhoe. The following readings are obtained from each gauge 650[10). = -300(10) = 480(10"). Determine principal stresses on the link if it is made from steel with modulus of elasticity E - 200 GPa and Poisson's ratio v 0.3. (30p) A 2 Strain Rosettes Transformation equations (45°configuration) Ex = {a Ey = {c Yxy = 2ęp – (@a+ ac) Transformation equations (60°configuration) Ex = {a Ey =...
1. A strain gage rosette is an electromechanical device that can measure relative surface elongation on...
1. A strain gage rosette is an electromechanical device that can measure relative surface elongation on three directions. Bonding such a device to the surface of a structure allows determination of normal strain along the gage arms. Such a rosette is mounted on the surface of a stress-free elastic solid as shown at the right. Upon loading, the three gage readings are 30 a30 Ea-300 x 10-6, ε,-400 x 10-6, ε.-100 x 10-6 Assuming the material is steel with E-207...
Question 2 I (a) Using a 459 strain gauge rosette placed on a mild steel structure,...
Question 2 I (a) Using a 459 strain gauge rosette placed on a mild steel structure, the following strains were established from the measurements taken:£x = 75x10", Eyy =-115x10-6 = 210 10-6 and Yxy yy (i) Determine the corresponding normal stresses Ox and and shear stress txy. For mild steel, use Young's modulus E= 205 GPa , Poisson's ratio v=0.3 and shear modulus G = 78.8 GPa. [6 marks] (ii) Using the values obtained in (i), determine the principal stresses...
A delta strain rosette was mounted on a thin-walled steel cylinder subjected to internal pressure. At...
A delta strain rosette was mounted on a thin-walled steel cylinder subjected to internal pressure. At a particular pressure the gauges give the following readings: e a = 350 x 10-6 ( along the x-axis, 00 ), e b = - 100 x 10-6 ( 600 ) and e c = -100 x 10-6 ( at 1200) Assume E = 200 GPa , n = 0.3. The resulting principal stresses are:
5-13. A rectangular rosette is attached to a steel plate having E 30 106 psi and v-03. The strain measurements are: (a) ε 500 μ¡n./in., ε.-300 μ¡n./in., and -100 μίη./in. (b) ε.-305 μ¡n./in., ε.-7...
5-13. A rectangular rosette is attached to a steel plate having E 30 106 psi and v-03. The strain measurements are: (a) ε 500 μ¡n./in., ε.-300 μ¡n./in., and -100 μίη./in. (b) ε.-305 μ¡n./in., ε.-75 μ¡n./in., and ε.-150 μ¡n./in. Calculate the prin- cipal strains and stresses and the maximum shear stress. Locate the axis of the principal stress.
5-13. A rectangular rosette is attached to a steel plate having E 30 106 psi and v-03. The strain measurements are: (a) ε...
Problem 1: The 60 deg strain rosette is mounted on a steel plate (E = 30e6 psi, G = 11.5e6 psi). Readings obtained from each gage are shown below. Using strain transformation equations, determine Ex, Ey and Yxy. Solve for Ox, Oy and Txy. Draw the stress element with values and directions. €2 = 737e-6 £1 = 389e-6 45° 45° £3 = -290e-6
its 45 deg rosette.Not 60 degree
Problem 1: The 60 deg strain rosette is mounted on a steel plate (E = 30e6 psi, G = 11.5e6 psi). Readings obtained from each gage are shown below. Using strain transformation equations, determine Ex, Ey and Yxy. Solve for Ox, Oy and Txy. Draw the stress element with values and directions. €2 = 737e-6 £1 = 389e-6 45° 45° £3 = -290e-6
please show all work clearly. Thank you
The 60 deg strain rosette is mounted on a steel plate (E = 30e6 psi, G = 11.5e6 psi). Readings obtained from each gage are shown below. Using strain transformation equations, determine Ex, Ey and Yxy. Solve for Ox, Oy and Txy. Draw the stress element with values and directions. €2 = 737e-6 £1 = 389e-6 45° 45° €3 = -290e-6
please show all work clearly. **the deg is 45, NOT 60**
The 60 deg strain rosette is mounted on a steel plate (E = 30e6 psi, G = 11.5e6 psi). Readings obtained from each gage are shown below. Using strain transformation equations, determine Ex, Ey and Yxy. Solve for Ox, Oy and Txy. Draw the stress element with values and directions. €2 = 737e-6 £1 = 389e-6 45° 45° €3 = -290e-6
PROBLEM 1: The 45° strain rosette is mounted on the link of the backhoe. The following readings are obtained from each gauge 650[10). = -300(10) = 480(10"). Determine principal stresses on the link if it is made from steel with modulus of elasticity E - 200 GPa and Poisson's ratio v 0.3. (30p) A 2 Strain Rosettes Transformation equations (45°configuration) Ex = {a Ey = {c Yxy = 2ęp – (@a+ ac) Transformation equations (60°configuration) Ex = {a Ey =...
1. A strain gage rosette is an electromechanical device that can measure relative surface elongation on three directions. Bonding such a device to the surface of a structure allows determination of normal strain along the gage arms. Such a rosette is mounted on the surface of a stress-free elastic solid as shown at the right. Upon loading, the three gage readings are 30 a30 Ea-300 x 10-6, ε,-400 x 10-6, ε.-100 x 10-6 Assuming the material is steel with E-207...
Question 2 I (a) Using a 459 strain gauge rosette placed on a mild steel structure, the following strains were established from the measurements taken:£x = 75x10", Eyy =-115x10-6 = 210 10-6 and Yxy yy (i) Determine the corresponding normal stresses Ox and and shear stress txy. For mild steel, use Young's modulus E= 205 GPa , Poisson's ratio v=0.3 and shear modulus G = 78.8 GPa. [6 marks] (ii) Using the values obtained in (i), determine the principal stresses...
5-13. A rectangular rosette is attached to a steel plate having E 30 106 psi and v-03. The strain measurements are: (a) ε 500 μ¡n./in., ε.-300 μ¡n./in., and -100 μίη./in. (b) ε.-305 μ¡n./in., ε.-75 μ¡n./in., and ε.-150 μ¡n./in. Calculate the prin- cipal strains and stresses and the maximum shear stress. Locate the axis of the principal stress.
5-13. A rectangular rosette is attached to a steel plate having E 30 106 psi and v-03. The strain measurements are: (a) ε...
