Add Answer to:
1. Assume that input D in the below is set to “0” and cannot change. Show...
Assume that input D in the below is set to "0" and cannot change. Show the...

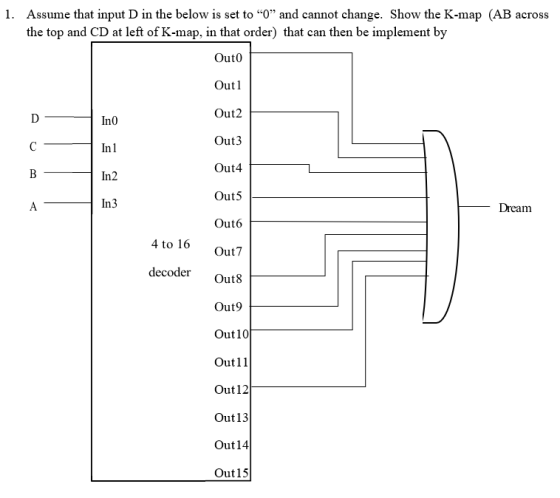

Assume that input D in the below is set to "0" and cannot change. Show the K-map (AB across the top and CD at left of K-map, in that order) that can then be implement by Outo Out1 D Out2 Ino Out3 с In1 Out4 B In2 Out5 A In3 Dream Out6 4 to 16 decoder Out7 Out8 Out9 Out10 Out11 Out12 Out13 Out14 Out 15

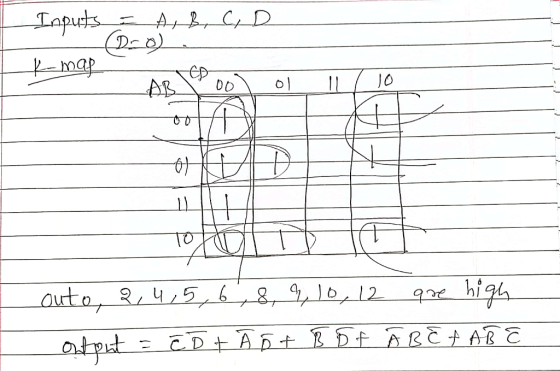

Assume that input D in the below is set to "O" and cannot change. Show the...
Assume that input D in the below is set to "O" and cannot change. Show the K-map (AB across the top and CD at left of K-map, in that order) that can then be implement by Outo Out1 Out2 D Ino Out3 с In1 Out4 B In2 Out5 A In3 Dream Out6 4 to 16 Out decoder Outs Out9 Out10 Out11 Out12 Out13 Out14 Out15
1. Assume that input D in the below is set to "O" and cannot change. Show...
1. Assume that input D in the below is set to "O" and cannot change. Show the K-map (AB across the top and CD at left of K-map, in that order) that can then be implement by Outo Out1 Out2 D Ino Out3 с Inl Out4 B In2 Outs А In 3 Dream Out6 4 to 16 Out7 decoder Out8 Out9 Out101 Outl 1 Out12) Out131 Out14 Outls
Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B ,C and D using CMOS transistors. When the binary input is 0, 1, 2,3,4,5,6 or 7 the binary output is fi...
Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B ,C and D using CMOS transistors. When the binary input is 0, 1, 2,3,4,5,6 or 7 the binary output is five greater than the input. When the binary input is 8,,10,11,12,13,14 or 15 the binary output is seven less than the input. for question (a) find the troth table for the inputs (ABCD) then implement using K-map to find the equations to...
Digital Logic Fundamentals. Need help with this assignment!!! Want to make sure I'm on the right ...
Digital Logic Fundamentals. Need help with this
assignment!!!
Want to make sure I'm on the right track with the truth table
and K-MAPS.
Also I'd like to know how to design the LOGISIM circuit.
Thank you.
igital Logic Fundamentals An Excess-3 code exists for the following reason: The primary advantage of excess-3 coding over non-biased coding is that a decimal number can be nines' complemented (for subtraction) as easily as a binary number can be ones' complemented: just by inverting...
NYIT. Digital Logic Fundamentals, Dr. S. Ben-Avi. Spring 2019. An Excess-3 code exists for the fo...
I
NEED THE LOGISIM CIRCUIT DESIGN!
NYIT. Digital Logic Fundamentals, Dr. S. Ben-Avi. Spring 2019. An Excess-3 code exists for the following reason: The primary advantage of excess-3 coding over non-biased co ding is that a decimal number can be nines' complemented (for subtraction) as easily as a binary number can be ones' complemented: just by inverting all bits it's useful We shall be discussing complement systems again later in the course - just know that this o Design logic...
#include <iostream> #include <iomanip> #include <vector> using namespace std; Part 1. [30 points] In this part,...
#include <iostream>
#include <iomanip>
#include <vector>
using namespace std;
Part 1. [30 points] In this part, your program
loads a vending machine serving cold drinks. You start with many
foods, some are drinks. Your code loads a vending machine from
foods, or, it uses water as a default drink. Create class Drink,
make an array of drinks, load it and display it.
Part 1 steps:
[5 points] Create a class called
Drink that contains information about a single
drink. Provide...
Assume that input D in the below is set to "0" and cannot change. Show the K-map (AB across the top and CD at left of K-map, in that order) that can then be implement by Outo Out1 D Out2 Ino Out3 с In1 Out4 B In2 Out5 A In3 Dream Out6 4 to 16 decoder Out7 Out8 Out9 Out10 Out11 Out12 Out13 Out14 Out 15
Assume that input D in the below is set to "O" and cannot change. Show the K-map (AB across the top and CD at left of K-map, in that order) that can then be implement by Outo Out1 Out2 D Ino Out3 с In1 Out4 B In2 Out5 A In3 Dream Out6 4 to 16 Out decoder Outs Out9 Out10 Out11 Out12 Out13 Out14 Out15
1. Assume that input D in the below is set to "O" and cannot change. Show the K-map (AB across the top and CD at left of K-map, in that order) that can then be implement by Outo Out1 Out2 D Ino Out3 с Inl Out4 B In2 Outs А In 3 Dream Out6 4 to 16 Out7 decoder Out8 Out9 Out101 Outl 1 Out12) Out131 Out14 Outls
Digital Logic Fundamentals. Need help with this
assignment!!!
Want to make sure I'm on the right track with the truth table
and K-MAPS.
Also I'd like to know how to design the LOGISIM circuit.
Thank you.
igital Logic Fundamentals An Excess-3 code exists for the following reason: The primary advantage of excess-3 coding over non-biased coding is that a decimal number can be nines' complemented (for subtraction) as easily as a binary number can be ones' complemented: just by inverting...
I
NEED THE LOGISIM CIRCUIT DESIGN!
NYIT. Digital Logic Fundamentals, Dr. S. Ben-Avi. Spring 2019. An Excess-3 code exists for the following reason: The primary advantage of excess-3 coding over non-biased co ding is that a decimal number can be nines' complemented (for subtraction) as easily as a binary number can be ones' complemented: just by inverting all bits it's useful We shall be discussing complement systems again later in the course - just know that this o Design logic...
#include <iostream>
#include <iomanip>
#include <vector>
using namespace std;
Part 1. [30 points] In this part, your program
loads a vending machine serving cold drinks. You start with many
foods, some are drinks. Your code loads a vending machine from
foods, or, it uses water as a default drink. Create class Drink,
make an array of drinks, load it and display it.
Part 1 steps:
[5 points] Create a class called
Drink that contains information about a single
drink. Provide...
