4. Simplify the following circuit to an equivalent circuit with one resistor and one voltage source....

Question

Question

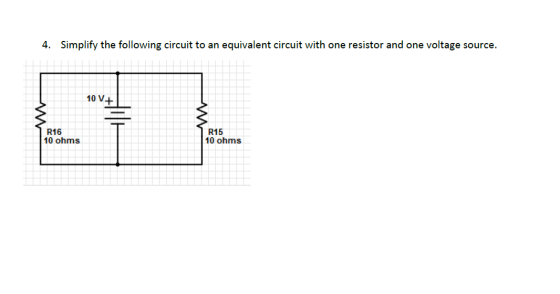

4. Simplify the following circuit to an equivalent circuit with one resistor and one voltage source. 10 V+ R16 10 ohms R15 10

engineering Electrical-Engineering

Answer 1

Answer #1

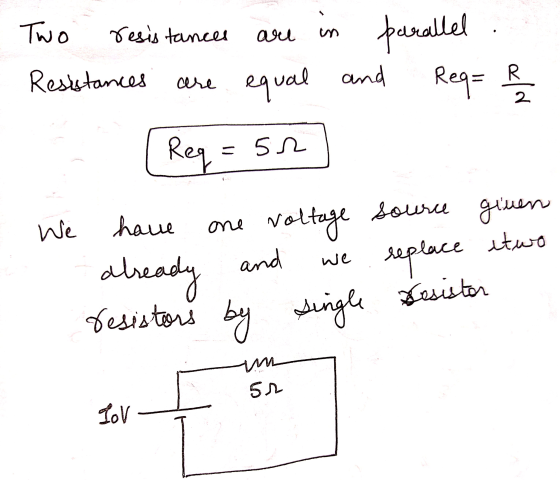

Two in resistances are parallel Req= Resistances are equal and R 2 = 5n Source given We have one Reg voltage ready resistors

Answer 2
