In the circuit shown, all of the resistors have the same value. If a current of...

Question

Question

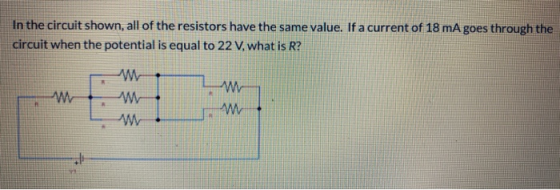

In the circuit shown, all of the resistors have the same value. If a current of 18 mA goes through the circuit when the poten

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

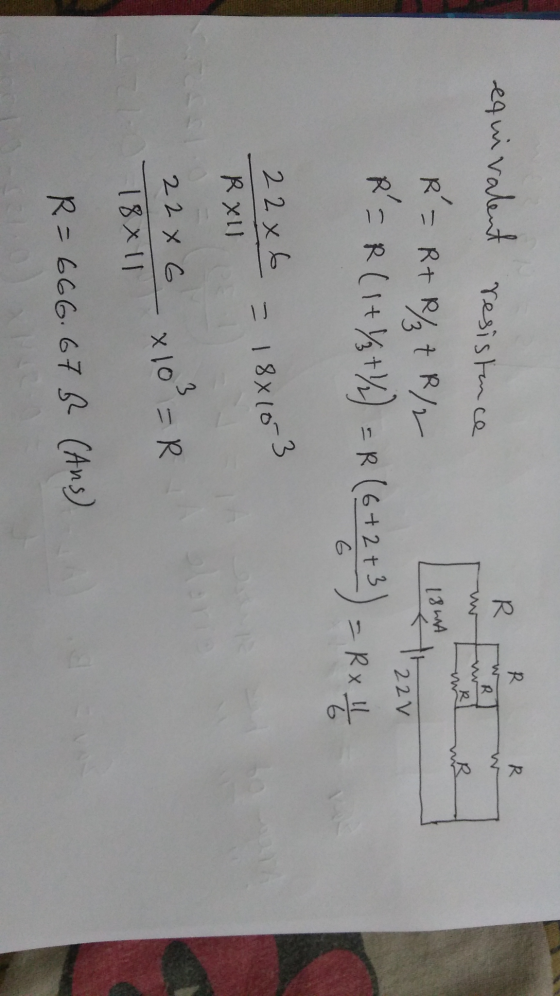

R R R w R R WR equivalent resistance R = R+ / 7 P/2 R= R(1+Yst/2) = R (6 +2+3) = Rx 18mA 22 V 22 x 6 Roll = 18810 3 3 22 x 6

Add a comment

Answer 2

Similar Homework Help Questions

In the circuit shown, all of the resistors have the same value. If a current of...

In the circuit shown, all of the resistors have the same value. If a current of 18 mA goes through the circuit when the potential is equal to 22 V, what is R?
Question 10 6.25 pts In the circuit shown, all of the resistors have the same value....

Question 10 6.25 pts In the circuit shown, all of the resistors have the same value. If a current of 18 mA goes through the circuit when the potential is equal to 22 V, what is R? R R W R R R ㅔ V1
A circuit is constructed with five resistors and one real battery as shown above right. We...

A circuit is constructed with five resistors and one real battery as shown above right. We model. The real battery as an ideal emf V = 12 V in series with an internal resistance r as shown above left. The values for the resistors are: R = R3 = 40 N, R4 = Rs = 80 and R2 = 142 N. The measured voltage across the terminals of the batery is Vbattery = 11.41 V. I R R R R4...

Consider the circuit shown in the figure(Figure 1). Suppose the four resistors in this circuit have...

Consider the circuit shown in the figure(Figure 1). Suppose the four resistors in this circuit have the values R1 = 12 12, R2 = 7.0 N, R3 = 7.9 2 , and R4 = 12 12, and that the emf of the battery is € = 18 V You may want to review (Pages 748 - 751) Part A Find the current through each resistor using the rules for series and parallel resistors. Express vour answers using two significant figures...
5) A circuit has two 9 V batteries and several resistors as shown. All resistors have...

5) A circuit has two 9 V batteries and several resistors as shown. All resistors have the same resistance. If the currents on resistors 2 and 3 are 1.65 A and 1.5 A, respectively, what is the value of the unknown resistance? [10 pts) winter an o ilar
Consider the following circuit of resistors: VA o Volts All the resistors have the same resistanc...

this program need on Spyder of python Consider the following circuit of resistors: VA o Volts All the resistors have the same resistance R. The power rail at the top is at voltage V+ What are the other four voltages, Vi to V4? 5V. To answer this question we use Ohm's law and the Kirchhoff current law, which says that the total net current flow out of (or into) any junction in a circuit must be zero. Thus for the...

Consider the circuit shown in (Figure 1) , where all resistors have the same resistance R....

Consider the circuit shown in (Figure 1) , where all resistors have the same resistance R. At t=0, with the capacitor C uncharged, the switch is closed.At t=0, the three currents can be determined by analyzing a simpler, but equivalent, circuit. Identify this simpler circuit and use it to find the values of I1 , I2, and I3 at t=0. Consider the circuit shown in (Figure 1) , where all resistors have the same resistance R. At t=0, with the...
Three resistors are connected in the circuit shown below. The emf of the battery is 12.0...

Three resistors are connected in the circuit shown below. The emf of the battery is 12.0 V and the resistors have the following values: R_1 = cR, and R_2 = R/c, where R = 29.0 Ohm and c is a positive number between 0 and infinity. R_3 is an unknown constant value. As the value of c approaches zero, the current through the battery approaches 0.200 A. What is the resistance of R_3? What does the value of the current...
Consider the circuit shown in the figure(Figure 1). Suppose thefour resistors in this circuit have...

Consider the circuit shown in the figure(Figure 1). Suppose the four resistors in this circuit have the values R1 = 10 Ω , R2 = 6.6 Ω , R3 = 6.1 Ω , and R4 = 14 Ω , and that the emf of the battery is E = 18 V .Find the current through each resistor using the rules for series and parallel resistors.Find the current through each resistor using Kirchhoff's rules.

Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A...

Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
