Question

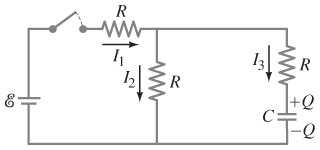

Consider the circuit shown in (Figure 1) , where all resistors have the same resistance R. At t=0, with the capacitor C uncharged, the switch is closed.At

t=0, the three currents can be determined by analyzing a simpler, but equivalent, circuit. Identify this simpler circuit and use it to find the values of I1 , I2, and I3 at t=0.no title provided

0 0
Add a comment Improve this question Transcribed image text
Answer #1

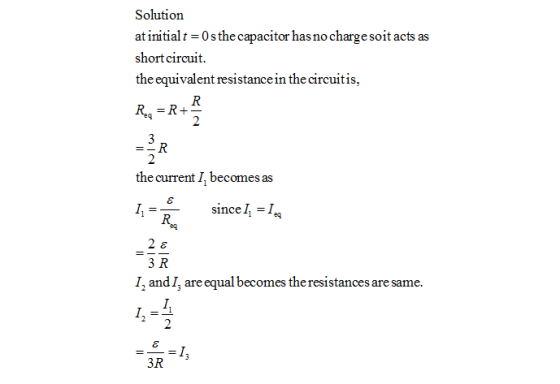

Solution at initialt 0s the capacitor has no chargesoit acts as short circuit the equivalent resistancein the circuitis, the

Add a comment
