Four 1.50-V cells are connected in series to a 12.0-Ω lightbulb. If the resulting current is...

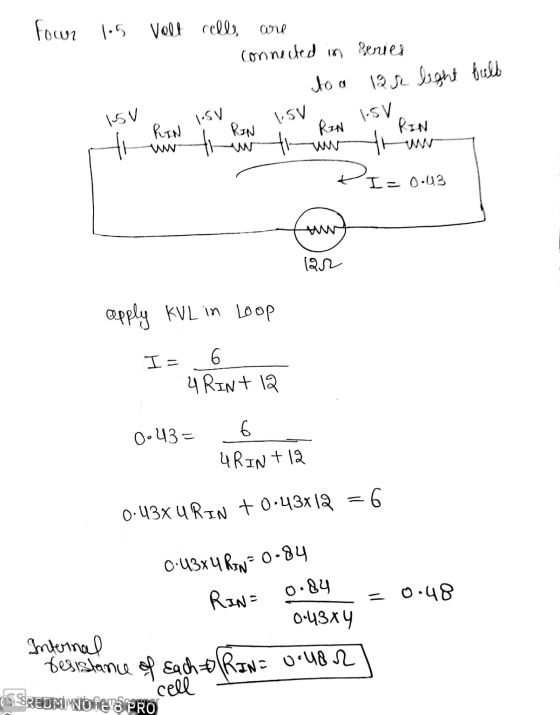

Four 1.50-V cells are connected in series to a 12.0-Ω lightbulb. If the resulting current is 0.43 A, what is the internal resistance of each cell, assuming they are identical and neglecting the resistance of the wires?
Homework Answers
Add Answer to:
Four 1.50-V cells are connected in series to a 12.0-Ω lightbulb.
If the resulting current is...
1) Four 1.50-V cells are connected in series to a 12.0-Ω lightbulb. Part A If the...
1) Four 1.50-V cells are connected in series to a 12.0-Ω lightbulb. Part A If the resulting current is 0.41 A, what is the internal resistance of each cell, assuming they are identical and neglecting the resistance of the wires? Express your answer to two significant figures and include the appropriate units. r =
Four 1.50-V cells are connected in series to a 12.0-22 lightbulb. Part A If the resulting...
Four 1.50-V cells are connected in series to a 12.0-22 lightbulb. Part A If the resulting current is 0.39 A, what is the internal resistance of each cell, assuming they are identical and neglecting the resistance of the wires? Express your answer to two significant figures and include the appropriate units. НА ? Value Omega Submit Request Answer Next > Provide Feedback
Six 1.50 V batteries are connected in series, with the positive terminal of one battery connected...
Six 1.50 V batteries are connected in series, with the positive terminal of one battery connected to the negative terminal of the next. What is the emf of the combination? If the internal resistance of each battery is 2.00 Ω, find the terminal voltage when there is a current of 200 mA in the circuit.
A 6.00 Ω resistor and a 7.17 Ω resistor are connected in series with a 12.0...
A 6.00 Ω resistor and a 7.17 Ω resistor are connected in series with a 12.0 V battery. Assuming the battery contributes no resistance to the circuit, find the power (in Watt) dissipated through the 6.00 Ω resistor.
A 26 Ω bulb is connected across the terminals of a 12.0 V battery having 3.1...
A 26 Ω bulb is connected across the terminals of a 12.0 V battery having 3.1 Ω of internal resistance. What percentage of the power of the battery is dissipated across the internal resistance and hence is not available to the bulb? (Give your answer in decimal and in % format
A 12.0-V battery is connected into a series circuit containing a 13.0-Ω resistor and a 3.00-H...
A 12.0-V battery is connected into a series circuit containing a 13.0-Ω resistor and a 3.00-H inductor. (a) In what time interval will the current reach 50.0% of its final value? (b) In what time interval will the current reach 90.0% of its final value?
A 50-Ω resistor and a 28-Ω resistor are connected in series to a 12-V battery of...
A 50-Ω resistor and a 28-Ω resistor are connected in series to a 12-V battery of negligible resistance. What is the current flowing through each resistor?
A 28.0-Ω resistor, a 12.0-µF capacitor, and a 17.0-mH inductor are connected in series with a...
A 28.0-Ω resistor, a 12.0-µF capacitor, and a 17.0-mH inductor are connected in series with a 150-V generator. (a) At what frequency is the current a maximum? (b) What is the maximum value of the rms current?
Three resistors in a series connected to a battery A 2.90 Ω resistor, a 5.79 Ω...
Three resistors in a series connected to a battery A 2.90 Ω resistor, a 5.79 Ω resistor, and a 9.96 Ω resistor are connected in series with a 15.0 V battery. What is the equivalent resistance? What is the current in each resistor?
6. A 40.0-W lightbulb is connected to a 220.0-V source. (a) What is the current through...
6. A 40.0-W lightbulb is connected to a 220.0-V source. (a) What is the current through the bulb? A (b) What is the internal resistance of the bulb? ? If you could provide a step by step solution, that would be great.
Four 1.50-V cells are connected in series to a 12.0-22 lightbulb. Part A If the resulting current is 0.39 A, what is the internal resistance of each cell, assuming they are identical and neglecting the resistance of the wires? Express your answer to two significant figures and include the appropriate units. НА ? Value Omega Submit Request Answer Next > Provide Feedback
