For the bent blue wire ABCDE shown in the figure, determine the coordinates of the centroid...

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

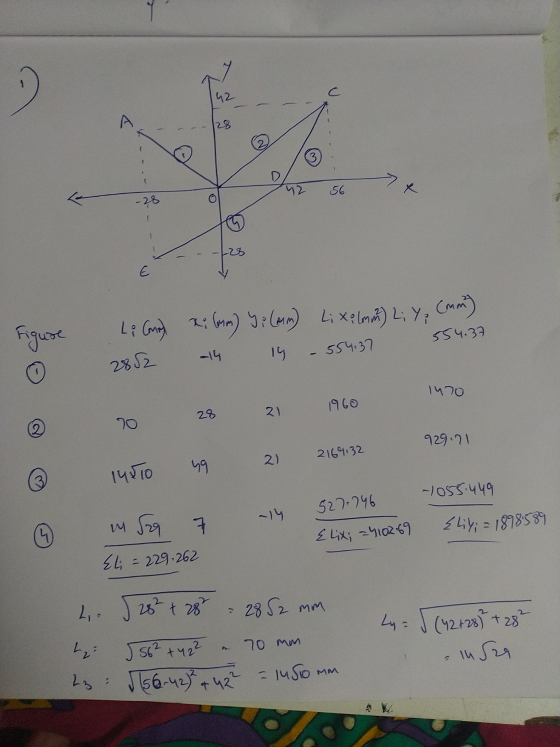

1)(17.8952,8.2813)mm

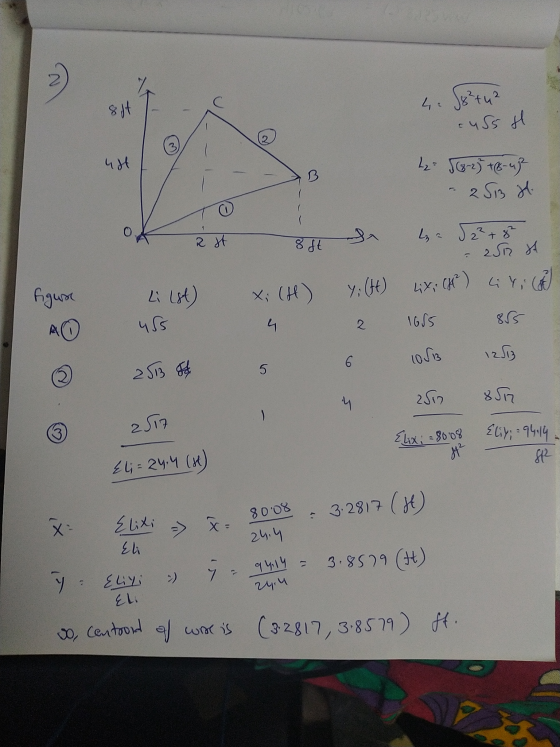

2)(3.2817,3.8579)ft

Answer 2
