For the bent blue wire ABCDE shown in the figure

Question

Question

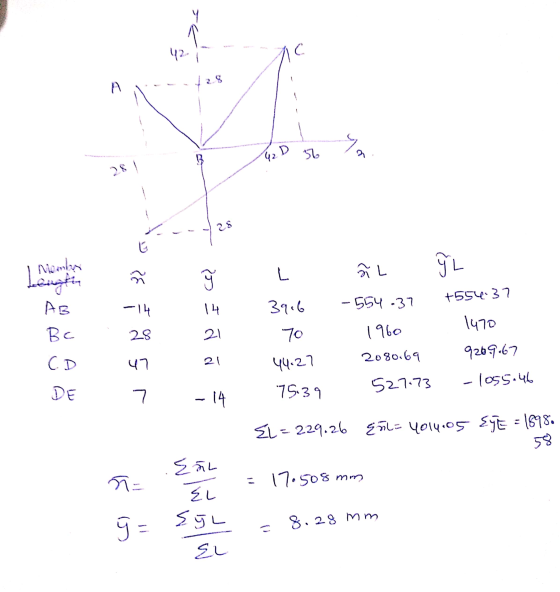

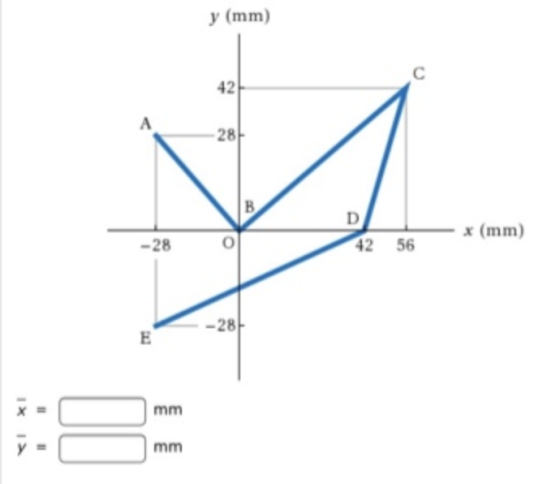

For the bent blue wire ABCDE shown in the figure, determine the coordinates of the centroid (x̅, ȳ) in millimeters.

engineering Civil-Engineering

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

For the bent blue wire ABCDE shown in the figure, determine the coordinates of the centroid...

For the bent blue wire ABCDE shown in the figure, determine the coordinates of the centroid G.) in millimeters. y (mm) 42 28 D x (mm) -28 o 42 56 -28 E * mm mm Determine the coordinates of the centroid of the bent wire shown in feet. Corner A lies at the origin of coordinates. с 8.0 ft 4.0 ft B А 0 8.0 ft 2.0 ft ft ft
For the bent blue wire ABCDE shown in the figure, determine the coordinates of the centroid...

For the bent blue wire ABCDE shown in the figure, determine the coordinates of the centroid (7) in millimeters. y (mm) 54 А -36 B D x (mm) O -36 54 72 -36 E = 22.4 x mm ă у = 10.8 mm
