The homogeneous wire ABC is bent into a semicircular arc and a straight section as shown and is...
The homogeneous wire ABC is bent into a semicircular arc and a straight section as shown and is attached to a hingeat A. Determine the value of θ for which the wire is in equilibrium for the indicated position |
Homework Answers

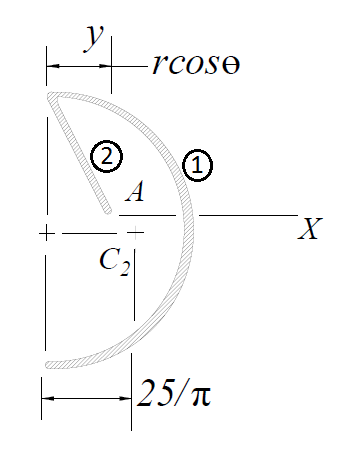

Draw the schematic diagram of homogeneous wire dividing the wire into two segments.
Determine the position of centroid of segment 1 which is a straight line from A.
Here,
is length of the wire in segment 1 and
is the angle of inclination of the wire with the horizontal.
Determine the position of centroid of segment 2 which is a semicircular arc from A.
Determine the angle of inclination by using centroid formula at A.
Substitute
for
,
for
,
for
, and
for
.
Therefore, the angle of inclination of the straight wire with the horizontal is
.
Add Answer to:
The homogeneous wire ABC is bent into a semicircular arc and a straight section as shown and is...
Could someone break down the problem? 3. 5.1The homogeneous wire ABCD is bent as shown and...
Could someone break down the problem?
3. 5.1The homogeneous wire ABCD is bent as shown and is attached to a hinge at C. Determine the eai angle theta for which portion BCD of the wire is horizontal if L = 130mm, and the (x,y) centroid of the object for the solved angle. I C
The bent wire shown Fig. 28-41 lies in a uniform magnetic field. Each straight section is...
The bent wire shown Fig. 28-41 lies in a uniform magnetic field. Each straight section is 1.40 m long and makes an angle of θ=51.10o with the x axis, and the wire carries a current of 2.75 A. What is the net magnetic force on the wire in unit-vector notation if the magnetic field is given by (a) 5.0 k T? (b) 4.31i I got 12.08 but it says it is incorrect.
The homogeneous wire ABCD is bent as shown and is supported by a pin at B....
The homogeneous wire ABCD is bent as shown and is supported by a pin at B. Determine the length n for which portion BC of the wire is horizontal m = 25 cm r = 20 cm 0 = 55° Hint: 25 b. 29.25 cm a 29.85 cm 30.05 cm 29,45 cm e 29.05 cm of 29.65 cm
A long wire is bent to form a 90 degree angle using a circular arc with...
A long wire is bent to form a 90 degree angle using a circular
arc with a radius r=2cm. The wire carries a current I=0.5A as
shown. Point P is located in the plane of the wire at the center of
the circular arc.
2. A long wire is bent to form a 90° angle using a circular arc with a radius R 2 cm. The wire carries a current I = 0.5 A as shown. Point P is located...
The bent wire shown in the figure lies in a uniform magnetic field. Each straight section is 2.0 m long and makes an angle of θ = 60° with the x axis, and the wire carries a current of 2.0 A.
The bent wire shown in the figure lies in a uniform magnetic field. Each straight section is 2.0 m long and makes an angle of θ = 60° with the x axis, and the wire carries a current of 2.0 A. What is the magnitude of the magnetic force on the wire in unit-vector notation if the magnetic field is given by (a) 4.0 k T and (b) 4.0 iT?
1. Locate the center of gravity of the homogeneous rod bent in the form of a...
1. Locate the center of gravity of the homogeneous rod bent in the form of a semicircular arc. The rod has a weight per unit length of 3 N/m. Also, determine the horizontal reaction at the smooth support B and the x and y components of reaction at the pin A.
The bent wire shown in the figure lies in a uniform magnetic field. Each straight section is 2.78 m long and makes an angle of θ=42.1° with the x axis, and the wire carries a current of 1.21 A.
Chapter 28, Problem 042 The bent wire shown in the figure lies in a uniform magnetic field. Each straight section is 2.78 m long and makes an angle of θ=42.1° with the x axis, and the wire carries a current of 1.21 A. What is the net magnetic force on the wire in unit-vector notation if the magnetic field is given by (a)3.91 kT? (b)3.75 İ T?
1. (25 points) The homogeneous wire ABCD is bent as shown and is supported by a pin at B. Knowing that 30, determine the length I for which portion CD of the wire is horizontal 150 mm 150 mm 1....
1. (25 points) The homogeneous wire ABCD is bent as shown and is supported by a pin at B. Knowing that 30, determine the length I for which portion CD of the wire is horizontal 150 mm 150 mm
1. (25 points) The homogeneous wire ABCD is bent as shown and is supported by a pin at B. Knowing that 30, determine the length I for which portion CD of the wire is horizontal 150 mm 150 mm
A thin, homogeneous wire is bent to form the perimeter of the figure indicated. Locate the...
A thin, homogeneous wire is bent to form the perimeter of the figure indicated. Locate the center of gravity of the wire figure thus formed 82 mm 32 mm 52mm
Could someone break down the problem?
3. 5.1The homogeneous wire ABCD is bent as shown and is attached to a hinge at C. Determine the eai angle theta for which portion BCD of the wire is horizontal if L = 130mm, and the (x,y) centroid of the object for the solved angle. I C
The homogeneous wire ABCD is bent as shown and is supported by a pin at B. Determine the length n for which portion BC of the wire is horizontal m = 25 cm r = 20 cm 0 = 55° Hint: 25 b. 29.25 cm a 29.85 cm 30.05 cm 29,45 cm e 29.05 cm of 29.65 cm
A long wire is bent to form a 90 degree angle using a circular
arc with a radius r=2cm. The wire carries a current I=0.5A as
shown. Point P is located in the plane of the wire at the center of
the circular arc.
2. A long wire is bent to form a 90° angle using a circular arc with a radius R 2 cm. The wire carries a current I = 0.5 A as shown. Point P is located...
1. Locate the center of gravity of the homogeneous rod bent in the form of a semicircular arc. The rod has a weight per unit length of 3 N/m. Also, determine the horizontal reaction at the smooth support B and the x and y components of reaction at the pin A.
1. (25 points) The homogeneous wire ABCD is bent as shown and is supported by a pin at B. Knowing that 30, determine the length I for which portion CD of the wire is horizontal 150 mm 150 mm
1. (25 points) The homogeneous wire ABCD is bent as shown and is supported by a pin at B. Knowing that 30, determine the length I for which portion CD of the wire is horizontal 150 mm 150 mm
A thin, homogeneous wire is bent to form the perimeter of the figure indicated. Locate the center of gravity of the wire figure thus formed 82 mm 32 mm 52mm
