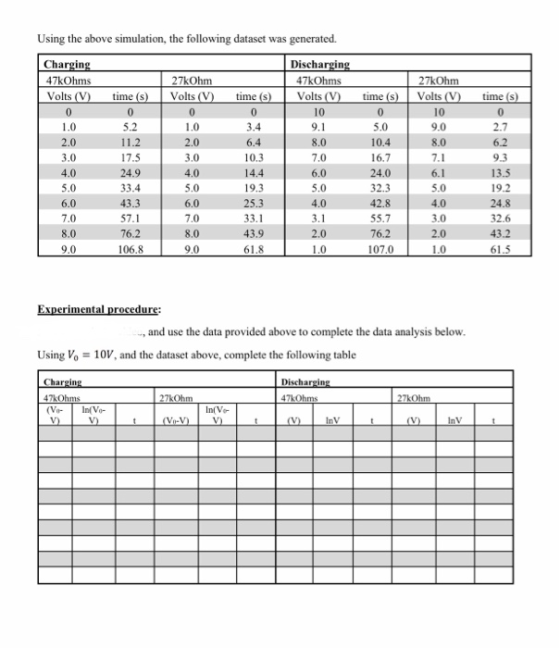

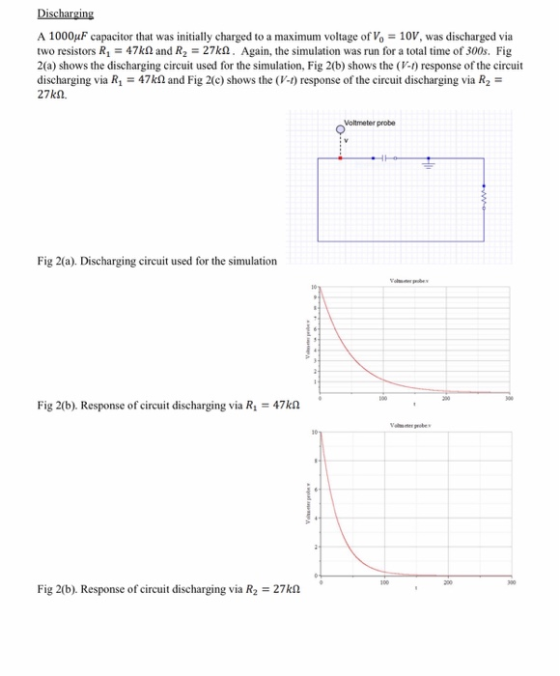

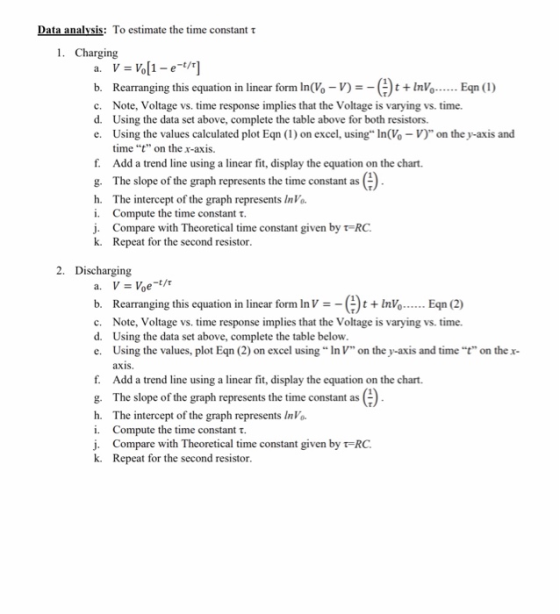

![Data analysis: To estimate the time constant 1. Charging a. V = Vo[1 – e-t/] b. Rearranging this equation in linear form In(V](http://img.homeworklib.com/questions/cfc83660-079c-11eb-aabc-977d12d22fc4.png?x-oss-process=image/resize,w_560)





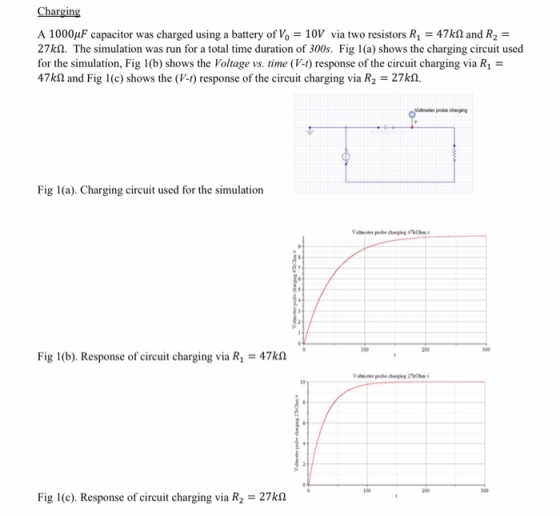

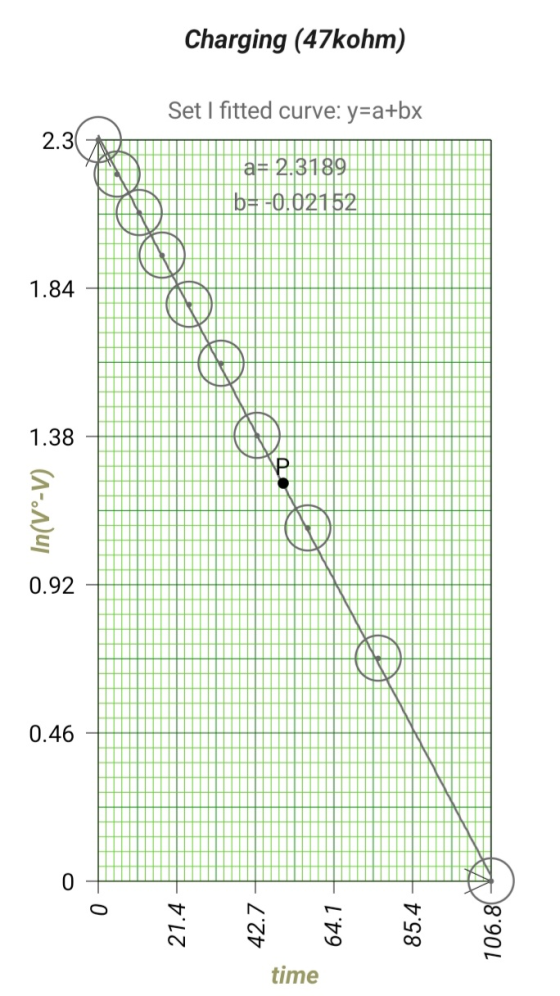

help please, i dont know how to do it Charging A 1000uF capacitor was charged using...
3 Capacitor Discharging Current The capacitor voltage versus time in a discharging series RC circuit, as shown in the Background Information Figure 2, is Vo(t) = V, expl-Roc), +20 (3) where V, is the source voltage in Volts, exp(x) is the exponential functione, Rp is the discharging resistance in Ohms (N), C is the capacitance in Farads. To = Rp is the discharging time constant in seconds. Derive an expression for the capacitor discharging current versus time, .(t), in terms...
Looking at a RC circuit, using resistors and capacitors, calculate the RC time constant for discharging and charging capacitors. The voltage from the power supply is 10V. V = 0.63*V0, V = 0.37*V0
A 47µF capacitor is charged to an initial voltage of 10V. Using your favorite spreadsheet program and Eq. 17, calculate the voltage V (t) across the capacitor discharging through resistances of R = 220kΩ, R = 100kΩ and R = 47kΩ for t = 0s to t = 20s in 1s steps. Plot all three Voltage vs. Time data on a single graph, ensuring that all axes and data sets are properly labeled.
please answer 3.1,3.2 and 3.3.
First 3 photos are for fig1, fig 2 and fig 4.
C1 310k 15F Figure - 1 RC Circuit (Discharging Period) In a source free RC circuit, we assume there was a DC voltage source acoss the capacitor such that Vo(t) = V at t=0, and it was suddenly disconnected at t= 0, shown as Figure 1. Then we can conclude that: • T1 = R is the time constant. Tydenotes the rapidity with which...
Resistor - 100 mega-ohms
capacitor - .47 micro farads
i am having an extremely hard time finding the theoretical
time constant and the experimental ones.
Format Painter 龘· . ▼ 窖三三一嚚 Merge & Center s-90 , Clipboard Font Alignment Number 0 2.81 7.8 15.4 25.76 0 0.5 1 1.5 Charging a Capacitor 38.732.5 2 54.95 74.26 97.67 124.45 156.24 193.33 235.43 284.47 3.5 4 4.5 5.5 50 100 150 Time (s) 6.5 seconds voltage seconds voltage 10 9.5 Discharging a...
Part A Charging of RC Circuit 1) Construct a RC circuit (series) with a capacitor, a resistor, a battery, two switches, and appropriate meters that will enable you to make measurements of the parameters for charging up the capacitor. The placement of the switches allows you to measure both charging and discharging of the RC circuit. See diagram below: 2) Choose a combination of Rand C that will give you a time constant(T) of 20 seconds. T=R*C 20= 100* C=0.2F 3) Set the...
Problem 4 Capacitor Voltage (V) vs Time (s) 140 120 100 e 80 60 40 20 10 Time (s) 20 15 This graph shows the voltage across a discharging capacitor, which follows the rule: 1.) Using the information in the graph, what is the value of Vo? 10 2.) What is the halftime for the voltage decay (the time at which the voltage reaches half its initial value)? Read the value from the graph to the nearest whole number of...
1. Consider the circuit given below in Fig. 9.8. The input is a periodic 1 kHz square wave as given below in Fig. 9.9. R-8.2 k2 C = 10 nF V&O)=0 V CV Fig.9.8 vs(t), volts 100 200 300 400 500 600 700 800 900 1000 1100 1200 Fig.9.9 i. Determine the time constant .( T = ................) ii. Determine the charging behaviour of the output. iii. Determine the discharging behaviour of the output. iv. Plot the output on Fig....
do the part on red please.
1. Validate conclusions regarding the behavior of inductors in transient and steady-state DC network. 2. Verify basic equations for determining the total induction in series, parallel and series-parallel circuits. 3. Use simulation software to understand circuit characteristics. EQUIPMENT REQUIRED: Multisim tool. PROCEDURES: Part 1. Series RL Circuits Use the circuit of Figure 4 (pick RL=202). a. Calculate the steady-state values of IL and VL. IL = 20.4 mA VL = _0.408_V IL=10 / (470...
Lab Procedure: Part 1: Source Free RC Circuit V(t) ilts C3 (R3 21ko 1uF IC=10V a) For the circuit shown above, provide the equation and calculate the following: 1. The source free equation for V(t) for V(O)= 10 volts 2. The equation for it) 3. V(t) and i(t) for t = t (one time constant) b) Now, enter the circuit using Multisim Schematic Capture. c) Simulate using Transient mode with a graphical output and verify graphical results with your calculations....
