Homework Answers

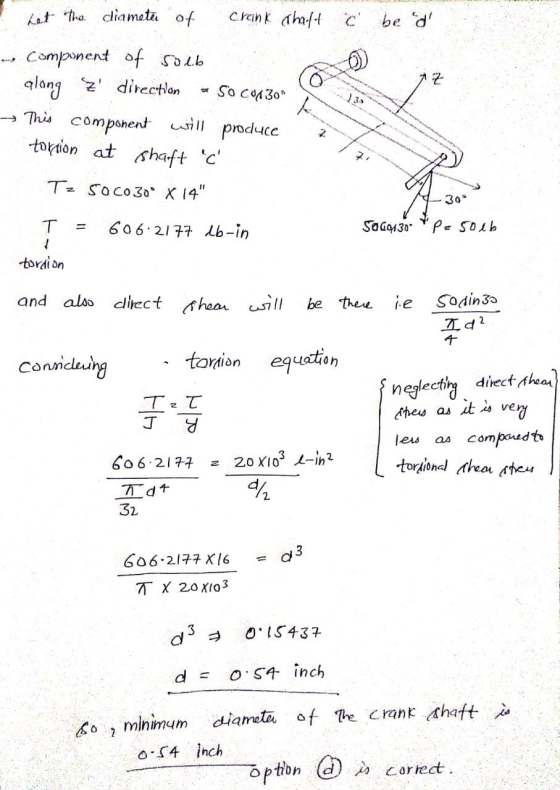

you can now calculate the direct shear it is
coming 110.61 lb/in2 which is very negligble to what we have taken
i.e 20000 lb/in2.
Add Answer to:
B 30° 4 7 in. X 7 in. 3 in. 150 lb Determine the minimum diameter...
B. z 30° A 7 in. X 7 in. 3 in. y 150 lb Determine the...
B. z 30° A 7 in. X 7 in. 3 in. y 150 lb Determine the minimum diameter of the crank shaft at C if the material chosen has an allowable shear stress of 20 ksi.
