B 30° 4 7 in. X 7 in. 3 in. 150 lb Determine the minimum diameter...

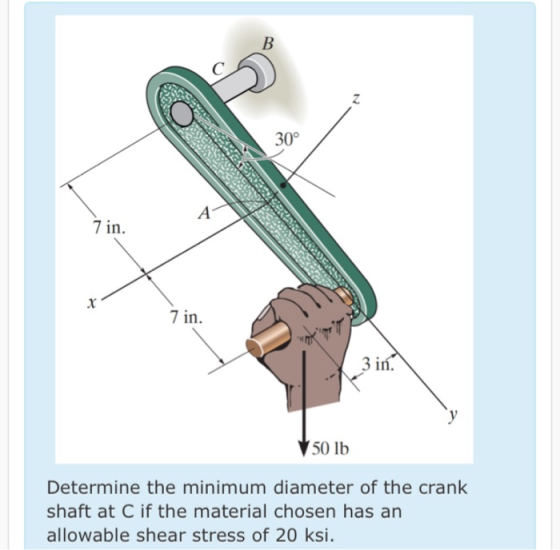

B 30° 4 7 in. X 7 in. 3 in. 150 lb Determine the minimum diameter of the crank shaft at C if the material chosen has an allowable shear stress of 20 ksi. Select one: a. 0.27 in b. None of the available answers X c. 0.02 in d. 0.54 in e. 0.13 in
A vertical load P = 150 kN is applied to a circular solid shaft which in turn is supported by a circular end cap as sho...
A vertical load P = 150 kN is applied to a circular solid shaft which in turn is supported by a circular end cap as shown below. Both members are made of steel with allowable normal stress = 160 MPa, allowable shear stress 100 MPa, and allowable bearing stress 200 MPa. Determine the minimum required diameter of the solid shaft, and the minimum required outer diameter and thickness of the circular end plate. P 150 kN ds d 30 mm...
3. Determine the required diameter of the pin at the double shear joint at B if...
3. Determine the required diameter of the pin at the double shear joint at B if the allowable shear stress for the pin material is 7 ksi and a factor of safety of 2 is required. C. 3 kip 8 ft 6 ft 6 ft
A motor delivers 500 hp to the shaft, which is tubular and has an outer diameter...
A motor delivers 500 hp to the shaft, which is tubular and has an outer diameter of 3 in. The allowable shear stress for the material is tau_allow = 25 ksi. If the shaft is rotating at 100 rad/s, determine its largest inner diameter to the nearest 1/8 in.
6 Section 2. Problem 6 (25 pts. A hollow shaft 36 inches long tranmits 105 HP...
6 Section 2. Problem 6 (25 pts. A hollow shaft 36 inches long tranmits 105 HP at 1250 rpm. The shaft is made out of steel with a modulus of rigidity of 11000 ksi. The shaft has an allowable sear stress of 12 ksi and an allowable angle of twist of 2.5 degreees over the 36 Inche length. The inside diameter of the shaft is 0.8 that of the outside diameter of the shaft. Determine: a) the required inside and...
A shaft is made of a steel alloy having an allowable shear stress of ?(allow) =...
A shaft is made of a steel alloy having an allowable shear
stress of ?(allow) = 12 ?si. If the diameter of the shaft is 1.5
in.,
(a) determine the maximum torque T that can be transmitted.
(b) What would be the maximum torque T’ if a 1-in.-diameter hole
is bored through the shaft?
(c) Sketch the shear-stress distribution along a radial line in
each case.
2. A shaft is made of a steel alloy having an allowable shear stress...
Your answer is partially correct. Try again. A motor supplies 178 ho at 540 rpm to...
Your answer is partially correct. Try again. A motor supplies 178 ho at 540 rpm to flange A of the shaft. Gear B transfers 63hp of power to operating machinery in the factory, and the remaining pow in the factory, and the remaining power in the shaft is transferred by i te s stonuee th gear D. Shafts (1) and (2) are solid aluminum [G 4600 ksi] shafts that have the same diameter and an allowable shear stress of 5.9...
A hollow shaft 36 inches long transmits 110 HP at 1300 rpm. The shaft is made...
A hollow shaft 36 inches long transmits 110 HP at 1300 rpm. The shaft is made out of steel with a modulus of rigidity of 11000 ksi. The shaft has an allowable sear stress of 12 ksi and an allowable angle of twist of 2.5 degrees over the 36 inches length. The inside diameter of the shaft is 0.65 that of the outside diameter of the shaft. Determine: a) the required inside and outside diameter of the shaft based on...
Section 2. Problem 6 (25 pts.) A hollow shaft 36 inches long tranmits 125 HP at...
Section 2. Problem 6 (25 pts.) A hollow shaft 36 inches long tranmits 125 HP at 1100 rpm. The shaft is made out of steel with a modulus of rigidity of 11000 ksi. The shaft has an allowable sear stress of 12 ksi and an allowable angle of twist of 2.5 degreees over the 36 inche length. The inside diameter of the shaft is 0.6 that of the outside diameter of the shaft. Determine: a) the required inside and outside...
2. Ser A motor with 25 hp at 3000 rpm is connected to a 3 ft...
2. Ser A motor with 25 hp at 3000 rpm is connected to a 3 ft long hollow shaft. The outside diameter is 1" and the wall thickness is 1/8", and the material has an allowable shear stress of 10 ks (35 pts) a) Determine the minimum and maximum shear stress in the shaft b) What is the factor of safety against failure? c) Determine the total angle of twist in the shaft. Bac 3. For the 2D member loaded...
B 30° 4 7 in. X 7 in. 3 in. 150 lb Determine the minimum diameter of the crank shaft at C if the material chosen has an allowable shear stress of 20 ksi. Select one: a. 0.27 in b. None of the available answers X c. 0.02 in d. 0.54 in e. 0.13 in
A vertical load P = 150 kN is applied to a circular solid shaft which in turn is supported by a circular end cap as shown below. Both members are made of steel with allowable normal stress = 160 MPa, allowable shear stress 100 MPa, and allowable bearing stress 200 MPa. Determine the minimum required diameter of the solid shaft, and the minimum required outer diameter and thickness of the circular end plate. P 150 kN ds d 30 mm...
3. Determine the required diameter of the pin at the double shear joint at B if the allowable shear stress for the pin material is 7 ksi and a factor of safety of 2 is required. C. 3 kip 8 ft 6 ft 6 ft
A motor delivers 500 hp to the shaft, which is tubular and has an outer diameter of 3 in. The allowable shear stress for the material is tau_allow = 25 ksi. If the shaft is rotating at 100 rad/s, determine its largest inner diameter to the nearest 1/8 in.
6 Section 2. Problem 6 (25 pts. A hollow shaft 36 inches long tranmits 105 HP at 1250 rpm. The shaft is made out of steel with a modulus of rigidity of 11000 ksi. The shaft has an allowable sear stress of 12 ksi and an allowable angle of twist of 2.5 degreees over the 36 Inche length. The inside diameter of the shaft is 0.8 that of the outside diameter of the shaft. Determine: a) the required inside and...
A shaft is made of a steel alloy having an allowable shear
stress of ?(allow) = 12 ?si. If the diameter of the shaft is 1.5
in.,
(a) determine the maximum torque T that can be transmitted.
(b) What would be the maximum torque T’ if a 1-in.-diameter hole
is bored through the shaft?
(c) Sketch the shear-stress distribution along a radial line in
each case.
2. A shaft is made of a steel alloy having an allowable shear stress...
Your answer is partially correct. Try again. A motor supplies 178 ho at 540 rpm to flange A of the shaft. Gear B transfers 63hp of power to operating machinery in the factory, and the remaining pow in the factory, and the remaining power in the shaft is transferred by i te s stonuee th gear D. Shafts (1) and (2) are solid aluminum [G 4600 ksi] shafts that have the same diameter and an allowable shear stress of 5.9...
Section 2. Problem 6 (25 pts.) A hollow shaft 36 inches long tranmits 125 HP at 1100 rpm. The shaft is made out of steel with a modulus of rigidity of 11000 ksi. The shaft has an allowable sear stress of 12 ksi and an allowable angle of twist of 2.5 degreees over the 36 inche length. The inside diameter of the shaft is 0.6 that of the outside diameter of the shaft. Determine: a) the required inside and outside...
2. Ser A motor with 25 hp at 3000 rpm is connected to a 3 ft long hollow shaft. The outside diameter is 1" and the wall thickness is 1/8", and the material has an allowable shear stress of 10 ks (35 pts) a) Determine the minimum and maximum shear stress in the shaft b) What is the factor of safety against failure? c) Determine the total angle of twist in the shaft. Bac 3. For the 2D member loaded...
