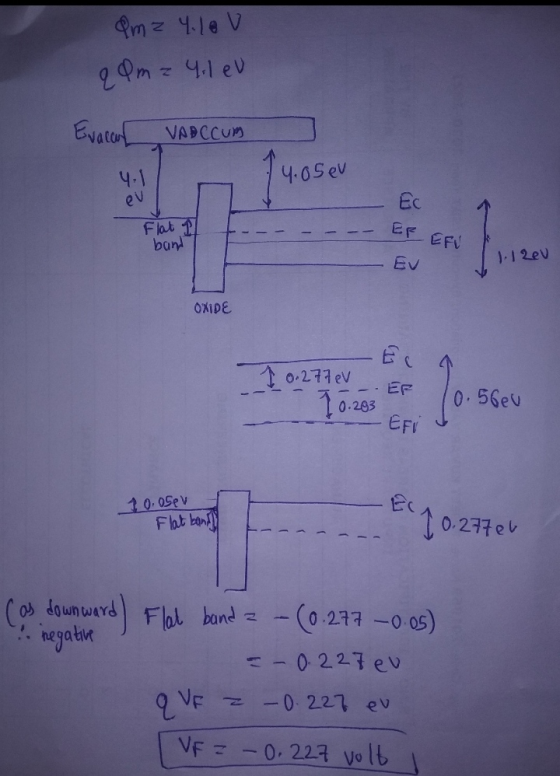

4. An ideal MOS system consists of an aluminum gate ( 0 m = 4.1 V)...
Problem 1. An n-channel MOS transistor is fabricated with the following specifications: Substrate is a p-type...
Problem 1. An n-channel MOS transistor is fabricated with the following specifications: Substrate is a p-type silicon with doping concentration NA=2x1015 cm-3 . The SiO2 gate thickness is 200 Å. Effective interface charges Qi=6.5x10-9 col/cm2. Work function difference between gate conductor and silicon substrate qфms=-0.95 eV. Calculate the following: a. Maximum depletion width, with respect to ground b. Gate capacitance per unit area, Ci c. Flat-band voltage, VFB d. Threshold voltage, VT.
(15 pts) 14. The energy band diagram for an ideal MOS-C under a specific gate bias is shown below...
Please do d e and f
(15 pts) 14. The energy band diagram for an ideal MOS-C under a specific gate bias is shown below. The device is maintained at T 300 K, kTiq 0.026 V, n, 1010 cm Note that E EF at the surface of the semiconductor. Answer the following questions. (d) Determine the surface potential s. (3 pts) EFM 0.24eVEc (e) Determine Dr. (3 pts) E, 0437 ev Ev 0 (a) What biasing mode is this MOS-C...
Consider an n-channel Silicon MOS system with a substrate resistivity of 10 0-cm and with a...
Consider an n-channel Silicon MOS system with a substrate resistivity of 10 0-cm and with a polycrystalline gate. Assume that the polysilicon gate is doped with boron atoms to a density of 1x1019 cm and that the silicon dioxide is 50 nm-thick. The channel is not biased except from the gate (Vc= VB = 0). (i) Accurately sketch the band diagram identifying flatband voltage, surface potential at inversion, depletion width at inversion, and charges at inversion. Tabulate these parameters. (ii)...
6. A MOS system has an n+ polysilicon gate and a p-type silicon substrate doped to...
6. A MOS system has an n+ polysilicon gate and a p-type silicon substrate doped to N. =10cm. Assume there is an oxide surface charge density (Q,/q) = 100cm 2. Design the oxide thickness so that V1 = 0.5 V (no bias is applied between the channel and substrate). Answer: x 58.5 nm OX
Problem3: Consider a MOS capacitor maintained at T 300K with the following characteristics: Assume Esi 1.9,x 3.9,8.85 x 10-14 F/cm, and n 1.5 x 1010cm3 . Gate material is n+ poly-silicon . Total n...
Problem3: Consider a MOS capacitor maintained at T 300K with the following characteristics: Assume Esi 1.9,x 3.9,8.85 x 10-14 F/cm, and n 1.5 x 1010cm3 . Gate material is n+ poly-silicon . Total negative oxide charge of 5x 1011q C/cnm2 . Substrate is n-type Si, with doping concentration 1x1016 cm3 Oxide thickness 5 nm . The electron affinity for Si is 4.03eV? a) Draw the band diagram at equilibrium. b) From part (a). What is the substrate (bulk) condition at...
Problem 3: 6.1 An N-channel MOSFET with N+-polv gate is fabricated on a 15 Ω cm...
Problem 3: 6.1 An N-channel MOSFET with N+-polv gate is fabricated on a 15 Ω cm P-type Si wafer with oxide fisxed charge density-qxe2 wSo pm. L-2pm. Tax-5m (a) Determine the flat-band voltage, Vfb (b) What is the threshold voltage, Vt? (c) A circuit designer requested N-MOSFET with Vt 0.5 V from a device engineer 10-2 It was not allowed to change the gate oxide thickness. If you are the device engineer, what can you do? Give specific answers including...
A.)what is the flat band voltage value of this capacitor? B.)what is the oxide capacitance value per unit area? C.)on the curve, sketch the high frequency curve for this MOS capacitance. D.)Sketch th...
A.)what is the flat band voltage value of this capacitor?
B.)what is the oxide capacitance value per unit area?
C.)on the curve, sketch the high frequency curve for this MOS
capacitance.
D.)Sketch the energy band diagram of the MOS structure at
position 5 in the C-V curve. Please indicate Ec, Ev, Ef.
elow curve shows a C-V characteristics for a silicon MOS capacitor. 4 1.2 1.0 0.8 0.6 0.4 -4-3-2-1 0 1 2 3 4 0(V)
elow curve shows a...
Problem 6: The energy band diagram for an ideal MOS-capacitor is shown below. tx 0.2 μm and Ep = E, at the Si-SiO2 interface. Assume no oxide charge and φ'm5-0. Answer the following. EpM Eps T...
Problem 6: The energy band diagram for an ideal MOS-capacitor is shown below. tx 0.2 μm and Ep = E, at the Si-SiO2 interface. Assume no oxide charge and φ'm5-0. Answer the following. EpM Eps Toz9ev 055ev a) What is the numerical value of the electron concentration at the Si-SiO2 interface? b) What is the substrate doping type and concentration? c) What is the electrostatic potential at the Si-SiO2 interface? d) What would be the depletion depth (width)? e) What...
Problem 5: The gate capacitance vs. gate voltage characteristic of a p+ poly-Si gated MOS capacitor of area 1x10"cm', is as shown: Assume Esi = 11.9, Eox-39,E,-8.85 × 10-14 F/on, and nl =...
Problem 5: The gate capacitance vs. gate voltage characteristic of a p+ poly-Si gated MOS capacitor of area 1x10"cm', is as shown: Assume Esi = 11.9, Eox-39,E,-8.85 × 10-14 F/on, and nl = 1.5 x 1010 cm3 Co [Farads] 3.45x1011 >Va [Volts] 1.0 0.3 (a) Is the semiconductor (silicon) substrate doped n-type or p-type? Explain briefly. (b) Is the measurement frequency low or high? Explain briefly. (c) What is the thickness of the gate oxide (SiO2), xo? (d) Estimate the...
Problem 3: Consider a MOS capacitor maintained at T= 300K with the following characteristics: Assume s 11.9, ox 3.9, 8.85x 10-1 F/cm, and n 1.5 x 1010cm3 Gate material is n poly-silicon Total...
Problem 3: Consider a MOS capacitor maintained at T= 300K with the following characteristics: Assume s 11.9, ox 3.9, 8.85x 10-1 F/cm, and n 1.5 x 1010cm3 Gate material is n poly-silicon Total negative oxide charge of 5x 1011q C/cm . Substrate is n-type Si, with doping concentration 1 x1016 cm-3 Oxide thickness 5 nmm The electron affinity for Si is 4.03eV? e) What is the flat capacitance? f) What is the depletion region width? g) What is the potential...
Please do d e and f
(15 pts) 14. The energy band diagram for an ideal MOS-C under a specific gate bias is shown below. The device is maintained at T 300 K, kTiq 0.026 V, n, 1010 cm Note that E EF at the surface of the semiconductor. Answer the following questions. (d) Determine the surface potential s. (3 pts) EFM 0.24eVEc (e) Determine Dr. (3 pts) E, 0437 ev Ev 0 (a) What biasing mode is this MOS-C...
Consider an n-channel Silicon MOS system with a substrate resistivity of 10 0-cm and with a polycrystalline gate. Assume that the polysilicon gate is doped with boron atoms to a density of 1x1019 cm and that the silicon dioxide is 50 nm-thick. The channel is not biased except from the gate (Vc= VB = 0). (i) Accurately sketch the band diagram identifying flatband voltage, surface potential at inversion, depletion width at inversion, and charges at inversion. Tabulate these parameters. (ii)...
6. A MOS system has an n+ polysilicon gate and a p-type silicon substrate doped to N. =10cm. Assume there is an oxide surface charge density (Q,/q) = 100cm 2. Design the oxide thickness so that V1 = 0.5 V (no bias is applied between the channel and substrate). Answer: x 58.5 nm OX
Problem3: Consider a MOS capacitor maintained at T 300K with the following characteristics: Assume Esi 1.9,x 3.9,8.85 x 10-14 F/cm, and n 1.5 x 1010cm3 . Gate material is n+ poly-silicon . Total negative oxide charge of 5x 1011q C/cnm2 . Substrate is n-type Si, with doping concentration 1x1016 cm3 Oxide thickness 5 nm . The electron affinity for Si is 4.03eV? a) Draw the band diagram at equilibrium. b) From part (a). What is the substrate (bulk) condition at...
Problem 3: 6.1 An N-channel MOSFET with N+-polv gate is fabricated on a 15 Ω cm P-type Si wafer with oxide fisxed charge density-qxe2 wSo pm. L-2pm. Tax-5m (a) Determine the flat-band voltage, Vfb (b) What is the threshold voltage, Vt? (c) A circuit designer requested N-MOSFET with Vt 0.5 V from a device engineer 10-2 It was not allowed to change the gate oxide thickness. If you are the device engineer, what can you do? Give specific answers including...
A.)what is the flat band voltage value of this capacitor?
B.)what is the oxide capacitance value per unit area?
C.)on the curve, sketch the high frequency curve for this MOS
capacitance.
D.)Sketch the energy band diagram of the MOS structure at
position 5 in the C-V curve. Please indicate Ec, Ev, Ef.
elow curve shows a C-V characteristics for a silicon MOS capacitor. 4 1.2 1.0 0.8 0.6 0.4 -4-3-2-1 0 1 2 3 4 0(V)
elow curve shows a...
Problem 6: The energy band diagram for an ideal MOS-capacitor is shown below. tx 0.2 μm and Ep = E, at the Si-SiO2 interface. Assume no oxide charge and φ'm5-0. Answer the following. EpM Eps Toz9ev 055ev a) What is the numerical value of the electron concentration at the Si-SiO2 interface? b) What is the substrate doping type and concentration? c) What is the electrostatic potential at the Si-SiO2 interface? d) What would be the depletion depth (width)? e) What...
Problem 5: The gate capacitance vs. gate voltage characteristic of a p+ poly-Si gated MOS capacitor of area 1x10"cm', is as shown: Assume Esi = 11.9, Eox-39,E,-8.85 × 10-14 F/on, and nl = 1.5 x 1010 cm3 Co [Farads] 3.45x1011 >Va [Volts] 1.0 0.3 (a) Is the semiconductor (silicon) substrate doped n-type or p-type? Explain briefly. (b) Is the measurement frequency low or high? Explain briefly. (c) What is the thickness of the gate oxide (SiO2), xo? (d) Estimate the...
Problem 3: Consider a MOS capacitor maintained at T= 300K with the following characteristics: Assume s 11.9, ox 3.9, 8.85x 10-1 F/cm, and n 1.5 x 1010cm3 Gate material is n poly-silicon Total negative oxide charge of 5x 1011q C/cm . Substrate is n-type Si, with doping concentration 1 x1016 cm-3 Oxide thickness 5 nmm The electron affinity for Si is 4.03eV? e) What is the flat capacitance? f) What is the depletion region width? g) What is the potential...
