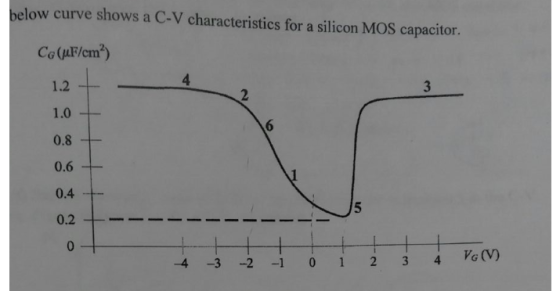

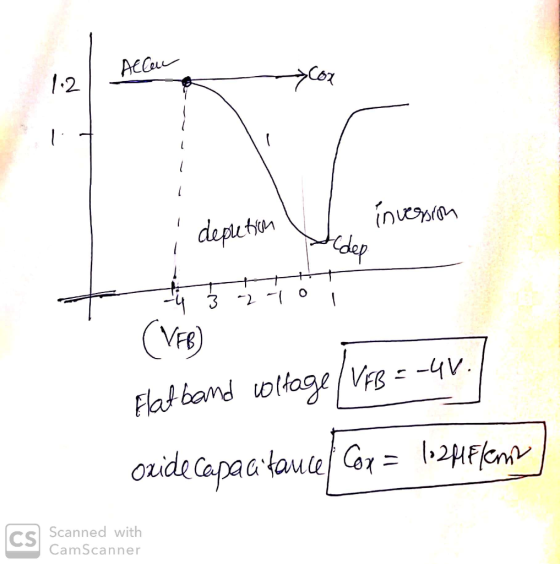

A.)what is the flat band voltage value of this capacitor?
B.)what is the oxide capacitance value per unit area?
C.)on the curve, sketch the high frequency curve for this MOS capacitance.
D.)Sketch the energy band diagram of the MOS structure at position 5 in the C-V curve. Please indicate Ec, Ev, Ef.
