Question

uploaded image

1 0
Add a comment Improve this question Transcribed image text
Answer #1

Let v be the voltage from the potentiometer contact to ground. Use Kirchhoff s current law to write the below equations 2000

Add a comment
Know the answer?
Add Answer to:

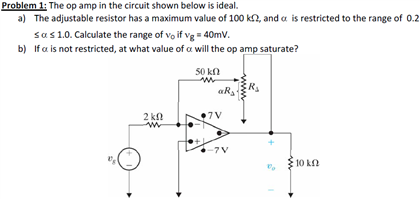

The op amp in the circuit shown below is ideal. The adjustable resistor has a maximum...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • 63 k12 The Op Amp in the circuit shown in Fig. 1 is ideal, 30 k02...

    63 k12 The Op Amp in the circuit shown in Fig. 1 is ideal, 30 k02 12 V 12 k 12 - 12 V + a. Calculate vo when Vg equals 4 V. b. Specify the range of values of vg so that the Op Amp operates in a linear mode. c. Assume that Vg equals 2 V and that the 63 K12 resistor is replaced with a variable resistor. What value of the variable resistor will cause the Op...

  • 5.20 The op amp in the circuit shown in Fig, P5.20 is ideal, Calculate v, when v, equals 3 V b) S...

    5.20 The op amp in the circuit shown in Fig, P5.20 is ideal, Calculate v, when v, equals 3 V b) Specify the range of values of vg so that the op amp operates in a linear mode. c) Assume that a's equals 5 V and that the 48n resistor is replaced with a variable resistor. What value of the variable resistor will cause the op amp to saturate? Figure P5.20 48 kΩ 15 kΩ 10 V 30 kΩ 10...

  • A. (10 pts) Implement the voltage amplifier shown below using an ideal op amp circuit. You have o...

    a. (10 pts) Implement the voltage amplifier shown below using an ideal op amp circuit. You have one op amp available for this circuit, and a range of resistors with values from 1 kΩ to 100 ka. Draw the schematic of your op amp circuit, labeling resistor values. Make sure the gain, input resistance, and output resistance of your circuit matches the model in the schematic. R=012 *100v, RL 100 b. (5 pts) Your amplifier circuit should have a frequency...

  • The op amp in the circuit in Figure below is ideal. a) (3pts) Calculate vo if...

    The op amp in the circuit in Figure below is ideal. a) (3pts) Calculate vo if va=1 V and vh=2.5 V. b) (3pts) Calculate vo if va =2.5 V and v5 = 1V f) (2pts) If Vb = 2.5 V, specify the range of va such that the amplifier does not saturate. 40 k N16V 2k1 totx 16V v.210k

  • 5.4 The op amp in the circuit of Fig. P5.19 is ideal. a) What op amp...

    5.4 The op amp in the circuit of Fig. P5.19 is ideal. a) What op amp circuit configuration is this? b) Find in terms of us . c) Find the range of values for e, such that e, does nol saturate and thc op amp remains in its lincar region of operation. Figure P5.19 40 kΩ 10 V 12 kΩ 10 V 1 S1DE

  • EE 261 Homework #6 Due in class on Oct. 10 (Wed) 5.6 The op aimp in...

    EE 261 Homework #6 Due in class on Oct. 10 (Wed) 5.6 The op aimp in the following circuit is ideal. Calculate a) ia. b) vai c) voi d) io. 5.11 The op amp in the circuit is ideal. The 500 resistor is adjustable between 0Ω σ : 0 and 50Ω (σ-: 1). a) Find the range of values for σ in which the op amp does not saturate. b) Find i', (in microamperes) when σ 0.272. 5.24 The circuit...

  • In the circuit below, assume the op-amp is ideal and that: • RA = 14 k2...

    In the circuit below, assume the op-amp is ideal and that: • RA = 14 k2 RF = 25 ks 2 • VA= 14 V IF RE m RA VAM IA Vout What is the value of Vout? Give your answer in V to 1 decimal place. In the circuit below, assume the op-amp is ideal and that: . RA = 14 kg RF = 3622 • VA= 6.4V . RE RA Vout What is the value of Vin? 6.4V...

  • Problem 2: In the circuit shown assume the Op-Amp is ideal. A) Find vo as a...

    Problem 2: In the circuit shown assume the Op-Amp is ideal. A) Find vo as a function of vi and vs. B) Next assume the Op-Amp is ideal, except its low frequency gain is Ao= 100 V/V. Now find vo as a function of vi and v2. C) The Op-Amp has a terminal frequency of fi 10° Hz, find the -3 dB (corner) frequency of the output signal w2 10K

  • 8.) In the OP amp circuit shown in Figure 8 , determine the value of resistor...

    8.) In the OP amp circuit shown in Figure 8 , determine the value of resistor R2 needed to establish an input trip point voltage of 6.75 Volts ( i.e. when input signal voltage V in exceeds 6.75 V the OP amp’s output voltage changes state ) . ( 60 pts ) R2 = _______________ If the OP AMP in Figure 8 was biased by DC voltages of + / - 15 Volts , and the value of resistor R2...

  • Vo Q1. Assume that Op-Amp as shown above is ideal. Given that RI is 0.23 Ohm,...

    Vo Q1. Assume that Op-Amp as shown above is ideal. Given that RI is 0.23 Ohm, R2 is 1.78 Ohm, R3 is 1.61 Ohm, R4 is 2.225 Ohm. Calculate Vo, V2 & 13. V2 (Volts) Submit Answer Tries 0/5 13 (Amps) Submit Answer Tries o/s Vo (Volts) Submit Answer Tries 0/5 R1 Vo Q2. Assume that Op amp shown is ideal. Given that R1 is 19 Ohm, R2 is 82 Ohm, R3 is 9.5 Ohm, R4 is 205 Ohm. Calculate...
