![-> T:7 159 This T16 1 1 Y:1 0:2 IR:2 15:9 LI 1 :5 I:7 IT:6 4 O Y:1 ::2 0:2 IR:2 → 20 O 6:9 1 T:7 O 1 1 TH:5 T:6 I E:2 (0:2] [](http://img.homeworklib.com/questions/f1b260f0-08ac-11eb-a155-8305b3698c89.png?x-oss-process=image/resize,w_560)
If you're still having any doubt then please feel free to ask in the comment section.
Add Answer to:

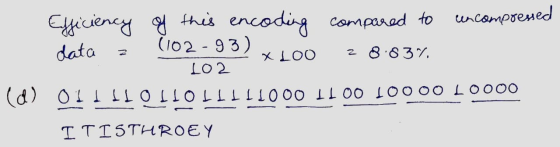

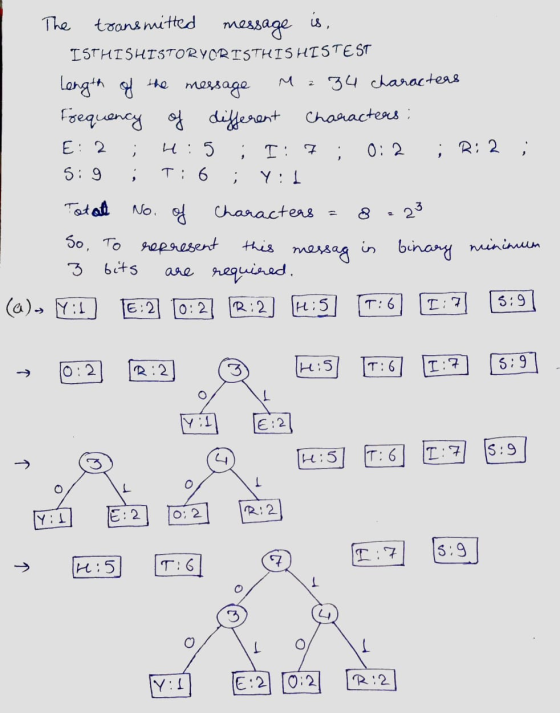

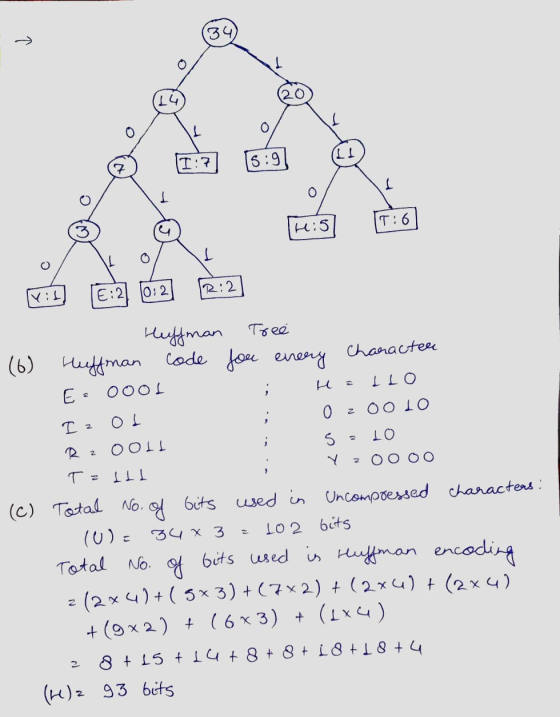

The following message is to be transmitted using Huffman coding: ISTHISHISTORYORISTHISHISTESTTHESIS a) Determine a Huffman code...
Qu 2: [6 Marks) (a) Information to be transmitted over the internet contains the following characters...
Qu 2: [6 Marks) (a) Information to be transmitted over the internet contains the following characters with their associated frequencies as shown in the following table: Character abenos tu Frequency 11 6 14 12 3 132 Use Huffman Code Algorithm to answer the following questions: (i) Build the Huffman code tree for the message. (ii) Use the tree to find the codeword for each character. (iii)If the data consists of only these characters, what is the total number of bits...
. Huffman Encoding (a.) (6 points) Suppose a certain file contains only the following letters with the corresponding frequencies 1 AİB 73 9 30 44 130 28 16 In a fixed-length encoding scheme, cach...
. Huffman Encoding (a.) (6 points) Suppose a certain file contains only the following letters with the corresponding frequencies 1 AİB 73 9 30 44 130 28 16 In a fixed-length encoding scheme, cach character is given a binary representation with the same number of bits. What is the minimum number of bits required to represent each letter of this file under fixed-length encoding scheme? Describe how to encode all seven letters in this file using the number of bits...
Problem (3): Huffman Coding A message contains n = 5 symbols (A, B, C, D, E)...
Problem (3): Huffman Coding A message contains n = 5 symbols (A, B, C, D, E) with probabilities P = (1/2, 1/4, 1/8, 1/16, 1/16), respectively. • Find a variable length Huffman coding for the 5 symbols • Find the average code length < L > for the obtained codes • Show that < L > can also be obtained by summing the probabilities of the internal nodes in the Huffman tree. • Find the coding efficiency for the obtained...
(b.) Huffman code is a way to encode information using variable-length binary strings to represent symbols depending on the frequency of each individual letter. Specifically, letters that appear more...
(b.) Huffman code is a way to encode information using variable-length binary strings to represent symbols depending on the frequency of each individual letter. Specifically, letters that appear more frequently can be encoded into strings of shorter lengths, while rarer letters can be turned into longer binary strings. On average, Huffman code is a more efficient way to encode a message as the number of bits in the output string will be shorter than if a fixed-length code was used....
Use Huffman coding technique to find the encoding table for the word “Honorificabilitudinitatibus”. Show the final...
Use Huffman coding technique to find the encoding table for the word “Honorificabilitudinitatibus”. Show the final Huffman tree. What is the compression ratio (compared to its 8-bit binary representation)?
(4) Given the following frequencies of letters appearing in a file, use Huffman Coding to determine...
(4) Given the following frequencies of letters appearing in a file, use Huffman Coding to determine the average number of bits used to encode a symbol, the binary code used to represent each bit, and the resulting binary tree. (20 pts.) A: 0.08, B: 0.10, C: 0.12, D: 0.15, E: 0.20, F: 0.35
For this assignment, you will write a program to work with Huffman encoding. Huffman code is...
For this assignment, you will write a program to work with Huffman encoding. Huffman code is an optimal prefix code, which means no code is the prefix of another code. Most of the code is included. You will need to extend the code to complete three additional methods. In particular, code to actually build the Huffman tree is provided. It uses a data file containing the frequency of occurrence of characters. You will write the following three methods in the...
C language huffman This exercise will familiarize you with linked lists, which you will need for...
C language huffman
This exercise will familiarize you with linked lists, which you will need for a subsequent programming Getting Started assignment Overview Requirements Getting Started Submit Start by getting the files. Type 264get hw13 and then cd hw13 from bash. Pre-tester You will get the following files: Q&A Updates 1. huffman.h: An empty header file, you have to define your own functions in this homework. 2. huffman.c: An empty c file, you have to define your own functions in...
Find the optimal binary symbol code using the Huffman coding algorithm. Draw the Huffman tree (show...
Find the optimal binary symbol code using the Huffman coding algorithm. Draw the Huffman tree (show intermediate steps) and list the final prefix code for each letter. letter : { a b c d e f g } frequency: {.01, .24, .05, .20, .47, .01, .02}
Problem (A1) (20 points): Huffman Coding Consider a message having the 5 symbols (A,B,C,D,E) with probabilities...
Problem (A1) (20 points): Huffman Coding Consider a message having the 5 symbols (A,B,C,D,E) with probabilities (0.1,0.1,0.2 ,0.2, 0.4), respectively. For such data, two different sets of Huffman codes can result from a different tie breaking during the construction of the Huffman trees. • Construct the two Huffman trees. (8 points) Construct the Huffman codes for the given symbols for each tree. (4 points) Show that both trees will produce the same average code length. (4 points) For data transmission...
Qu 2: [6 Marks) (a) Information to be transmitted over the internet contains the following characters with their associated frequencies as shown in the following table: Character abenos tu Frequency 11 6 14 12 3 132 Use Huffman Code Algorithm to answer the following questions: (i) Build the Huffman code tree for the message. (ii) Use the tree to find the codeword for each character. (iii)If the data consists of only these characters, what is the total number of bits...
. Huffman Encoding (a.) (6 points) Suppose a certain file contains only the following letters with the corresponding frequencies 1 AİB 73 9 30 44 130 28 16 In a fixed-length encoding scheme, cach character is given a binary representation with the same number of bits. What is the minimum number of bits required to represent each letter of this file under fixed-length encoding scheme? Describe how to encode all seven letters in this file using the number of bits...
(b.) Huffman code is a way to encode information using variable-length binary strings to represent symbols depending on the frequency of each individual letter. Specifically, letters that appear more frequently can be encoded into strings of shorter lengths, while rarer letters can be turned into longer binary strings. On average, Huffman code is a more efficient way to encode a message as the number of bits in the output string will be shorter than if a fixed-length code was used....
C language huffman
This exercise will familiarize you with linked lists, which you will need for a subsequent programming Getting Started assignment Overview Requirements Getting Started Submit Start by getting the files. Type 264get hw13 and then cd hw13 from bash. Pre-tester You will get the following files: Q&A Updates 1. huffman.h: An empty header file, you have to define your own functions in this homework. 2. huffman.c: An empty c file, you have to define your own functions in...
Problem (A1) (20 points): Huffman Coding Consider a message having the 5 symbols (A,B,C,D,E) with probabilities (0.1,0.1,0.2 ,0.2, 0.4), respectively. For such data, two different sets of Huffman codes can result from a different tie breaking during the construction of the Huffman trees. • Construct the two Huffman trees. (8 points) Construct the Huffman codes for the given symbols for each tree. (4 points) Show that both trees will produce the same average code length. (4 points) For data transmission...
