A proton traveling at v= 4.65 x 10° m/s to the right enters the region between...

Question

Question

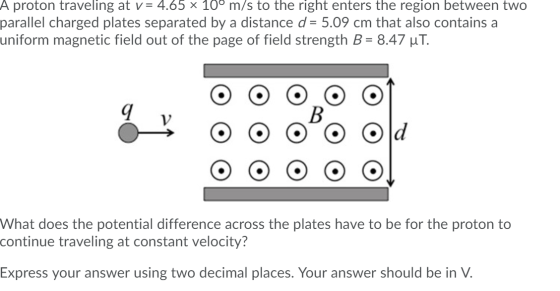

A proton traveling at v= 4.65 x 10° m/s to the right enters the region between two parallel charged plates separated by a dis

science physics

Answer 1

Answer #1

For the constant velocity of proton net force on the Proton should be zero.

Than speed of proton is

v = E/B

E = electric field. = V/d

B = magnetic field

Than

E = V/d = vB

V = Bvd = 8.47 x 10^-7 x 4.65x10⁶x5.09x10^-2

V = potential difference = 0.20 volt

Add a comment
