A mass spectrometer has its magnetic field pointing into the page.

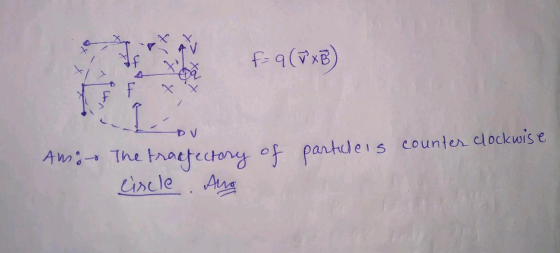

A mass spectrometer has its magnetic field pointing into the page. What is the path of travel of positive particles that are initially moving toward the top of the page?
counter-clockwise circle
clockwise circle
leftward bending parabolic curve that eventually goes straight left
rightward bending parabolic curve that eventually goes straight right
straight line
