The figure (Figure 1) shows a portion of a silver ribbon with z1 = 12.0mm and y1 = 0.23mm , carrying a current of 110A in the +x-direction. The ribbon lies in a uniform magnetic field, in the y-direction, with magnitude 0.91T . Apply the simplified model of the Hall effect.
Part A

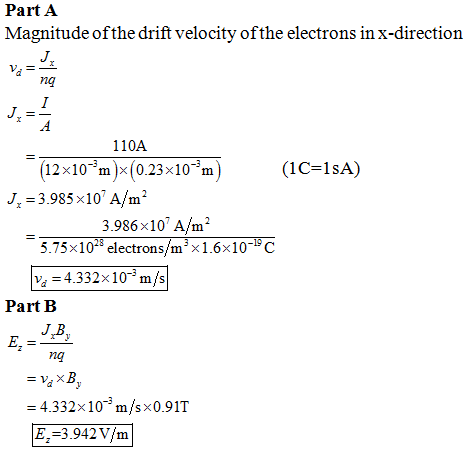

If there are 5.75?1028 free electrons per cubic meter, find the magnitude of the drift velocity of the electrons in the x-direction.
Part B
Find the magnitude of the electric field in the
z-direction due to the Hall effect.
Part C
Find the direction of the electric field in the
z-direction due to the Hall effect.
Part D
Find the Hall emf.
