Homework Answers

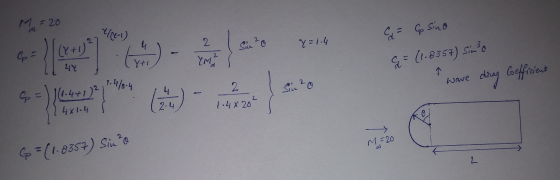

The coefficient of pressure using the newtonian theory is estimated for Mach Number of 20 as a function of θ. The coefficient of drag or wave drag can then be obtained once coefficient of pressure is known as a function of theta.
Add Answer to:
1- Hypersonic flow at M.=20, a = 0º pass over a sphere-cylinder body shown in the...
1- Hypersonic flow at Moo=20, a = 0º pass over a sphere-cylinder body shown in the...

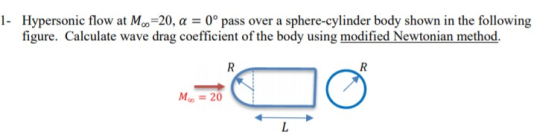

1- Hypersonic flow at Moo=20, a = 0º pass over a sphere-cylinder body shown in the following figure. Calculate wave drag coefficient of the body using modified Newtonian method. R R M = 20 L
Gas dynamics, fluid mechanics and Aerodynamics Hypersonic flow at M..=20, a = 0º pass over a...
Gas dynamics, fluid mechanics and
Aerodynamics
Hypersonic flow at M..=20, a = 0º pass over a sphere-cylinder body shown in the following figure. Calculate wave drag coefficient of the body using modified Newtonian method. R R M. = 20 L
1. Inviscid incompressible fluid pass a cylinder having a radius of R as shown in the...
1. Inviscid incompressible fluid pass a cylinder having a radius of R as shown in the figure below. The fluid velocity along the dividing streamline is found to be V = V, (1-R /x) a) Determine the pressure gradient (ap/ ôx) along the streamline b) Obtain the pressure p(x) for - sxs-R c) Plot the pressure distribution froma distance 15 m ahead of the cylinder to the stagnation point for flow speeds of Vo 0, 10 km/hr and 20 km/hr...
please help Question 1 1.1 If the velocity distribution of a fluid flowing over a 1m²...
please help
Question 1 1.1 If the velocity distribution of a fluid flowing over a 1m² flat plate is given by u=l+ y + y, find the m. Assume dynamic viscosity to be y=6x10*(Ns/m”). force acting on a plate at y = [5 marks] 1.2 A 2D velocity field in an incompressible flow was measured by PIV method and determined to follow the following functions u= 2x’ +2y and v=x - 4y. Check whether your measurements are correct at a...
1. Water flows over a cylinder perpendicular to its axis (in cross flow) at 3 m/s....
1. Water flows over a cylinder perpendicular to its axis (in cross flow) at 3 m/s. The water is at 300 K and the cylinder surface is at 350 K. The cylinder diameter is 50 mm. 1. Identify the characteristic length 2. The temperature at which properties must be evaluated 3. Calculate the Reynolds number 4. Identify the Nusselt correlations for this problem 5. Calculate the average convective heat transfer coefficient
Air at 20°C and 1 atm flows over a long cylinder at 1 m/s. The cylinder...
Air at 20°C and 1 atm flows over a long cylinder at 1 m/s. The cylinder has a diameter of 10mm and its initial temperature is 134°C. If the density, specific heat, and 3 conductivity of the cylinder are 7832 kg/m , 549 J/kg.K, and 49.2 W/m.K, respectively, calculate the temperature on surface of the cylinder after 100 seconds.
KE7. Figure shows a mechanism. Body 5 is assumed to be homogeneous circular cylinder, and mass of the pulley 4 is uniformly distributed over its rim. The coefficient of sliding friction between bo...
KE7. Figure shows a mechanism. Body 5 is assumed to be homogeneous circular cylinder, and mass of the pulley 4 is uniformly distributed over its rim. The coefficient of sliding friction between bodies and the plane is f 0.1. The coefficient of stiffness of a spring is c. A force F applied to the mechanism depends on the displacement s of the body 1. The mechanism starts motion from rest, and F at the beginning of the motion the spring...
Find the angular velocity w3 at instant s1=0.2m KEl6. Figure shows a mechanism. Body 5 is assumed to be homogeneous circular cylinder, and mass of the pulley 4 is uniformly distributed over its ri...
Find the angular velocity w3 at instant s1=0.2m
KEl6. Figure shows a mechanism. Body 5 is assumed to be homogeneous circular cylinder, and mass of the pulley 4 is uniformly distributed over its rim. The coefficient of sliding friction between bodies and the plane is f 0.1. The coefficient of stiffness of a spring is e. A force Fapplied to the mechanism depends on the displacement si of the body 1. The mechanism starts motion from rest, and at the...
Problem #1(10pts) Consider the system shown in the figure consisting of a circular cross section eylinder with center ABC. A counterclockwise torque of 10 kN-m is applied to the cylinder at D Det...
Problem #1(10pts) Consider the system shown in the figure consisting of a circular cross section eylinder with center ABC. A counterclockwise torque of 10 kN-m is applied to the cylinder at D Determine the force (P) applied at point B on the bar to prevent rot cylinder equal to 0.25 m and the coefficient of static friction equal to 0.40 ation of the cylinder. Take the radius of the 0.15 m , Hint: You need to consider free body diagram...
Consider 2 thin, flat plates (Plate 1 and Plate 2 shown below) with air flowing over...
Consider 2 thin, flat plates (Plate 1 and Plate 2 shown below) with air flowing over them with a speed of 6 m/s. Plate 1 is 10 cm by 20 cm and Plate 2 is 30 cm by 20 cm. What is the ratio of the drag coefficient of Plate 2 to the drag coefficient of Plate 1 (Coz/Cp)? Take the critical Reynolds number for transition from laminar to turbulent flow to be 1,000,000. The kinematic viscosity of air (v...
1- Hypersonic flow at Moo=20, a = 0º pass over a sphere-cylinder body shown in the following figure. Calculate wave drag coefficient of the body using modified Newtonian method. R R M = 20 L
Gas dynamics, fluid mechanics and
Aerodynamics
Hypersonic flow at M..=20, a = 0º pass over a sphere-cylinder body shown in the following figure. Calculate wave drag coefficient of the body using modified Newtonian method. R R M. = 20 L
1. Inviscid incompressible fluid pass a cylinder having a radius of R as shown in the figure below. The fluid velocity along the dividing streamline is found to be V = V, (1-R /x) a) Determine the pressure gradient (ap/ ôx) along the streamline b) Obtain the pressure p(x) for - sxs-R c) Plot the pressure distribution froma distance 15 m ahead of the cylinder to the stagnation point for flow speeds of Vo 0, 10 km/hr and 20 km/hr...
please help
Question 1 1.1 If the velocity distribution of a fluid flowing over a 1m² flat plate is given by u=l+ y + y, find the m. Assume dynamic viscosity to be y=6x10*(Ns/m”). force acting on a plate at y = [5 marks] 1.2 A 2D velocity field in an incompressible flow was measured by PIV method and determined to follow the following functions u= 2x’ +2y and v=x - 4y. Check whether your measurements are correct at a...
1. Water flows over a cylinder perpendicular to its axis (in cross flow) at 3 m/s. The water is at 300 K and the cylinder surface is at 350 K. The cylinder diameter is 50 mm. 1. Identify the characteristic length 2. The temperature at which properties must be evaluated 3. Calculate the Reynolds number 4. Identify the Nusselt correlations for this problem 5. Calculate the average convective heat transfer coefficient
KE7. Figure shows a mechanism. Body 5 is assumed to be homogeneous circular cylinder, and mass of the pulley 4 is uniformly distributed over its rim. The coefficient of sliding friction between bodies and the plane is f 0.1. The coefficient of stiffness of a spring is c. A force F applied to the mechanism depends on the displacement s of the body 1. The mechanism starts motion from rest, and F at the beginning of the motion the spring...
Find the angular velocity w3 at instant s1=0.2m
KEl6. Figure shows a mechanism. Body 5 is assumed to be homogeneous circular cylinder, and mass of the pulley 4 is uniformly distributed over its rim. The coefficient of sliding friction between bodies and the plane is f 0.1. The coefficient of stiffness of a spring is e. A force Fapplied to the mechanism depends on the displacement si of the body 1. The mechanism starts motion from rest, and at the...
Problem #1(10pts) Consider the system shown in the figure consisting of a circular cross section eylinder with center ABC. A counterclockwise torque of 10 kN-m is applied to the cylinder at D Determine the force (P) applied at point B on the bar to prevent rot cylinder equal to 0.25 m and the coefficient of static friction equal to 0.40 ation of the cylinder. Take the radius of the 0.15 m , Hint: You need to consider free body diagram...
Consider 2 thin, flat plates (Plate 1 and Plate 2 shown below) with air flowing over them with a speed of 6 m/s. Plate 1 is 10 cm by 20 cm and Plate 2 is 30 cm by 20 cm. What is the ratio of the drag coefficient of Plate 2 to the drag coefficient of Plate 1 (Coz/Cp)? Take the critical Reynolds number for transition from laminar to turbulent flow to be 1,000,000. The kinematic viscosity of air (v...
