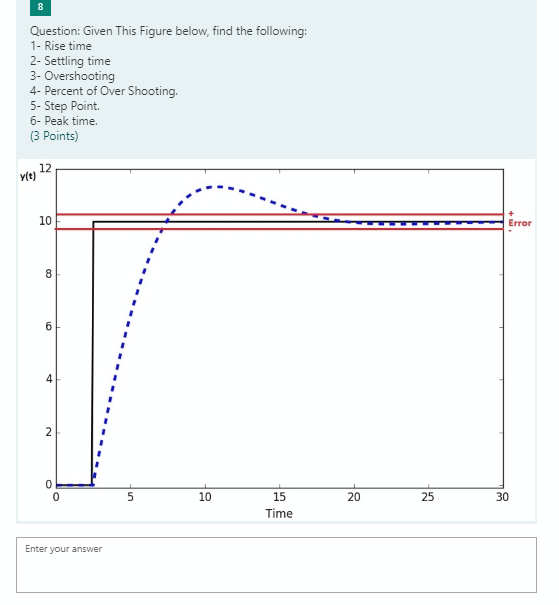

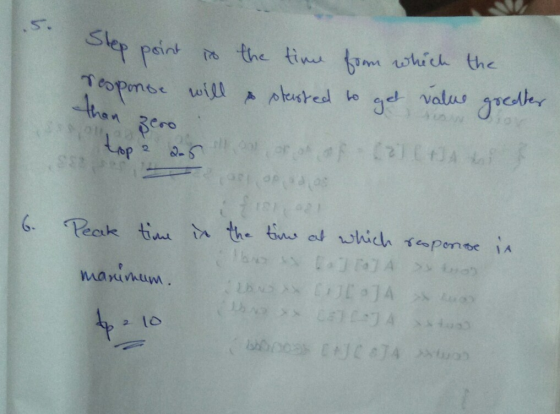

8 Question: Given This Figure below, find the following: 1- Rise time 2- Settling time 3-...
Question 2 a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise...
Question 2 a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise time, peak time, maximum overshoot and settling time) and the steady state error for the system. (2 marks) b) To improve the relative stability, the tachometer feedback are employed as shown in Figure 2b). i Determine the value in so that the damping ratio of the system is 0.5. (1 % marks) From the result obtained in , evaluate the transient response characteristics (rise...
Question 2 a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise...
Question 2 a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise time, peak time, maximum overshoot and settling time) and the steady state error for the system. (2 marks) b) To improve the relative stability, the tachometer feedback are employed as shown in Figure 2(b). i Determine the value Kso that the damping ratio of the system is 0.5. (1 % marks) i. From the result obtained in (), evaluate the transient response characteristics (rise...
Question 2 a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise...
Question 2 a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise time, peak time, maximum overshoot and settling time) and the steady state error for the system. (2 marks) b) To improve the relative stability, the tachometer feedback are employed as shown in Figure 2(b). Determine the value K, so that the damping ratio of the system is 0.5. (1 % marks) i. From the result obtained in (), evaluate the transient response characteristics (rise...
. a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise time,...
.
a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise time, peak time, maximum overshoot and settling time) and the steady state error for the system. (2 marks) b) To improve the relative stability, the tachometer feedback are employed as shown in Figure 2(b). i. Determine the value Kn so that the damping ratio of the system is 0.5. (1 % marks) ii. From the result obtained in (), evaluate the transient response characteristics (rise...
a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise time, peak...
a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise time, peak time, maximum overshoot and settling time) and the steady state error for the system. (2 marks) b) To improve the relative stability, the tachometer feedback are employed as shown in Figure 2(b). i. Determine the value Kn so that the damping ratio of the system is 0.5. (1 22 marks) ii. iii. From the result obtained in (i), evaluate the transient response characteristics (rise...
Problem 8: A control system for an automatic fluid dispenser is shown below: 125 pointsl Y(s) K6s...
I need the solution using the simulink and if any codes
available please, thanks
Problem 8: A control system for an automatic fluid dispenser is shown below: 125 pointsl Y(s) K6s + 12) Obtain the Closed-loop Transfer Function for the above block diagram. Simulate the system for a unit step input for the following values of K: 15, 30 and 50 On a single graph, plot the response curves for all three cases, for a simulation time of 20 seconds....
a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise time, peak...
a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise time, peak time, maximum overshoot and settling time) and the steady state error for the system. (2 marks) b) To improve the relative stability, the tachometer feedback are employed as shown in Figure 2(b). i Determine the value K, so that the damping ratio of the system is 0.5. (1 % marks) ii. From the result obtained in (), evaluate the transient response characteristics (rise time,...
Question three The figure below shows a unit step response of a second order system. From...
Question three The figure below shows a unit step response of a second order system. From the graph of response find: 1- The rise timet, 2- The peak timet, 3- The maximum overshoot Mp 4- The damped natural frequency w 5. The transfer function. Hence find the damping ratio ζ and the natural frequency ah-Find also the transfer function of the system. r 4 02 15 25 35 45 Question Four For the control system shown in the figure below,...
Question 2 For the system shown below use the MATLAB to find: X + 0.5s+1.3 s+1.2s+1.6s For the pr...
Question 2 For the system shown below use the MATLAB to find: X + 0.5s+1.3 s+1.2s+1.6s For the previous system if K-1, and the input is sin(2t) find: 1) 2) 3) 4) Peak amplitude Rise time Settling time Steady state value Question 3 For the system shown below If the input is unit step find: 1) 2) 3) 4) Peak amplitude Rise time Settling time Steady state value
Question 2 For the system shown below use the MATLAB to find:...
(b) Figure Q3(b) show the unit step responscs of a system A and system B, respectively For each system Find the percent...
(b) Figure Q3(b) show the unit step responscs of a system A and system B, respectively For each system Find the percentage overshoot, % OS and the Peak time, T 6 marks Find the transfer function of both systems (i) [8 marks iii) You have to design a system which operate with settling time less than 5second, overshoot percentage less than 30% and which system will you choose, system A or system B, justified your answer. [3 marks |(ii) 1,5-...
Question 2 a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise time, peak time, maximum overshoot and settling time) and the steady state error for the system. (2 marks) b) To improve the relative stability, the tachometer feedback are employed as shown in Figure 2b). i Determine the value in so that the damping ratio of the system is 0.5. (1 % marks) From the result obtained in , evaluate the transient response characteristics (rise...
Question 2 a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise time, peak time, maximum overshoot and settling time) and the steady state error for the system. (2 marks) b) To improve the relative stability, the tachometer feedback are employed as shown in Figure 2(b). i Determine the value Kso that the damping ratio of the system is 0.5. (1 % marks) i. From the result obtained in (), evaluate the transient response characteristics (rise...
Question 2 a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise time, peak time, maximum overshoot and settling time) and the steady state error for the system. (2 marks) b) To improve the relative stability, the tachometer feedback are employed as shown in Figure 2(b). Determine the value K, so that the damping ratio of the system is 0.5. (1 % marks) i. From the result obtained in (), evaluate the transient response characteristics (rise...
.
a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise time, peak time, maximum overshoot and settling time) and the steady state error for the system. (2 marks) b) To improve the relative stability, the tachometer feedback are employed as shown in Figure 2(b). i. Determine the value Kn so that the damping ratio of the system is 0.5. (1 % marks) ii. From the result obtained in (), evaluate the transient response characteristics (rise...
a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise time, peak time, maximum overshoot and settling time) and the steady state error for the system. (2 marks) b) To improve the relative stability, the tachometer feedback are employed as shown in Figure 2(b). i. Determine the value Kn so that the damping ratio of the system is 0.5. (1 22 marks) ii. iii. From the result obtained in (i), evaluate the transient response characteristics (rise...
I need the solution using the simulink and if any codes
available please, thanks
Problem 8: A control system for an automatic fluid dispenser is shown below: 125 pointsl Y(s) K6s + 12) Obtain the Closed-loop Transfer Function for the above block diagram. Simulate the system for a unit step input for the following values of K: 15, 30 and 50 On a single graph, plot the response curves for all three cases, for a simulation time of 20 seconds....
a) Consider the control system in Figure 2(a). Determine the transient response characteristics (rise time, peak time, maximum overshoot and settling time) and the steady state error for the system. (2 marks) b) To improve the relative stability, the tachometer feedback are employed as shown in Figure 2(b). i Determine the value K, so that the damping ratio of the system is 0.5. (1 % marks) ii. From the result obtained in (), evaluate the transient response characteristics (rise time,...
Question three The figure below shows a unit step response of a second order system. From the graph of response find: 1- The rise timet, 2- The peak timet, 3- The maximum overshoot Mp 4- The damped natural frequency w 5. The transfer function. Hence find the damping ratio ζ and the natural frequency ah-Find also the transfer function of the system. r 4 02 15 25 35 45 Question Four For the control system shown in the figure below,...
Question 2 For the system shown below use the MATLAB to find: X + 0.5s+1.3 s+1.2s+1.6s For the previous system if K-1, and the input is sin(2t) find: 1) 2) 3) 4) Peak amplitude Rise time Settling time Steady state value Question 3 For the system shown below If the input is unit step find: 1) 2) 3) 4) Peak amplitude Rise time Settling time Steady state value
Question 2 For the system shown below use the MATLAB to find:...
(b) Figure Q3(b) show the unit step responscs of a system A and system B, respectively For each system Find the percentage overshoot, % OS and the Peak time, T 6 marks Find the transfer function of both systems (i) [8 marks iii) You have to design a system which operate with settling time less than 5second, overshoot percentage less than 30% and which system will you choose, system A or system B, justified your answer. [3 marks |(ii) 1,5-...
