A 400 mm x 400 mm column supports a DL = 500 KN, LL = 1000...
A 400 mm x 400 mm column supports a DL = 500 KN, LL = 1000 KN. Assume that the weight of the footing and the soil above is to be 8% of the total service load. The soil bearing capacity is 200 KPa, fc’ = 27.6 MPa, and fy = 414 MPa. Due to some constraints, one of the dimensions of the footing is limited to 2 m. Design completely the footing. Provide the footing plan and elevation.
Homework Answers

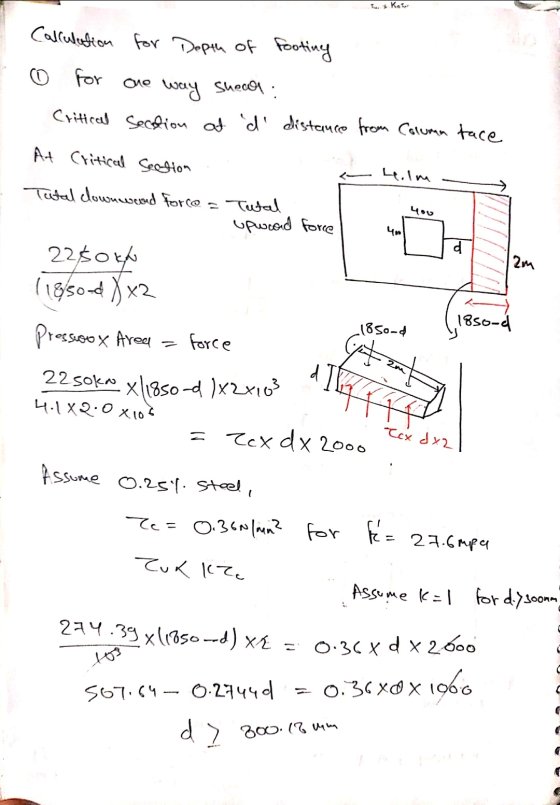

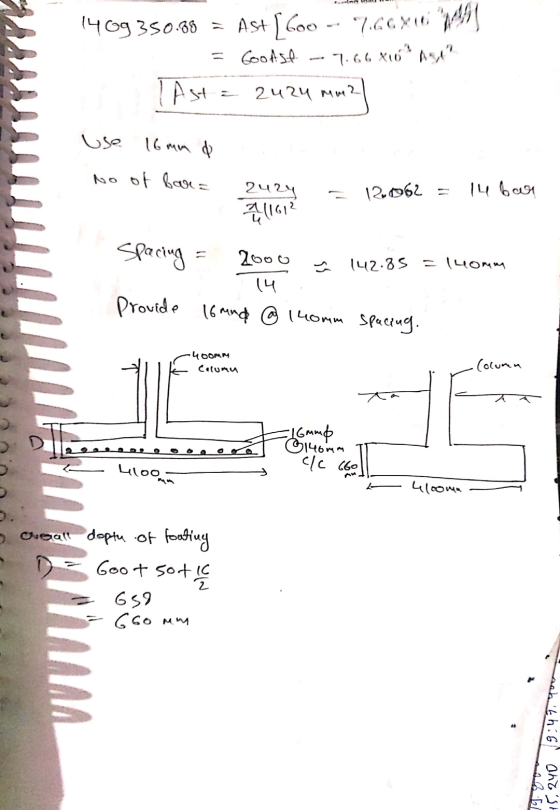

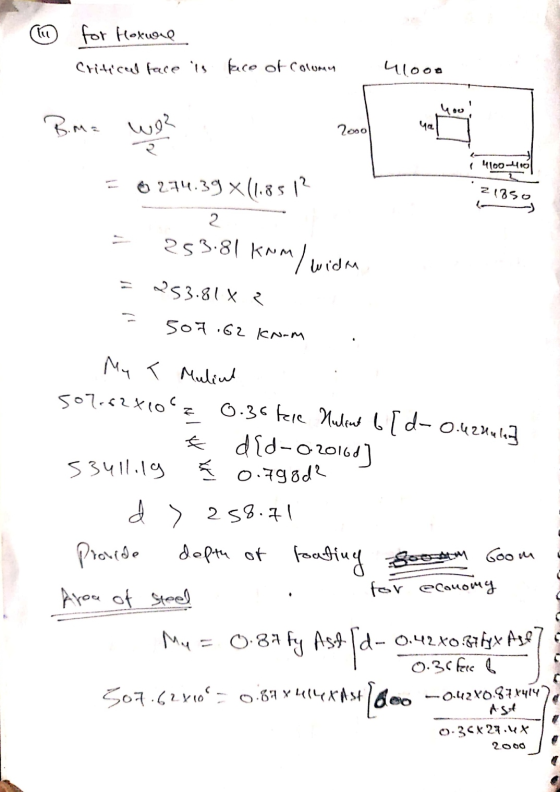

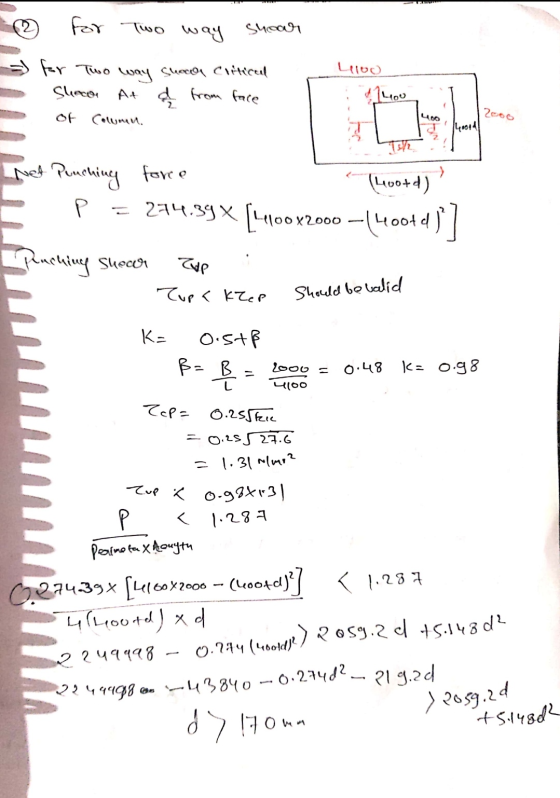

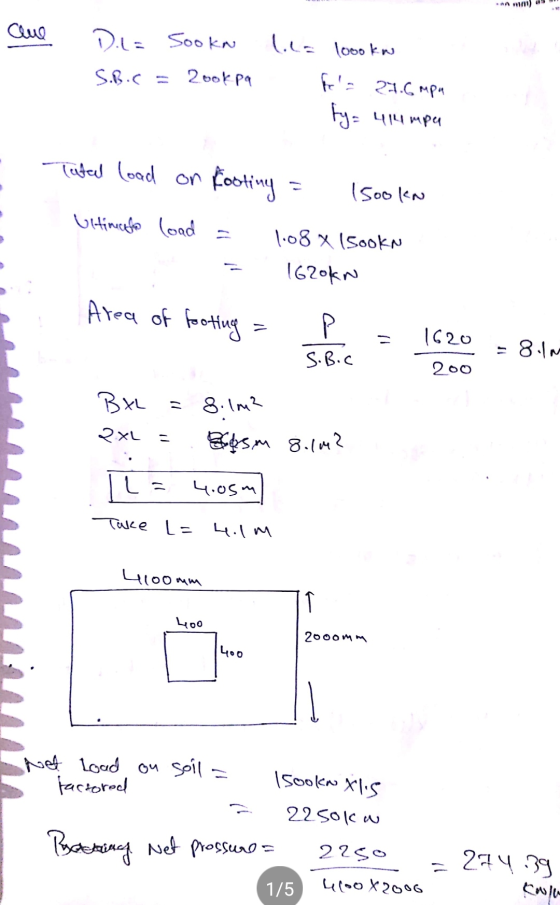

Below design based on IS code IS 456- 2000 Indian standard
code
