![2. [15 points] For a circuit below, find Voltages and Currents on R1, R2, R3, R4, R5 and R6. Use either Nodal or Mesh Analysi](http://img.homeworklib.com/questions/c1d18160-0b3f-11eb-9633-85fcf88e49f0.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:

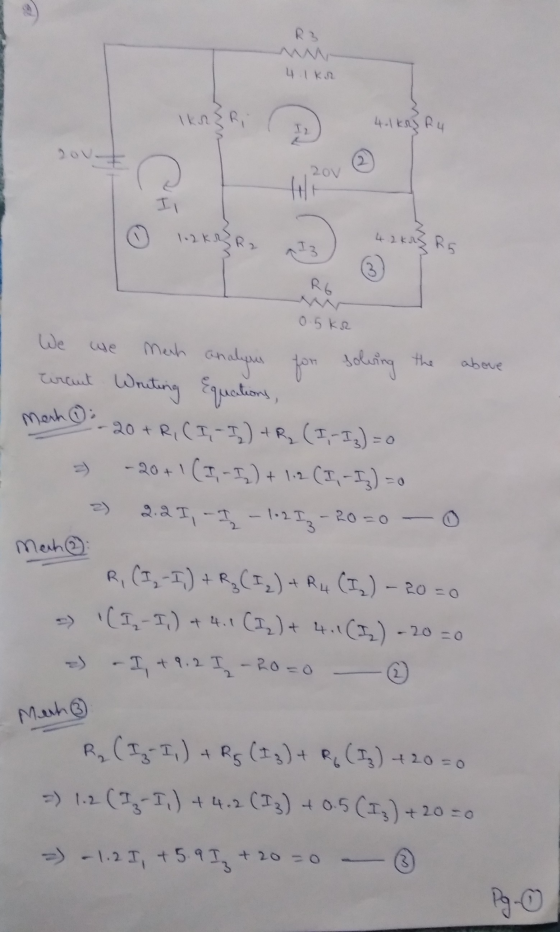

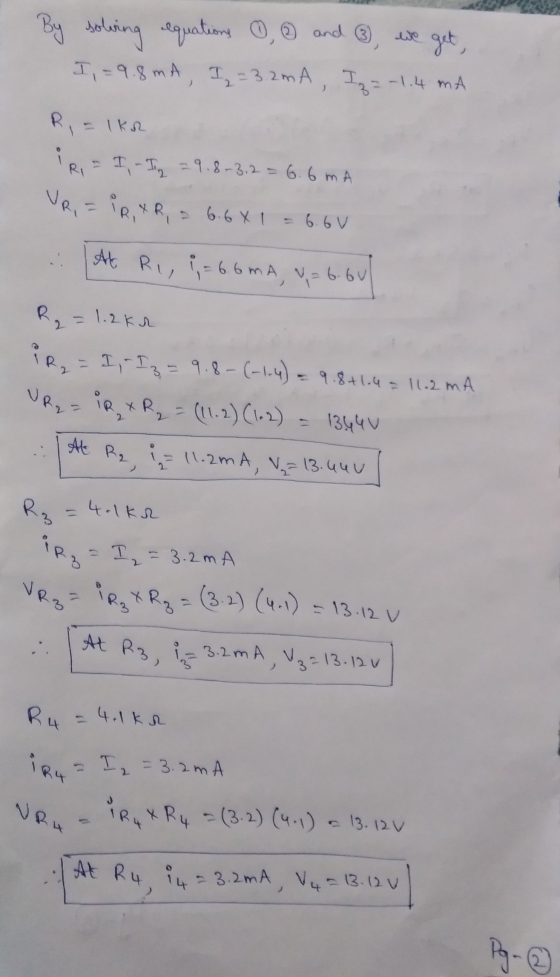

How do I solve this ?

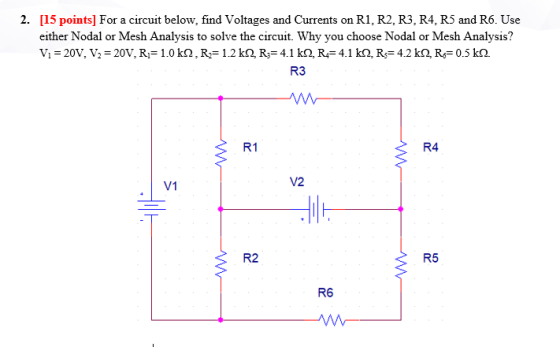

2. [15 points] For a circuit below, find Voltages and...
