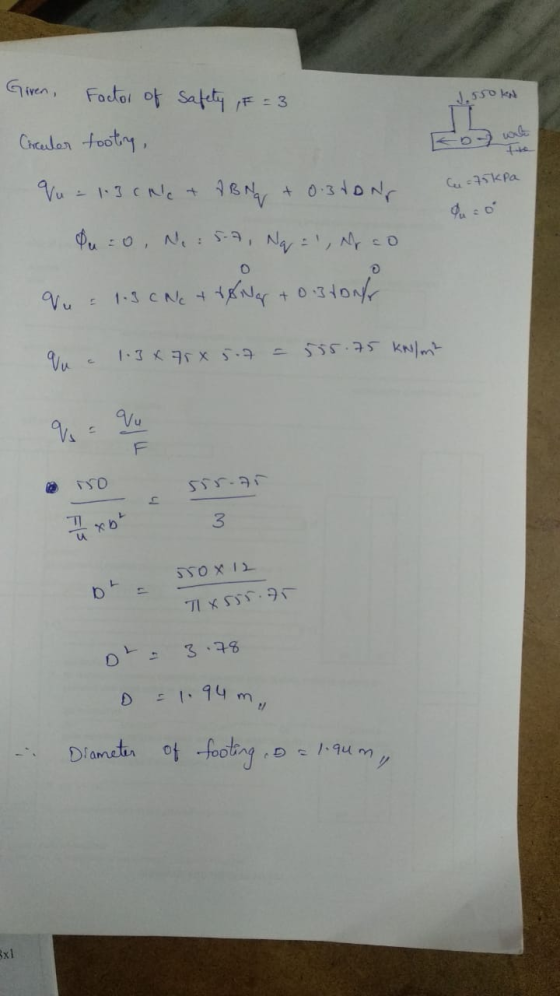

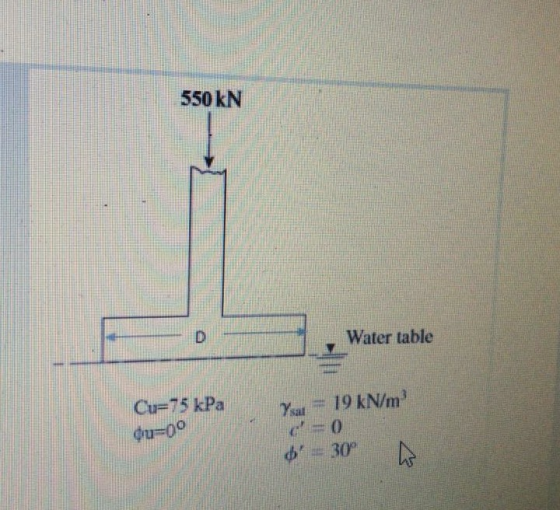

A circular footing is shown in the Figure below. Use
Factor of Safety = 3 and Terzaghi bearing capacity equation
determine the size of the footing for the undrained
condition.
Homework Answers
Add Answer to:
A circular footing is shown in the Figure below. Use
Factor of Safety = 3 and...
A 3 m square footing carries a vertical downward load of 900 kN. The embedment depth...
A 3 m square footing carries a vertical downward load of 900 kN. The embedment depth is 1 m. The soil beneath this footing has the following properties: y = 18 kN/m”, Ysat = 20 kN/mº, c' = 5 kPa, and o' = 36º. The groundwater table is at a depth of 2 m below the ground surface. Compute factor of safety against bearing capacity failure.
Compute the ultimate bearing capacity of a circular footing on a silt, using the following properties:...
Compute the ultimate bearing capacity of a circular footing on a silt, using the following properties: Properties: Soil type: silt Cohesion: 25 kPa Friction Angle: 25 degrees Total unit weight of soil: 18 kN/m3 Expected footing dimensions: 3 m diameter cicular footing for a circurlar tank, bottom of footing at 5 m below ground level Very deep water table Note: - Use both Terzaghi and Meyerhof theories to justify your answer. - If there is anything missing in the problem...
Problem 5-Bearing Capacity of Shallow Foundation (20 pts) For a square footing foundation, the following are...
Problem 5-Bearing Capacity of Shallow Foundation (20 pts) For a square footing foundation, the following are given: B 3.0 m (width), D 1.2 m (depth). Y=20 kN/m3, = 32°, c' = 50 kPa, Use Terzaghi Equation and a factor of safety of 2.5 to determine the allowable bearing capacity and the maximum column load to cause bearing capacity failure. Assume that general shear failure occurs in soil. When Oar C S
Q.2 A strip footing of size of 2 m in width is designed to be founded...
Q.2 A strip footing of size of 2 m in width is designed to be founded at 1 m below ground level. The footing is subject to a vertical and a horizontal load as shown. The ground consists of a uniform deposit of dense soil which has a bulk unit weight of 18 kN/m when above water table and 20 kN/m² when it is saturated. Determine the allowable ultimate bearing capacity and hence the Factor of safety using the general...
The total load of a chimney and its circular footing is 35 MN, as shown in...
The total load of a chimney and its circular footing is 35 MN,
as shown in the figure. Assume the average unit weight of soil
below and above the water table is the same.
Presume: B (diameter) = 8 m, H = 6 m, and D = 2
m.
According to SPT results, the average N-value for sandy soil
below the footing is 20.
Estimate the values of the friction angle and the average unit
weight of soil based on...
QUESTIONG H=35 The circular footing (Diameter 1m) showed in Figure 3 is subjected to inclined loading...
QUESTIONG H=35 The circular footing (Diameter 1m) showed in Figure 3 is subjected to inclined loading and located at a depth of 0.8m below the ground surface in compacted sand (22= 35°, Y bulk = 18kN/m”, Ysar=20kN/m). Ground water table is as shown in the below figure. P .ro Ground surface 0.4m Water table 0.8m 1. Om Figure 3: Circular Footing in Question 6 (a) Determine bearing capacity factors and geometric factors of the foundation. (4 marks) (b) Calculate the...
Question 2 (40% of the total credit) For the rigid strip footing shown in Figure Q2, bearing capa...
Question 2 (40% of the total credit) For the rigid strip footing shown in Figure Q2, bearing capacity failure is t determine the breadth of footing B if the factor of safety agains 3. i. Consider that for both sand and clay Poisson's ratio is 0.33 an Do you think there is a settlement MPa. Calculate the immediate settlement for the footing. problem for this footing if the 3-D consolidation settlement is 10 mm? Discuss yo ur answer. net Pa-...
please with clear and simple steps as possible, also write answer all questions ....thank you Q1....
please with clear and simple steps as possible, also write
answer all questions ....thank you
Q1. A load of 630 kN/m is carried on a strip footing 3 m wide at a depth of 1.5 m in a stiff clay with saturated unit weight 21 kN/m, the water table being at ground level Determine the factor of safety with respect to general shear failure (a) whe105 kN/m, and φ,-0°, (b) when c' = 10 kNm, and = 28。 13.0, 3.5]...
A gravity retaining wall is shown in figure. Use Rankine active earth pressure theory. Determine: a. The factor of safety against overturning b. The factor of safety against sliding c. The factor of safety for bearing capacity d. The pressure on the soil
A gravity retaining wall is shown in figure. Use Rankine active earth pressure theory. Determine:a. The factor of safety against overturningb. The factor of safety against slidingc. The factor of safety for bearing capacityd. The pressure on the soil at the toe and heelAssume, γconcrete = 24 kN/m3. Also, consider the weight of the soil behind the wall and consider the passive earth pressure.
Problem 2 (a) A square footing is to be constructed in sand as shown he sketch below Determine th...
Can someone solve this question step by step pls
Problem 2 (a) A square footing is to be constructed in sand as shown he sketch below Determine the column load, P, which the footing will support when the footing is just safe against bearing capacity failure. Indicate the computations on which your answer is based. (15 pts) (b) Under the applied load, and for the footing width of 10 ft, would you expect the footing settlement to be less than...
A 3 m square footing carries a vertical downward load of 900 kN. The embedment depth is 1 m. The soil beneath this footing has the following properties: y = 18 kN/m”, Ysat = 20 kN/mº, c' = 5 kPa, and o' = 36º. The groundwater table is at a depth of 2 m below the ground surface. Compute factor of safety against bearing capacity failure.
Problem 5-Bearing Capacity of Shallow Foundation (20 pts) For a square footing foundation, the following are given: B 3.0 m (width), D 1.2 m (depth). Y=20 kN/m3, = 32°, c' = 50 kPa, Use Terzaghi Equation and a factor of safety of 2.5 to determine the allowable bearing capacity and the maximum column load to cause bearing capacity failure. Assume that general shear failure occurs in soil. When Oar C S
Q.2 A strip footing of size of 2 m in width is designed to be founded at 1 m below ground level. The footing is subject to a vertical and a horizontal load as shown. The ground consists of a uniform deposit of dense soil which has a bulk unit weight of 18 kN/m when above water table and 20 kN/m² when it is saturated. Determine the allowable ultimate bearing capacity and hence the Factor of safety using the general...
The total load of a chimney and its circular footing is 35 MN,
as shown in the figure. Assume the average unit weight of soil
below and above the water table is the same.
Presume: B (diameter) = 8 m, H = 6 m, and D = 2
m.
According to SPT results, the average N-value for sandy soil
below the footing is 20.
Estimate the values of the friction angle and the average unit
weight of soil based on...
QUESTIONG H=35 The circular footing (Diameter 1m) showed in Figure 3 is subjected to inclined loading and located at a depth of 0.8m below the ground surface in compacted sand (22= 35°, Y bulk = 18kN/m”, Ysar=20kN/m). Ground water table is as shown in the below figure. P .ro Ground surface 0.4m Water table 0.8m 1. Om Figure 3: Circular Footing in Question 6 (a) Determine bearing capacity factors and geometric factors of the foundation. (4 marks) (b) Calculate the...
Question 2 (40% of the total credit) For the rigid strip footing shown in Figure Q2, bearing capacity failure is t determine the breadth of footing B if the factor of safety agains 3. i. Consider that for both sand and clay Poisson's ratio is 0.33 an Do you think there is a settlement MPa. Calculate the immediate settlement for the footing. problem for this footing if the 3-D consolidation settlement is 10 mm? Discuss yo ur answer. net Pa-...
please with clear and simple steps as possible, also write
answer all questions ....thank you
Q1. A load of 630 kN/m is carried on a strip footing 3 m wide at a depth of 1.5 m in a stiff clay with saturated unit weight 21 kN/m, the water table being at ground level Determine the factor of safety with respect to general shear failure (a) whe105 kN/m, and φ,-0°, (b) when c' = 10 kNm, and = 28。 13.0, 3.5]...
Can someone solve this question step by step pls
Problem 2 (a) A square footing is to be constructed in sand as shown he sketch below Determine the column load, P, which the footing will support when the footing is just safe against bearing capacity failure. Indicate the computations on which your answer is based. (15 pts) (b) Under the applied load, and for the footing width of 10 ft, would you expect the footing settlement to be less than...
