ECE question

P and N type semiconductors are formed with an acceptor and donor concentration of 1×1017 cm-3 and 1×1016 cm-3 , respectively, intrinsic carrier concentration is 1×1010 cm-3 and relative permittivity (єs ) is 12є0 @ 300K. Given, permittivity of free space (є0 ) 8.85 × 10-12 Farad/meter, KT @ 300K 0.0259 eV, q = 1.602 × 10-19 coulombs A. Calculate the following quantities @ 300K 1. Potential Drop (in V) and Maximum Electric Field (in V/cm) across PN-junction [2 +...
ECE question

Determine the stability of the system having characteristics equation as s6+s5+5s4+3s3+2s2-4s-8=0 and find the number of roots in the left , right and on the imaginary axis. Use Matlab and verify.
ECE question

An armature controlled d.c motor is supplied in series with a resistance from a 24 d.c. supply. The motor takes a current of 5A on stalling and the stalling torque being 0.915 N-m. The motor runs at 1000rpm taking a current of 1 A. The moment of inertia and coefficient of viscous friction are 4 x 10^3 kg-m^2 and 1.5 x 10^-3 Nm/(rad/sec) respectively. Determine the transfer function of the motor

ECE question

Screenshot (474).png
ECE question

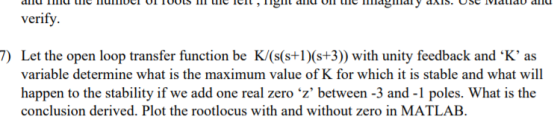

Screenshot (474).pngLet the open loop transfer function be K/(s(s+1)(s+3)) with unity feedback and ‘K’ as variable determine what is the maximum value of K for which it is stable and what will happen to the stability if we add one real zero ‘z’ between -3 and -1 poles. What is the conclusion derived. Plot the rootlocus with and without zero in MATLAB.
ECE question

Let the open loop transfer function be K/(s(s+1)(s+3)) with unity feedback and ‘K’ as variable determine what is the maximum value of K for which it is stable and what will happen to the stability if we add one real zero ‘z’ between -3 and -1 poles. What is the conclusion derived. Plot the rootlocus with and without zero in MATLAB.

ECE question

Let the open loop transfer function be K/(s(s+1)(s+3)) with unity feedback and ‘K’ as variable determine what is the maximum value of K for which it is stable and what will happen to the stability if we add one real zero ‘z’ between -3 and -1 poles. What is the conclusion derived. Plot the rootlocus with and without zero in MATLAB.
ECE question

Prove the recurrence relation xPn(x) = n + 1 2n + 1 Pn+1(x) + n 2n + 1 Pn−1(x), and evaluate the following integral using the orthogonal property of Legendre polynomials Z 1 −1 xPn(x)Pn−1(x)dx
Electronic ECE

P and N type semiconductors are formed with an acceptor and donor concentration of 1×1017 cm-3 and 1×1016 cm-3 , respectively, intrinsic carrier concentration is 1×1010 cm-3 and relative permittivity (єs ) is 12є0 @ 300K. Given, permittivity of free space (є0 ) 8.85 × 10-12 Farad/meter, KT @ 300K 0.0259 eV, q = 1.602 × 10-19 coulombs2. Majority and Minority Electron density (in cm-3 ) & Hole density (in cm-3 ) under equilibrium B. Draw the following profiles @ 300K 3....

Homework-ECE 410 Netw' ECE 41O Fall 2018 ロ ECE 41Ο Homework 4.p 1+ Lecture × ^...

Homework-ECE 410 Netw' ECE 41O Fall 2018 ロ ECE 41Ο Homework 4.p 1+ Lecture × ^ ← → Ο A https uic lackboardcom/bb s da /pid 6169141-dt-content rid-629054512 courses 2018 allece 410 11 153 ECE%204 10 620Ho ork%204df ☆ 延 e e Amazon.com-Onlin Priceline.com TripAdvisor ECE 410, Homework 4. Using the admittance matrix method, find an expression for Vout/Vn in terms of admittances , y2,)%Yoys, yc) and op-amp open-loop voltage gain A in the circuit below. Show all work. уз...
