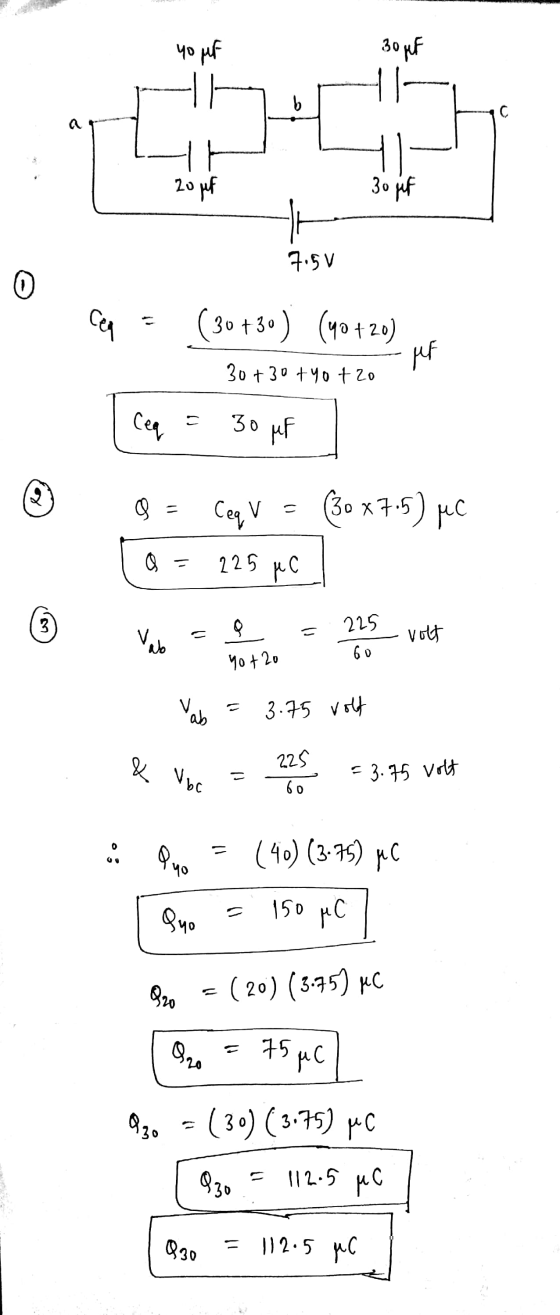

3. In the following circuit of capacitors: 40uF 30uF 20uF 30uF 7.5 V • What is...
40uF 30uF PV 20uF 30uF 7.5 V OV What is the value of the unknown voltage...
40uF 30uF PV 20uF 30uF 7.5 V OV What is the value of the unknown voltage indicated in the picture. Assume that the wire connected to the negative terminal of the power supply is atov. 5V O 7.5 V O correct answer not shown O 3.257 OOV
The circuit in the figure below contains a 90.0 V battery and four capacitors. In the...
The circuit in the figure below contains a 90.0 V battery and four capacitors. In the top parallel branch, there are two capacitors, one with a capacitance of C1 = 3.00 µF and another with a capacitance of 6.00 µF. In the bottom parallel branch, there are two more capacitors, one with a capacitance of 2.00 µF and another with a capacitance of C2 = 6.00 µF. A circuit consists of a 90.0 V battery and four capacitors. The wire...
Problem 1 Consider the following circuit with four fully charged parallel-plate capacitors V= 20.0 V Figure...
Problem 1 Consider the following circuit with four fully charged parallel-plate capacitors V= 20.0 V Figure 7: Problem . (a) Find the equivalent capacitance of this circuit. (6pt) (b) Find the charge on and potential difference across each capacitor. (10pt) (c) Find the energy stored in each capacitor. (4pt) Bonus: If the space between the plates of capacitor C1 is filled with a dielectric with the dielectric constant K = 3 and simultaneously the distance between the plates of capacitor...
The circuit in the figure below contains a 90.0 V battery and four capacitors. In the...
The circuit in the figure below contains a 90.0 V battery and four capacitors. In the top parallel branch, there are two capacitors, one with a capacitance of C = 1.00 pF and another with a capacitance of 6.00 pF. In the bottom parallel branch, there are two more capacitors, one with a capacitance of 2.00 pF and another with a capacitance of C2 = 3.00 uF. C 6.00 uF 2.00 uF 90.0 V (a) What is the equivalent capacitance...
Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values...
Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values G = 22.5 UF, C = 45.5 pF, C; = 50.5 pF, and Cd = 40.5 pF, and the power supply is at voltage V = 23.5 V. What is the equivalent capacitance of the circuit? equivalent capacitance: What is the charge on capacitor C2? charge on C: What is the potential difference across capacitor C;? potential difference across C3: What is the potential...
Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values...
Four capacitors are arranged in the circuit shown in the figure.
The capacitors have the values C1 = 27.5 μF, C2 = 45.5 μF, C3 =
50.5 μF, C4 = 40.5 μF, and the power supply is at voltage V = 16.5
V. What is the equivalent capacitance of the circuit?
Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C1-27.5 μF, C2 = 45.5 μF, C3 = 50.5 F, C.-40.5 and the...
3. Assume this circuit contains an ideal battery and that enough time passes that the capacitors...
3. Assume this circuit contains an ideal battery and that enough time passes that the capacitors in this circuit reach their maximum charge. a) What is the equivalent capacitance? b) What is the charge on the 12.0 pF capacitor? c) If each capacitor was originally air filled and now has a polysterene dielectric added that completely fills the space between the plates, what will be the new equivalent capacitance of the circuit? 12.0 uF HH 42.0 F 30.0 uF HH...
20 of 22 > Four capacitors are arranged in the circuit shown in the figure. The...
20 of 22 > Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C 26.5 uF, C2 45.5 uF, C3 50.5 pF, and C4 40.5 uF, and the power supply is at voltage V 31.5 V C What is the equivalent capacitance of the circuit? C equivalent capacitance: 8.3 V What is the charge capacitor C2? on C. charge C2: 5.75 C on What is the potential difference across capacitor C3? about us...
The circuit in the figure below contains a 9.00 v battery and four capacitors. The two...
The circuit in the figure below contains a 9.00 v battery and four capacitors. The two capacitors on the left and right both have same capacitance of C, -14.20. The capacitors in the top two branches have capacitances of 6.00 pF and C - 28.20 F 6.00 с. 9.00 V (a) What is the equivalent capacitance (in pf) of all the capacitors in the entire circuit? (b) What is the charge (in) stored by each capacitor? right 34.20 pf capacitor...
A circuit is constructed with five capacitors and a battery as shown. The values for the...
A circuit is constructed with five capacitors and a battery as
shown. The values for the capacitors are: C1 =
C5 = 4.2 μF, C2 = 1 μF, C3 = 5.8
μF, and C4 = 4.4 μF. The battery voltage is V = 12
V.
1)
What is Cab, the equivalent capacitance between
points a and b?μF
2)
What is Cac, the equivalent capacitance between
points a and c?
3)
What is Q5, the charge on capacitor
C5?μC
4)
What...
40uF 30uF PV 20uF 30uF 7.5 V OV What is the value of the unknown voltage indicated in the picture. Assume that the wire connected to the negative terminal of the power supply is atov. 5V O 7.5 V O correct answer not shown O 3.257 OOV
Problem 1 Consider the following circuit with four fully charged parallel-plate capacitors V= 20.0 V Figure 7: Problem . (a) Find the equivalent capacitance of this circuit. (6pt) (b) Find the charge on and potential difference across each capacitor. (10pt) (c) Find the energy stored in each capacitor. (4pt) Bonus: If the space between the plates of capacitor C1 is filled with a dielectric with the dielectric constant K = 3 and simultaneously the distance between the plates of capacitor...
The circuit in the figure below contains a 90.0 V battery and four capacitors. In the top parallel branch, there are two capacitors, one with a capacitance of C = 1.00 pF and another with a capacitance of 6.00 pF. In the bottom parallel branch, there are two more capacitors, one with a capacitance of 2.00 pF and another with a capacitance of C2 = 3.00 uF. C 6.00 uF 2.00 uF 90.0 V (a) What is the equivalent capacitance...
Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values G = 22.5 UF, C = 45.5 pF, C; = 50.5 pF, and Cd = 40.5 pF, and the power supply is at voltage V = 23.5 V. What is the equivalent capacitance of the circuit? equivalent capacitance: What is the charge on capacitor C2? charge on C: What is the potential difference across capacitor C;? potential difference across C3: What is the potential...
Four capacitors are arranged in the circuit shown in the figure.
The capacitors have the values C1 = 27.5 μF, C2 = 45.5 μF, C3 =
50.5 μF, C4 = 40.5 μF, and the power supply is at voltage V = 16.5
V. What is the equivalent capacitance of the circuit?
Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C1-27.5 μF, C2 = 45.5 μF, C3 = 50.5 F, C.-40.5 and the...
3. Assume this circuit contains an ideal battery and that enough time passes that the capacitors in this circuit reach their maximum charge. a) What is the equivalent capacitance? b) What is the charge on the 12.0 pF capacitor? c) If each capacitor was originally air filled and now has a polysterene dielectric added that completely fills the space between the plates, what will be the new equivalent capacitance of the circuit? 12.0 uF HH 42.0 F 30.0 uF HH...
20 of 22 > Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C 26.5 uF, C2 45.5 uF, C3 50.5 pF, and C4 40.5 uF, and the power supply is at voltage V 31.5 V C What is the equivalent capacitance of the circuit? C equivalent capacitance: 8.3 V What is the charge capacitor C2? on C. charge C2: 5.75 C on What is the potential difference across capacitor C3? about us...
The circuit in the figure below contains a 9.00 v battery and four capacitors. The two capacitors on the left and right both have same capacitance of C, -14.20. The capacitors in the top two branches have capacitances of 6.00 pF and C - 28.20 F 6.00 с. 9.00 V (a) What is the equivalent capacitance (in pf) of all the capacitors in the entire circuit? (b) What is the charge (in) stored by each capacitor? right 34.20 pf capacitor...
A circuit is constructed with five capacitors and a battery as
shown. The values for the capacitors are: C1 =
C5 = 4.2 μF, C2 = 1 μF, C3 = 5.8
μF, and C4 = 4.4 μF. The battery voltage is V = 12
V.
1)
What is Cab, the equivalent capacitance between
points a and b?μF
2)
What is Cac, the equivalent capacitance between
points a and c?
3)
What is Q5, the charge on capacitor
C5?μC
4)
What...
