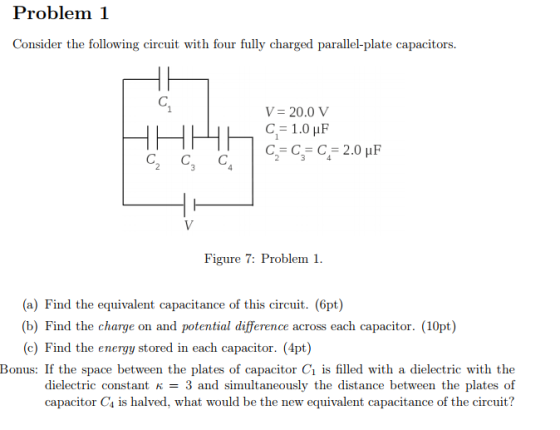

Problem 1 Consider the following circuit with four fully charged parallel-plate capacitors V= 20.0 V Figure...
The circuit in the figure below contains a 90.0 V battery and four capacitors. In the...
The circuit in the figure below contains a 90.0 V battery and four capacitors. In the top parallel branch, there are two capacitors, one with a capacitance of C1 = 3.00 µF and another with a capacitance of 6.00 µF. In the bottom parallel branch, there are two more capacitors, one with a capacitance of 2.00 µF and another with a capacitance of C2 = 6.00 µF. A circuit consists of a 90.0 V battery and four capacitors. The wire...
5. A parallel combination of two identical 2.0 uF parallel plate capacitors is connected to a...
5. A parallel combination of two identical 2.0 uF parallel plate capacitors is connected to a 100-V battery. The battery is then removed and the separation between the plates of one of the capacitors is doubled. Find the charge on each capacitor 6. For the circuit shown below, Find: (a) The equivalent capacitance (b) The charge on each capacitor (c) The voltage across each capacitor (d) The total energy stored 0.3 F 10.0V 1.0 uF 0.25 uf
1. Identical capacitors A and B are fully charged by the same battery. Capacitor A is...
1. Identical capacitors A and B are fully charged by the same
battery. Capacitor A is disconnected from the battery while
capacitor B remains connected to it. Identical dielectric slabs are
inserted between the plates of the capacitors. Which of the
following is true?
2. A parallel plate capacitor (shown) is fully charged and
remains connected to the battery. A conducting plate is inserted
into the gap between the two plates, partially filling the gap.
Which of the following is...
Two air-filled parallel-plate capacitors with capacitances C1 and C2 are connected in series to a battery...
Two air-filled parallel-plate capacitors with capacitances C1 and C2 are connected in series to a battery that has voltage V; C1 = 3.00 μF and C2 = 6.00 μF. The electric field between the plates of capacitor C2 is E02. While the two capacitors remain connected to the battery, a dielectric with dielectric constant K = 4 is inserted between the plates of capacitor C1, completely filling the space between them. After the dielectric is inserted in C1, the electric...
1. Th ree parallel plate capacitors, each being composed of two square plates of 10.0 cm...
1. Th ree parallel plate capacitors, each being composed of two square plates of 10.0 cm on a side, C1 has an air gap of 1 mm, C2 has the 1 mm separation between the plates filled with a dielectric material K 1.5 and Ca has the 0.5 mm separation filled with a dielectric material K 2. a) (10 points) Calculate the values of the three capacitances C1, C2 and Ca (10 points) if the capacitors are arranged like in...
The circuit in the figure below contains a 90.0 V battery and four capacitors. In the...
The circuit in the figure below contains a 90.0 V battery and four capacitors. In the top parallel branch, there are two capacitors, one with a capacitance of C = 1.00 pF and another with a capacitance of 6.00 pF. In the bottom parallel branch, there are two more capacitors, one with a capacitance of 2.00 pF and another with a capacitance of C2 = 3.00 uF. C 6.00 uF 2.00 uF 90.0 V (a) What is the equivalent capacitance...
Fig. 1 shows a circuit of four capacitors connected to a battery with a potential difference...
Fig. 1 shows a circuit of four capacitors connected to a
battery with a potential difference ?_0. Capacitor 4 is filled with
a dielectric with 0 dielectric constant ? = 4. The capacitance
value of the capacitors is equal ?1 =?2 = ?3 = ?. The capacitance
of capacitor 4 is also equal to ? / 2 when in the middle of
their plates there is no dielectric. a) Calculate the free
charge stored in the capacitor 4. Its
answer...
A parallel-plate capacitor with air between its plates is connected to an 80.0 V battery. When...
A parallel-plate capacitor with air between its plates is connected to an 80.0 V battery. When fully charged, the capacitor has an energy of 130 nJ. Without disconnecting the battery, a slab of dielectric is inserted between the plates of the capacitor, fully filling the gap. The energy stored in the capacitor is now 410 nJ. The area of each plate of the capacitor is 0.005 m2. (e) What is the electric field in the air-filled capacitor? (f) What is...
Question 4 (3 points) Two parallel plate capacitors are labeled A and B. Capacitor A is...
Question 4 (3 points) Two parallel plate capacitors are labeled A and B. Capacitor A is filled with air and has an area of 0.0015 m2 and a separation between the plates of 1.3 mm. Capacitor B is filled with mylar and has an area of 0.00075 m2 and a separation between the plates of 0.2 mm. What is the total capacitance of A and B if they are combined in series? What is the total capacitance of A and...
A parallel-plate capacitor with air between its plates is connected to an 80.0 V battery. When...
A parallel-plate capacitor with air between its plates is connected to an 80.0 V battery. When fully charged, the capacitor has an energy of 130 nJ. Without disconnecting the battery, a slab of dielectric is inserted between the plates of the capacitor, fully filling the gap. The energy stored in the capacitor is now 410 nJ. (c) What is the dielectric constant of the dielectric? (d) What is the charge on the dielectric-filled capacitor?
5. A parallel combination of two identical 2.0 uF parallel plate capacitors is connected to a 100-V battery. The battery is then removed and the separation between the plates of one of the capacitors is doubled. Find the charge on each capacitor 6. For the circuit shown below, Find: (a) The equivalent capacitance (b) The charge on each capacitor (c) The voltage across each capacitor (d) The total energy stored 0.3 F 10.0V 1.0 uF 0.25 uf
1. Identical capacitors A and B are fully charged by the same
battery. Capacitor A is disconnected from the battery while
capacitor B remains connected to it. Identical dielectric slabs are
inserted between the plates of the capacitors. Which of the
following is true?
2. A parallel plate capacitor (shown) is fully charged and
remains connected to the battery. A conducting plate is inserted
into the gap between the two plates, partially filling the gap.
Which of the following is...
1. Th ree parallel plate capacitors, each being composed of two square plates of 10.0 cm on a side, C1 has an air gap of 1 mm, C2 has the 1 mm separation between the plates filled with a dielectric material K 1.5 and Ca has the 0.5 mm separation filled with a dielectric material K 2. a) (10 points) Calculate the values of the three capacitances C1, C2 and Ca (10 points) if the capacitors are arranged like in...
The circuit in the figure below contains a 90.0 V battery and four capacitors. In the top parallel branch, there are two capacitors, one with a capacitance of C = 1.00 pF and another with a capacitance of 6.00 pF. In the bottom parallel branch, there are two more capacitors, one with a capacitance of 2.00 pF and another with a capacitance of C2 = 3.00 uF. C 6.00 uF 2.00 uF 90.0 V (a) What is the equivalent capacitance...
Fig. 1 shows a circuit of four capacitors connected to a
battery with a potential difference ?_0. Capacitor 4 is filled with
a dielectric with 0 dielectric constant ? = 4. The capacitance
value of the capacitors is equal ?1 =?2 = ?3 = ?. The capacitance
of capacitor 4 is also equal to ? / 2 when in the middle of
their plates there is no dielectric. a) Calculate the free
charge stored in the capacitor 4. Its
answer...
