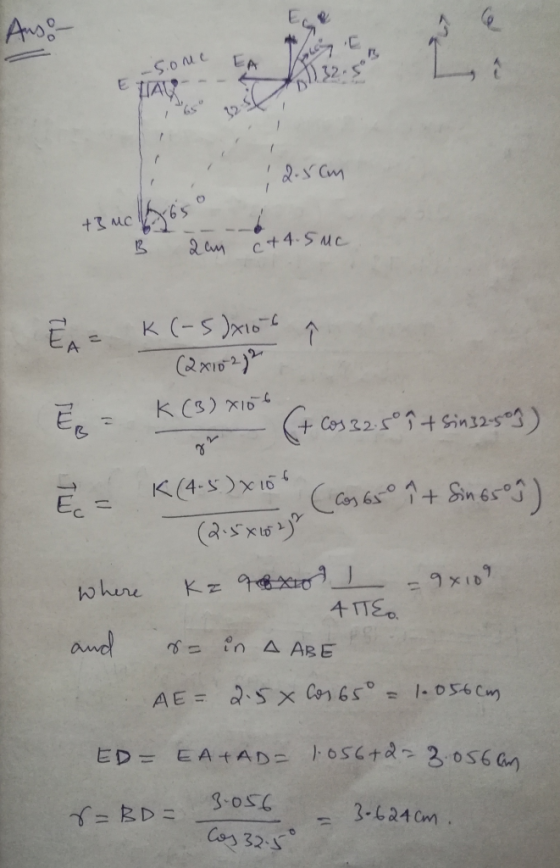

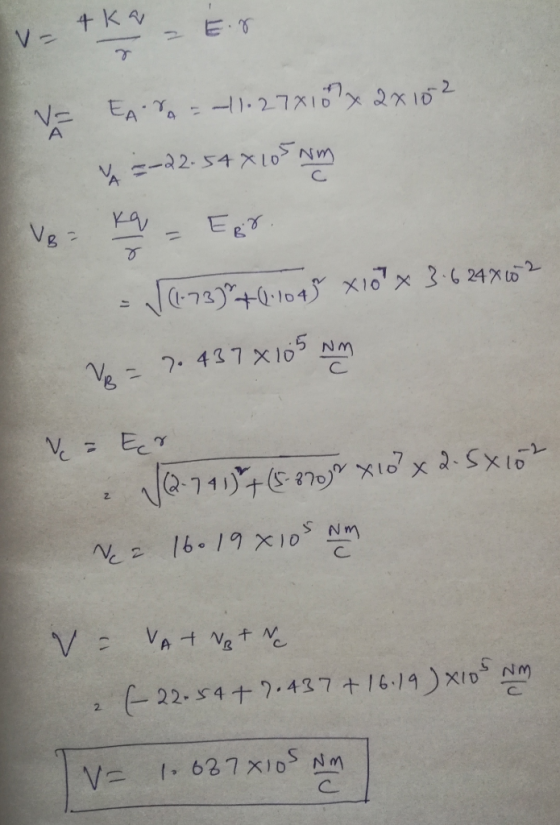

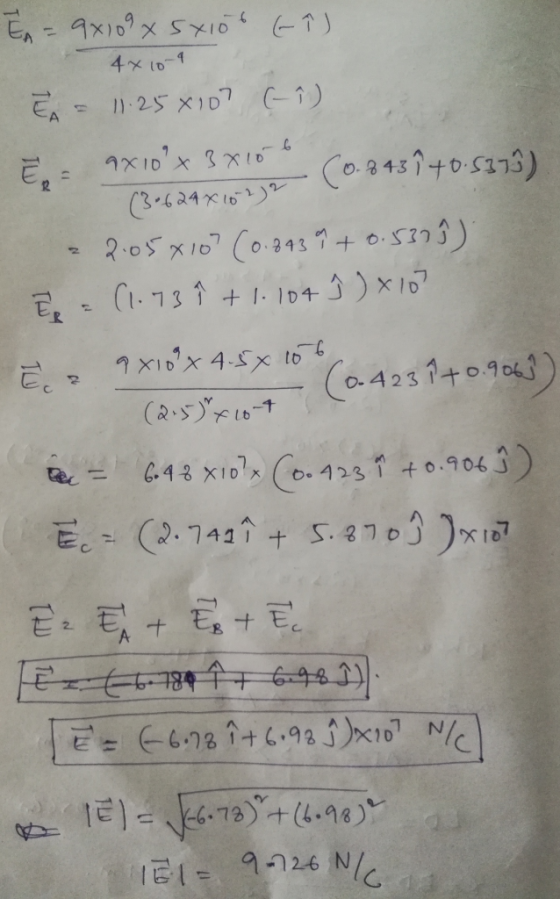

All 3 charges are in micro columbs also know as to the power of 10^-6

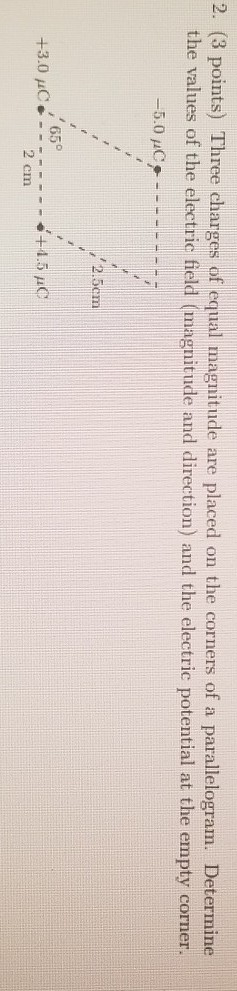

The three equal magnitudes is most likely a typo, please solve ignoring this issue.
Homework Answers
Add Answer to:
All 3 charges are in micro columbs also know as to the
power of 10^-6
The...
Two point charges have a charge of +1.7 microcoulumbs each. One of the charges is placed...
Two point charges have a charge of +1.7 microcoulumbs each. One of the charges is placed in the upper left corner of a square and the other is placed in the lower right corner of the square. A third charge is then fixed at the center of the square. The third charge causes the electric potentials at the empty corners of the square to change signs without changing magnitudes. a. Draw a diagram. b. Determine the electric potential at one...
Two point charges have a charge of +1.7 microcoulumbs each. One of the charges is placed...
Two point charges have a charge of +1.7 microcoulumbs each. One of the charges is placed in the upper left corner of a square and the other is placed in the lower right corner of the square. A third charge is then fixed at the center of the square. The third charge causes the potentials at the empty corners of the square to change signs without changing magnitudes. a. Draw a diagram. b. Determine the potential at one of the...
Three charges are fixed in place as shown. The distance between charges +? and −? is...
Three charges are fixed in place as shown. The distance between charges +? and −? is equal to the distance between charges −3? and −? . System of 3 charges situated on 3 corners of a square pattern. Charge plus Q in the upper left corner. Charge minus Q in the upper right corner. Charge minus 3 Q in the lower right corner. Lower left corner is empty. Identify which of the statements best describes the magnitudes of the forces...
1. Three charges are placed at the corners of a square of side 20 cm with...
1. Three charges are placed at the corners of a square of side 20 cm with 3.0 μC at (0,0), 3.0 μC at (0,1) , and - 3.0 μC at (1,0). Find the magnitude and direction of the electric field at the fourth corner (1,1). step by step please C:
Three point-like charges are placed at the corners of a rectangle as shown in the figure,...
Three point-like charges are
placed at the corners of a rectangle as shown in the figure, a =
22.0 cm and b = 68.0 cm. Find the magnitude of the electric field
at the empty corner. Let q 1 = +24.0 µC, q 2 = ?31.0 µC, q 3 =
+35.0 µC.
5. Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = 22.0 cm and b = 680 cm. Find the...
Calculate the magnitude at one corner of a square that has sides length ?, if the...
Calculate the magnitude at one corner of a square that has sides length ?, if the other three corners each have a charge +2?. Be sure to start with a diagram of the charges with a coordinate system. b) What is the electric potential at that corner? c) Draw an electric field diagram for the system of charges. With a different color pen or pencil, draw in the equipotential lines. d) What is the force on a test charge +?...
a) Calculate the magnitude of the electric field at one corner of a square that has...
a) Calculate the magnitude of the electric field at one corner of a square that has sides length a, if the other three corners each have a charge +2q. Be sure to start with a diagram of the charges with a coordinate system. b) What is the electric potential at that corner? c) Draw an electric field diagram for the system of charges. With a different color pen or pencil, draw in the equipotential lines. d) What is the force...
Four charges with equal magnitudes of 10.4 × 10-12 C are placedat the corners of...
Four charges with equal magnitudes of 10.4 × 10-12 C are placed
at the corners of a rectangle. The lengths of the sides of the
rectangles are 2.69 cm and 5.16 cm. Find the magnitude of the
electric field at the center of the rectangle in Figures a and
b.
Charges of 5.1 x 10-6 C and -8.6 x 10-6 C are placed at two corners...
Charges of 5.1 x 10-6 C and -8.6 x 10-6 C are placed at two corners of an equilateral triangle with sides of 0.12 m. What is the magnitude of the electric field created by these two charges at the third corner of the triangle?
I only need the answer and explanation for charge A Three point charges have equal magnitudes,...
I only need the answer and explanation for charge A
Three point charges have equal magnitudes, two being positive and one negative. These charges are fixed to the corners of an equilateral triangle, as the drawing shows. The magnitude of each of the charges is 3.0 C, and the lengths of the sides of the triangle are 1.5 cm. Calculate the magnitude of the net force that each charge experiences. (a) ta =
Three point-like charges are
placed at the corners of a rectangle as shown in the figure, a =
22.0 cm and b = 68.0 cm. Find the magnitude of the electric field
at the empty corner. Let q 1 = +24.0 µC, q 2 = ?31.0 µC, q 3 =
+35.0 µC.
5. Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = 22.0 cm and b = 680 cm. Find the...
a) Calculate the magnitude of the electric field at one corner of a square that has sides length a, if the other three corners each have a charge +2q. Be sure to start with a diagram of the charges with a coordinate system. b) What is the electric potential at that corner? c) Draw an electric field diagram for the system of charges. With a different color pen or pencil, draw in the equipotential lines. d) What is the force...
Four charges with equal magnitudes of 10.4 × 10-12 C are placed
at the corners of a rectangle. The lengths of the sides of the
rectangles are 2.69 cm and 5.16 cm. Find the magnitude of the
electric field at the center of the rectangle in Figures a and
b.
I only need the answer and explanation for charge A
Three point charges have equal magnitudes, two being positive and one negative. These charges are fixed to the corners of an equilateral triangle, as the drawing shows. The magnitude of each of the charges is 3.0 C, and the lengths of the sides of the triangle are 1.5 cm. Calculate the magnitude of the net force that each charge experiences. (a) ta =
