10) For circuit shown determine Vo. Vo and I using a piecewise linear model with Vox-...

Question

Question

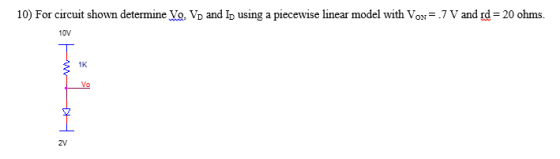

10) For circuit shown determine Vo. Vo and I using a piecewise linear model with Vox- .7 V and rd- 20 ohms 10V 1K 2V

engineering Electrical-Engineering

Answer 1

Similar Homework Help Questions

do appreciate the process in details and neat (b) The circuit shown in Figure 2 utilizes two diodes, Di and D2, a R, resistor R1 = 10 Ω. Assume a piecewise linear (PWL) model for the diode that ha...

do appreciate the process in details and neat (b) The circuit shown in Figure 2 utilizes two diodes, Di and D2, a R, resistor R1 = 10 Ω. Assume a piecewise linear (PWL) model for the diode that has VD 07 and r-5 Ω. Draw the output voltage, vo, as function of the input voltage, Vin, characteristics of this circuit at point assuming the input voltage has a peak-to-peak voltage of 3 Volt. There is no need to draw the...
Using KCL and KVL, to calculate the voltage Vo in the circuit shown below 1 ΚΩ...

Using KCL and KVL, to calculate the voltage Vo in the circuit shown below 1 ΚΩ 1 ΚΩ V 2 ΚΩ ΛΜ 1 mA 1 ΚΩs Vo 1 ΚΩ 1 ΚΩ -- 2V 1000 32 ΚΩ 4 mA
Problem 4 Using nodal analysis, determine Vo in the circuit. 20 ? 10? Ix 10? 20...

Problem 4 Using nodal analysis, determine Vo in the circuit. 20 ? 10? Ix 10? 20 ? 40 V 4 Lx

4. (20 points) Sketch and clearly label the transfer characteristic of the circuit for -25 V SVI ...

4. (20 points) Sketch and clearly label the transfer characteristic of the circuit for -25 V SVI S +25 V. Assume that the diodes can be represented by a piecewise-linear model with VDo 0.65V and n) 20 Ω. Assuming the specified Zenervo tage o V is measured at a currenL of 10 mA and that 20 Ω, represent the Zener by a piecewise-linear model. Find the following: a. Vu (when Vi =-6 V) is: b. Vo (when Vi 20 V)...
Consider the oscillator circuit shown below. The op amp i s ideal Rb Vo R2 = 10 kΩ L2 100 mH R1 1...

Consider the oscillator circuit shown below. The op amp i s ideal Rb Vo R2 = 10 kΩ L2 100 mH R1 1 k2 L1 = 10 mH a. What is the frequency of oscillation in Hz? b. Specify the required value of Rb sustain oscillations. c. A limiter circuit is added to oscillator by separating Rb into two series resistors Rb1 and Rb2 as shown in the next page along with two anti-parallel diodes in shunt with Rb2. determine...
-. - . and vo, using the ideal op-amp model. Θ Α Findio 5 kΩ 10...

-. - . and vo, using the ideal op-amp model. Θ Α Findio 5 kΩ 10 ΚΩ 1 + 2.5 kΩ 2V Ε 2 V + 2 kΩ) να (+) 1V

Ql. Find Vo in the circuit with (i) Ideal diode model. (ii) PWL model (Vf: 0.6...

Ql. Find Vo in the circuit with (i) Ideal diode model. (ii) PWL model (Vf: 0.6 V, r,-10 Ω). 100 Ω 100 Ω D1 100 Ω 1 v 10 V( 10 mA 100 Ω
(2) For the negative logic gate shown below, determine the output Vo for each input combination...

(2) For the negative logic gate shown below, determine the output Vo for each input combination shown in the table. Hence, identify the logic function implemented by this circuit. 2.2 kΩ 0 -5 V (3) For the circuit shown below, (a) determine VL, IL, Iz, and IR if RL-180 2 (b) Repeat part (a) if R 470 2 (c) Determine the value of RL that will establish maximum power conditions for the Zener diode. (d) Determine the minimum value of...
Q.1. (a) For the following clipper circuit, plot the output versus time. The diode in the...

Q.1. (a) For the following clipper circuit, plot the output versus time. The diode in the circuit has piecewise linear parameters Vs = 0.7 V and 1= 10 (10) R=1002 w DI VO 30 V + 10 V -30 vf (b) Sketch the output voltage V, versus time for the following circuit with the input voltage shown. Assume V = 0 and assume the RC time constant is large. (15) VA -H VO 20 V с Vg=5V = -20 V

s Find vo in the circuit shown in Fig.P3. using Thevenin's Theorem. vA/5 10? + DA...

s Find vo in the circuit shown in Fig.P3. using Thevenin's Theorem. vA/5 10? + DA 10? 50 V 30 ? 39 ? 78 ?
