Composite materials Glass fibers reinforce nylon 6. If nylon contains 30% by volume of glass fibers...
Composite materials

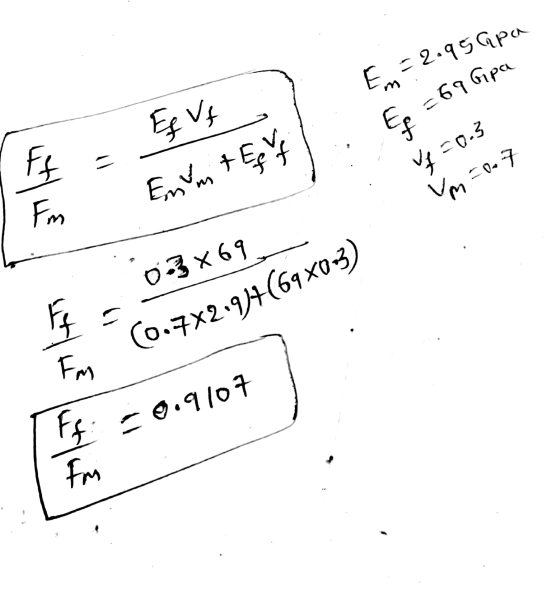

Glass fibers reinforce nylon 6. If nylon contains 30% by volume of
glass fibers E, what fraction of the applied force does glass
fibers withstand?
Homework Answers
Add Answer to:
Composite materials
Glass fibers reinforce nylon 6. If nylon contains 30% by volume of
glass fibers...
In an aligned and continuous carbon fiber-reinforced nylon 6,6 composite, the fibers are to carry 94...
In an aligned and continuous carbon fiber-reinforced nylon 6,6 composite, the fibers are to carry 94 % of a load applied in the longitudinal direction. Modulus of Elasticity [GPa(psi)] Tensile Strength [MPa(psi)] Carbon fiber 260 (37 ×106) 4000 (5.8 ×105) Nylon 6,6 2.8 (4.0 ×105) 76 (11,000) (a) Using the data provided, determine the volume fraction of fibers that will be required. (b) What will be the tensile strength of this composite? Assume that the matrix stress at fiber failure...
Problem 8 10 pts) A continuous and aligned fiber-reinforced composite part has cross sectional area of 300 mm2 and consists of35 vol% glass fibers and 65 vol% of a nylon 6,6 matrix. If a longitud...
Problem 8 10 pts) A continuous and aligned fiber-reinforced composite part has cross sectional area of 300 mm2 and consists of35 vol% glass fibers and 65 vol% of a nylon 6,6 matrix. If a longitudinal tensile load of 50kN is applied to the composite, determine (a) the longitudinal modulus of elasticity of the composite, (b) the longitudinal strain in the composite, (c) the stress in each phase (fiber and matrix), and (d) the magnitude of the load carried by each...
A composite material of graphite-filled nylon is designed with a mixture of 65% of graphite by...
A composite material of graphite-filled nylon is designed with a mixture of 65% of graphite by volume. Given the densities of the consituent materials below: Material Density (8 cm) Young's modulus, E (pa) Graphite 1.75 224 Nylon 1.36 2.5 a) Calculate the density (Protal of the resultant composite material to two decimal places. Profal = 1.59 8 cm3 b) What is the weight fraction of nylon to 2 decimal places? 0.40 % c) What is the Young's modulus (E) of...
A composite of polycrystalline spinel (Young's modulus = 277 GPa) and aligned continuous Kevlar fibers is...
A composite of polycrystalline spinel (Young's modulus = 277 GPa) and aligned continuous Kevlar fibers is desired in order to increase the capacity of the spinel to withstand impact. Kevlar fibers have a tensile strength of 3.6 GPa and a Young's modulus of 125 GPa. For a desired composite with Young's modulus of 200 GPa, what is the fiber volume fraction? Use isostrain condition.
Q1: A fiberglass composite is composed of a matrix of vinyl ester and reinforcing fibers of...
Q1: A fiberglass composite is composed of a matrix of vinyl ester and reinforcing fibers of E-glass. The volume fraction of E-glass is 31%. The remainder is vinyl ester. The density of the vinyl ester is 0.651 g/cm3, and its modulus of elasticity is 4.89 GPa. The density of E-glass is 2.685 g/cm3, and its modulus of elasticity is 71 GPa. A section of composite 1.00 cm by 25.00 cm by 200.00 cm is fabricated with the E-glass fibers running...
An injection molded rectangular bar is constituted of 20% by volume of perfectly aligned short glass...
An injection molded rectangular bar is constituted of 20% by volume of perfectly aligned short glass fibers dispersed in Nylon 6,6. The bar is uniaxially pulled until fracture. Calculate the average stress in the fiber at the point of failure of the composite and hence determine the tensile strength of the composite bar. Assume the breaking strength of the fiber and matrix are 3200 MPa and 70 MPa, respectively and that the matrix shear strength is 32 MPa. The fibers...
An E-glass fiber-thermoset polyester composite tube is carefully constructed with the objective o...
An E-glass fiber-thermoset polyester composite tube is carefully constructed with the objective of achieving maximum axial tensile modulus. The glass fibers are continuous and highly aligned parallel to the tube axis. The tube contains 70% by volume glass, and has dimensions: length lm, diameter 50 mm, and wall thickness Predict the following deformations: a) The changes in length and diameter when the tube carries an axial tensile load of 10kN. The change in diameter when the tube is internally pressurized...
A composite sphere contains 20% by volume of material ? with a density of ?? =...
A composite sphere contains 20% by volume of material ? with a density of ?? = 6 ?/??3 and 80% by volume of material ? with a density of ?? = 2 ?/??3 is placed in a liquid of density ?ℓ = 2.2 ?/??3 . Determine the fraction of volume submerged in the liquid.
Q4 Acomposite consists of 65% polyester resin is reinforced by continuous and aligned glass fibers. The modulus elasticity of hardened resin is 4 0 GPa and the modulus elasticity of the ibers la...
Q4
Acomposite consists of 65% polyester resin is reinforced by continuous and aligned glass fibers. The modulus elasticity of hardened resin is 4 0 GPa and the modulus elasticity of the ibers la 52.0 GPa. Compute: a. The overall modulus elasticity of composite in the longitudinal direction parallel 04. to fiber direction b. The load carried by each matrix and iber phase, If uniaxial srss of 50 MPa is applied in longitudinal direction on the 250 mm2 cross-sectional area. c....
Composite Structures Tutorial 7 (week 8) 7.1 Find the five strength parameters of a unidirectional glass/epoxy lamina with 40% fiber volume fraction. Use the properties of glass and ep...
Composite Structures Tutorial 7 (week 8) 7.1 Find the five strength parameters of a unidirectional glass/epoxy lamina with 40% fiber volume fraction. Use the properties of glass and epoxy from Table 3.1 and Table 3.2. Assume the fibers have circular cross-section and are in a square array packing. 1-52.0-$01674870 225 47 Find 208 Mechanics of Composite Materials, Second Edi Convert PO or Excel Orl Select PDF I TABLE 3.1 Typical Properties of Fibers (SI System of Units) Units Graphite Glass...
Problem 8 10 pts) A continuous and aligned fiber-reinforced composite part has cross sectional area of 300 mm2 and consists of35 vol% glass fibers and 65 vol% of a nylon 6,6 matrix. If a longitudinal tensile load of 50kN is applied to the composite, determine (a) the longitudinal modulus of elasticity of the composite, (b) the longitudinal strain in the composite, (c) the stress in each phase (fiber and matrix), and (d) the magnitude of the load carried by each...
A composite material of graphite-filled nylon is designed with a mixture of 65% of graphite by volume. Given the densities of the consituent materials below: Material Density (8 cm) Young's modulus, E (pa) Graphite 1.75 224 Nylon 1.36 2.5 a) Calculate the density (Protal of the resultant composite material to two decimal places. Profal = 1.59 8 cm3 b) What is the weight fraction of nylon to 2 decimal places? 0.40 % c) What is the Young's modulus (E) of...
A composite of polycrystalline spinel (Young's modulus = 277 GPa) and aligned continuous Kevlar fibers is desired in order to increase the capacity of the spinel to withstand impact. Kevlar fibers have a tensile strength of 3.6 GPa and a Young's modulus of 125 GPa. For a desired composite with Young's modulus of 200 GPa, what is the fiber volume fraction? Use isostrain condition.
An injection molded rectangular bar is constituted of 20% by volume of perfectly aligned short glass fibers dispersed in Nylon 6,6. The bar is uniaxially pulled until fracture. Calculate the average stress in the fiber at the point of failure of the composite and hence determine the tensile strength of the composite bar. Assume the breaking strength of the fiber and matrix are 3200 MPa and 70 MPa, respectively and that the matrix shear strength is 32 MPa. The fibers...
An E-glass fiber-thermoset polyester composite tube is carefully constructed with the objective of achieving maximum axial tensile modulus. The glass fibers are continuous and highly aligned parallel to the tube axis. The tube contains 70% by volume glass, and has dimensions: length lm, diameter 50 mm, and wall thickness Predict the following deformations: a) The changes in length and diameter when the tube carries an axial tensile load of 10kN. The change in diameter when the tube is internally pressurized...
