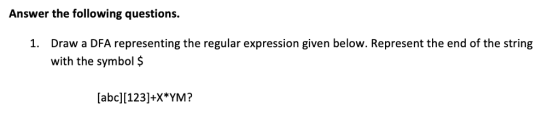

![Answer the following questions. Draw a DFA representing the regular expression given below. Represent the end of the string with the symbol $ 1. [abcl[123]+X*YM?](http://img.homeworklib.com/questions/c95faf00-1efc-11eb-8cd4-5fd17c839d49.png?x-oss-process=image/resize,w_560)
Homework Answers
Symbols used in the expression:
[] : any one character in the enclosed string
+: one or more occurences
*: zero or more occurences
?: zero or one occurrence
q0 : start state
q4, q5 : final states

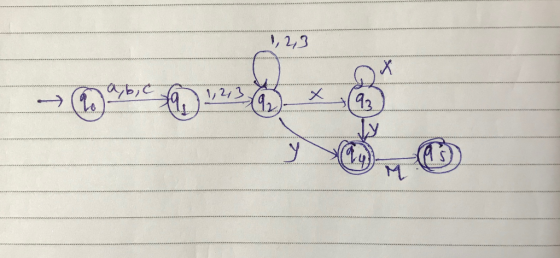

q0 -> q1 : string should
start with a/b/c
q1->q2 and q2 -> q2: there should one more more occurences of 1/2/3
q2->q3, q2->q4 & q3->q4: zero or more occurences of X, so either some X's followed by Y (q2->q3->q4) or directly 1/2/3 followed by Y (q2->q4)
q4->q5: M following Y, zero or one occurence of M, if zero occurence then q4 final state, if one M then q5 final state.
