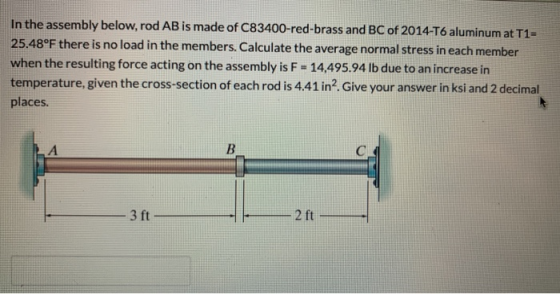

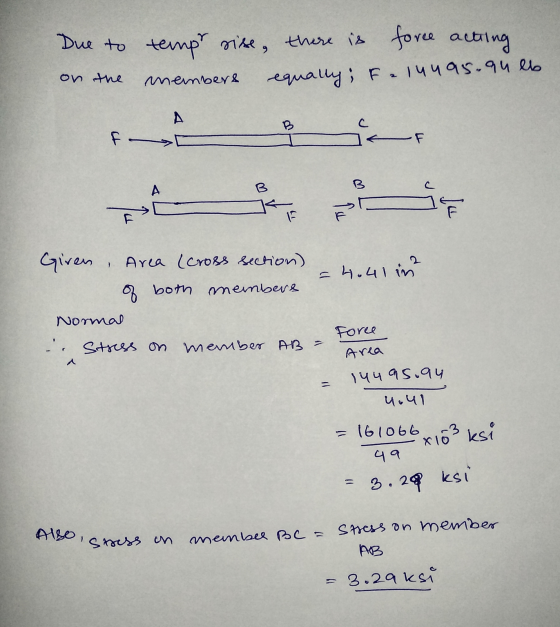

In the assembly below, rod AB is made of C83400-red-brass and BC of 2014-T6 aluminum at...
The C83400-red-brass (E=14.6*10^6) rod AB and 2014-T6-aluminum rod BC are joined at the collar B and...
The C83400-red-brass (E=14.6*10^6) rod AB and 2014-T6-aluminum rod BC are joined at the collar B and fixed connected at their ends. The cross-sectional area of each member is 1.75in2 . If there is no load in the members when T1 = 50?F, determine the average normal stress in the member BC when T2 = 150 ?F. Also, how far will the collar be displaced? The C83400-red-brass (E=14.6*10^6) rod AB and 2014-T6-aluminum rod BC are joined at the collar B and...
Sample Problem 3, The assembly consists of a 6061-T6-aluminum member and a C83400-red-brass member that rest...
Sample Problem 3, The assembly consists of a 6061-T6-aluminum member and a C83400-red-brass member that rest on the rigid plates. Determine the distance d where the vertical load P should be placed on the plates so that the plates remain horizontal when the materials deform. Each member has a width of 8 in. and they are not bonded together 30 in. Aluminum Red 6 in. 3 in.
a and b The assembly consists of two red brass C83400 copper rods AB and CD...
a and b
The assembly consists of two red brass C83400 copper rods AB and CD of diameter 30 mm a stainless 304 steel alloy rod EF of diameter 40 mm and a rigid cap G. The supports at A, C and F are rigid ▼ Part A Determine the average normal stress developed in the rod AB Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 Value Units ƠAB : --300 mm...
Review The assembly consists of two 10-mm diameter red brass C83400 copper rods AB and CD,...
Review The assembly consists of two 10-mm diameter red brass C83400 copper rods AB and CD, a 15-mm diameter 304 stainless steel rod EF, and a rig d bar G. The modulus of elasticity for red brass C83400 is 101 GPa, for 304 stainless steel 193 GPa. (Figure 1) Part A If the horizontal displacement of end F of rod EF is 0.46 mm, determine the magnitude of P. Express your answer to three significant figures and include the appropriate...
7. (18 pt) The member is composed of an aluminum shaft with a brass core. The...
7. (18 pt) The member is composed of an aluminum shaft with a brass core. The assembly is subjected to the compressive load shown, acting at the centroid of the cross-section. Calculate the average normal stress in (a) the aluminum component and (b) the brass component. Note: Ea = 10 x 10ksi; Ebr = 15 x 10ksi. P= 12000 lb 2 in. 1 in. 1.5 ft
The 5k load is supported by the assembly shown. Assume beams AB and CD are rigid...
The 5k load is supported by the assembly shown. Assume beams AB and CD are rigid members and are horizontal before the load is applied. Members BE and CF are made of 2014-T6 aluminum (E=10.6*103 ksi). Determine the vertical displacement of the load if BE has dimensions of 0.3" x 0.2” and CF has dimensions of 0.15” x 0.25”. (15 pts) 2 ft 8 ft 2 ft2 D с A E lo 1.5 ft B 6 ft 6 ft 5...
A 6.4 mm diameter cylindrical rod fabricated from a 2014-T6 aluminium alloy is subjected to reversed...
A 6.4 mm diameter cylindrical rod fabricated from a 2014-T6 aluminium alloy is subjected to reversed tension-compression load cycling along its axis of +7400 N to -2250N. Determine the fatigue life using the data shown below. 500 400 1045 steel 300 2014-T6 aluminum alloy 200 100 Red brass 10 103 104 106 105 108 10° 1010 Cycles to failure, N Stress amplitude, S (MPa)
A 6.4 mm diameter cylindrical rod fabricated from a 2014-T6 aluminium alloy is subjected to reversed...
The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC
The 2014-T6 aluminum rod AC is reinforced with the firmly bonded A992 steel tube BC. (Figure 1) When no load is applied to the assembly, the gap between end C and the rigid support is 0.5 mm. Part A Determine the support reaction at C when an axial force of P= 340 kN is applied. Part B Determine the support reaction at D when an axial force of P = 340 kN is applied.
The assembly consists of two red brass C83400 copper rods AB and CD of diameter 30 mm, a stainless 304 steel alloy rod EF of diameter 40 mm, and a rigid cap G. The supports at A, C and F are rigid.
The assembly consists of two red brass C83400 copper rods ABAB and CDCD of diameter 30 mmmm, a stainless 304 steel alloy rod EFEF of diameter 40 mmmm, and a rigid cap GG. The supports at AA, CC and FF are rigid.Modul of elasticy for the copper is EcopperEcopper = 101 GPaGPa. Modul of elasticity for the steel is EsteelEsteel = 193 GPaGPa.(a) Determine the average normal stress developed in the rod ABAB.(b) Determine the average normal stress developed in the rod CDCD.
can you please do problems 4 and 5 Problem 4 The assembly consists of two 10-mm...
can you please do problems 4 and 5
Problem 4 The assembly consists of two 10-mm diameter red brass C83400 copper rods AB and CD, a 15-mm diameter 304 stainless steel rod EF and a rigid bar G. If the horizontal displacement of end F of rod EF is 0.45 mm, determine the magnitude of P. 300 mm 450 mm IP Problem5 The rigid bar is supported by the pin-connected rod CB that has a cross-sectional area of 14 mm2...
Sample Problem 3, The assembly consists of a 6061-T6-aluminum member and a C83400-red-brass member that rest on the rigid plates. Determine the distance d where the vertical load P should be placed on the plates so that the plates remain horizontal when the materials deform. Each member has a width of 8 in. and they are not bonded together 30 in. Aluminum Red 6 in. 3 in.
a and b
The assembly consists of two red brass C83400 copper rods AB and CD of diameter 30 mm a stainless 304 steel alloy rod EF of diameter 40 mm and a rigid cap G. The supports at A, C and F are rigid ▼ Part A Determine the average normal stress developed in the rod AB Express your answer to three significant figures and include the appropriate units. Figure 1 of 1 Value Units ƠAB : --300 mm...
Review The assembly consists of two 10-mm diameter red brass C83400 copper rods AB and CD, a 15-mm diameter 304 stainless steel rod EF, and a rig d bar G. The modulus of elasticity for red brass C83400 is 101 GPa, for 304 stainless steel 193 GPa. (Figure 1) Part A If the horizontal displacement of end F of rod EF is 0.46 mm, determine the magnitude of P. Express your answer to three significant figures and include the appropriate...
7. (18 pt) The member is composed of an aluminum shaft with a brass core. The assembly is subjected to the compressive load shown, acting at the centroid of the cross-section. Calculate the average normal stress in (a) the aluminum component and (b) the brass component. Note: Ea = 10 x 10ksi; Ebr = 15 x 10ksi. P= 12000 lb 2 in. 1 in. 1.5 ft
The 5k load is supported by the assembly shown. Assume beams AB and CD are rigid members and are horizontal before the load is applied. Members BE and CF are made of 2014-T6 aluminum (E=10.6*103 ksi). Determine the vertical displacement of the load if BE has dimensions of 0.3" x 0.2” and CF has dimensions of 0.15” x 0.25”. (15 pts) 2 ft 8 ft 2 ft2 D с A E lo 1.5 ft B 6 ft 6 ft 5...
A 6.4 mm diameter cylindrical rod fabricated from a 2014-T6 aluminium alloy is subjected to reversed tension-compression load cycling along its axis of +7400 N to -2250N. Determine the fatigue life using the data shown below. 500 400 1045 steel 300 2014-T6 aluminum alloy 200 100 Red brass 10 103 104 106 105 108 10° 1010 Cycles to failure, N Stress amplitude, S (MPa)
A 6.4 mm diameter cylindrical rod fabricated from a 2014-T6 aluminium alloy is subjected to reversed...
can you please do problems 4 and 5
Problem 4 The assembly consists of two 10-mm diameter red brass C83400 copper rods AB and CD, a 15-mm diameter 304 stainless steel rod EF and a rigid bar G. If the horizontal displacement of end F of rod EF is 0.45 mm, determine the magnitude of P. 300 mm 450 mm IP Problem5 The rigid bar is supported by the pin-connected rod CB that has a cross-sectional area of 14 mm2...
