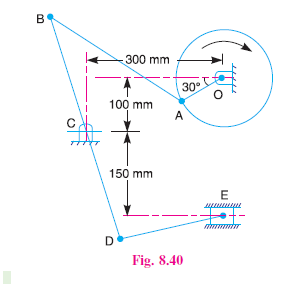

In a mechanism as shown in Fig. 8.40, the crank
OA is 100 mm long and rotates in a clockwise
direction at a speed of 100 r.p.m. The straight
rod BCD rocks on a fixed point at C. The links
BC and CD are each 200 mm long and the link
AB is 300 mm long. The slider E, which is
driven by the rod DE is 250 mm long. Find the
velocity and acceleration of E.
[ Ans. 1.26 m/s; 10.5 m/s2]

Find the velocity and acceleration of E.

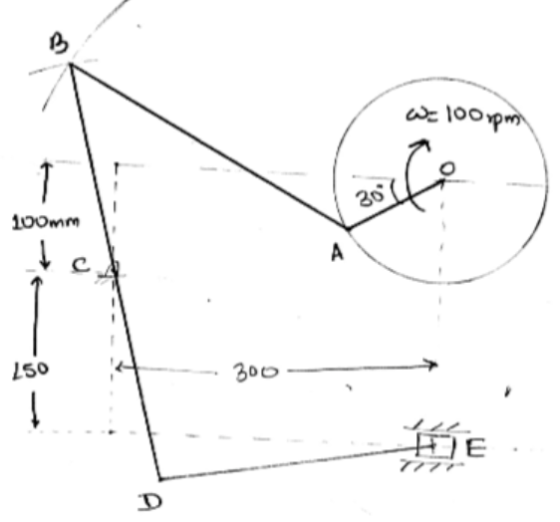

Configuration Diagram :
OA = 0.1 m
AB = 0.3 m
BC = 0.2 m
CD= 0.2 m
DE = 0.25 m

\(V_{O A}=r w=\frac{0.1 \times 2 \pi \times 100}{60}\)
\(V_{O A}=1.05 \mathrm{~m} / \mathrm{s}\)

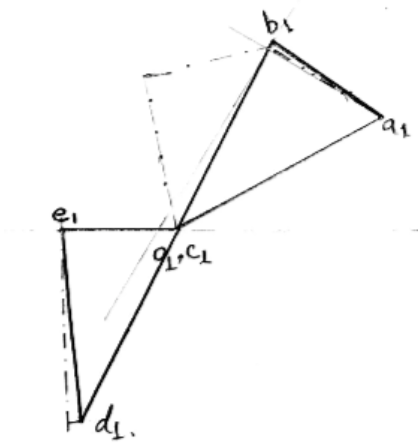

Velocity diagram :
\(V_{A}=1.05 \mathrm{~m} / \mathrm{s}\)
\(V_{B C}=1.26 \mathrm{~m} / \mathrm{s}\)
\(V_{A B}=1.41 \mathrm{~m} / \mathrm{s}\)
\(V_{C D}=1.26 \mathrm{~m} / \mathrm{s}\)
\(V_{D E}=0.34 \mathrm{~m} / \mathrm{s}\)

\(V_{D E}=1.29 \mathrm{~m} / \mathrm{s}\) Velocity of slider \(\mathrm{E}\)

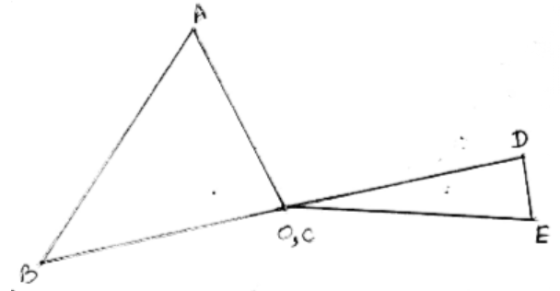

Acceleration diagram :
| Link | Length | ![]() | ![]() |
| OA | 0.1 | 11.25 | 0 |
| AB | 0.3 | 6.67 | ? |
| BC | 0.2 | 79 | ? |
| DE | 0.25 | 0.46 | ? |

\(a_{a o}=11.25 \mathrm{~m} / \mathrm{s}^{2}\)
\(a_{a b}=6.75 \mathrm{~m} / \mathrm{s}^{2}\)
\(a_{b c}=a_{c d}=10.26 \mathrm{~m} / \mathrm{s}^{2}\)
\(a_{d c}=9 \mathrm{~m} / \mathrm{s}^{2}\)
\(a_{e o}=5.63 \mathrm{~m} / \mathrm{s}^{2}\) Acceleration of slider \(\mathrm{E}\)
Figure 2 below shows a mechanism in which OA QC = 100 mm, AB OB = 300 mm and CD = 250 mm. The crank OA rotates at 150 r.p.m in the clockwise direction. 2.1 the velocity of the slider at D 2.2 the least absolute velocity of a point on link AB 2.3 the angular velocities of links AB and QB 2.4 the rubbing velocity at the pin B which is 40 mm in diameter 2.5 the force exerted by the piston if the...
Knowing that at the instant shown the angular velocity of rod DE is 2.7 rad/s clockwise, determine the velocity of collar A and the velocity of point B. 80 mm 150 mm TO 60 mm 120 mm The velocity of collar A is The velocity of point B is mm/s. mm/s À 61.8º. 30* 60 deg OA. CRANK, roq", W: +10 RAO (9) B - SLIDER SLIDES LEFT AND RIGHT AS OA ROTATES AB-LINK, 30W LONG Vo? ao? Mee ,...
The mechanism shown in the figure below has rigid links pivoted at A, B, C and D. The link BCE is a rigid plate. The dimensions of the links are BC = 110 mm BE 70 mm CE 60 mm CD 30 mm AB = 50 mm At the instant when both angles ABC and BCD are 90°, the link AB has a clockwise angular velocity of 40 rad/s. Determine the angular velocity of link BCE A Determine the angular...
In the figure, the angular velocity of crank OA is 100 rpm. Determine the linear velocity of slider D and the angular velocity of the link BD, when the crank is inclined at an angle of 710 to the vertical. The dimensions of various links are OA=21 mm AB=44 mm BC=49 mm BD=46 mm the center distance between the center of rotation and C is 61 mm. The path of travel of the slider is 11 mm below the fixed...
kinematic design of machinery
Problem #4. Considering the drag link quick-return mechanism shown below, show the linkage in its limiting positions (corresponding to extreme positions of the slider). Measure the angle through which the crank link 2 turns as the slider moves from extreme left to extreme right. Compare this with the corresponding angle as the slider moves to the left. Find the stroke of the slider (distance between limiting positions) and the time ratio of advance to return. Find...
Q-1 A mechanism, as shown in Fufire Q-1, has the dimensions:OA=a₂=200 mm ; AB=a=1500 mm ; BC=a₄=600 mm ; CD-a=500 mm : OE=1350 mm ; and BE=b₄=400 mma) Determine the number of total and obvious instant centers and locate (show on the given figure with the necessary construction lines) the instant centers I₃, and I15.b) If the crank OA=a₂ rotates uniformly at n₂=120 mm (c.w.) determine;i) The velocities of points A, B, C, and D (i.e., VA, VB, VC, and...
Question 1 75 In the mechanism of figure Q1 crank O2A rotates at 120 rev/min clockwise about O2 at a constant rotational speed. Slider B slides on sliding link AC. The dimensions of the links of the mechanism are as follows: O2A 6,0 cm, CD 10 cm, AB 2 cm, AC 8 cm, OsD- 4 cm and OrB 5cm. Angle 02 1100 and 0s- 100. and OsD rototes at toorev/min Construct a velocity diagram for this position and then find...
Please change the rotational speeds of link 02-A from
120 r/min to 75 r/min and add a rotational speed of N = 100 r/min
to link 05-D. RESPECTIVILY.
Then find the rotational speed of link 07-B. FROM THE VELOCITY
DIAGRAM.
Thank you.
In the mechanism of figure Q1 crank O-A rotates at 120 rev/min clockwise about rotational speed. Slider B slides on sliding link AC. The are as follows: O2A 6,0 cm, CD 10 cm, AB 2 cm, AC 8...
Question 1 In the mechanism of figure Q1 crank O2A rotates at 70 revim rotational speed. Slider B slides on sliding link AC. T are as follows: O2A 6,0 cm, CD 10 cm, AB 2 cm, AC 8 cm, OsD 4 cm and O Angle θ2-1100 and θ5-100. Rotation) speed for 05 D:looney/ml Construct a velocity diagram for this position and t in clockwise about O2 at a constant he dimensions of the links of the mechanism [101 hen find...
