Question

Z; = (1 + A)R. Give numerical values. 7. Repeat the calculations in Example 6.2 when the input device is a microphone with vs

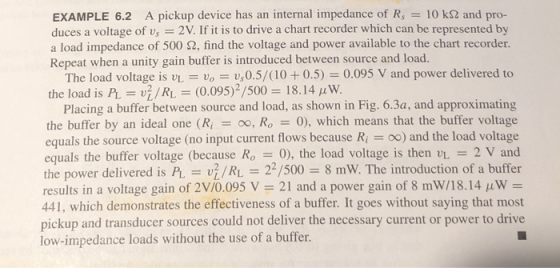

EXAMPLE 6.2 A pickup device has an internal impedance of Rs = 10 ks2 and pro- duces a voltage of vs = 2V. If it is to drive a

number 7
0 0
Add a comment Improve this question Transcribed image text
Answer #1

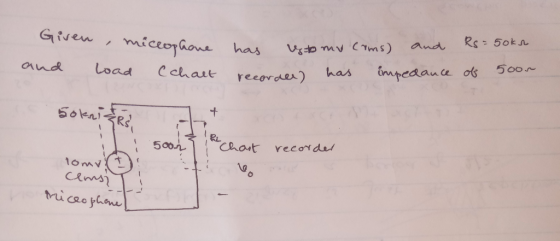

Using Voltage division rule the voltage available at the output is

V_o=\frac{500}{5k+500}10mV=\frac{5}{5.5k}V=0.91mV(rms)

and the power delivered to the load is

P_L=\frac{V_0^2(rms)}{R_L}=\frac{(0.91mV)^2}{500\Omega}=1.66nW

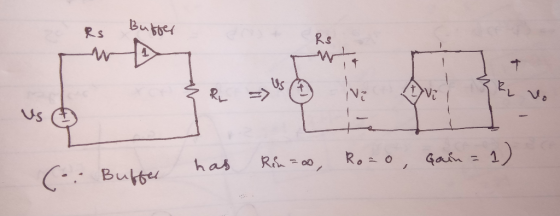

When a buffer is added, the total voltage is available at the load as it has infinite input resistance, zero output resistance and unity gain as shown below.

。。 ༥ so པ་མ ༴ སྤྱ° k vo Us ( ) ( Buffer has Reu aos, Roao Gain = 1)​​​​​From circuit, we observe that the voltage drop across Rs=0V as no current flows through it. So,

\\V_o'=V_i=V_s=10mV(rms)\\\\ P_L'=\frac{V_0^2(rms)}{R_L}=\frac{(10mV)^2}{500\Omega}=200nW

Due to the buffer there is no loss in the voltage and power delivered from source to the load. It enables the matching of input and load.

\\Voltage\ gain= \frac{V_o'}{V_o}=\frac{10mV}{0.91mV}=10.99\\\\Power \ gain= \frac{P_L'}{P_L}=\frac{200nW}{1.66nW}=120.48

Add a comment
