4) 24 cm of wire is placed in 2.0 T magnetic field. given that the wire...

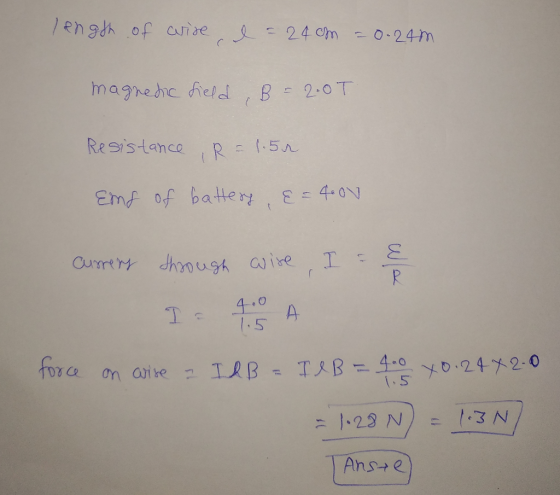

4) 24 cm of wire is placed in 2.0 T magnetic field. given that the wire has a resistance of 1.5 ohms and the wire and field are perpendicular, what will be the force on the wire when a 4.0 V battery is used to run a current through the wire?
a. 7.2 N
b. 13 N
c. 0.72 N
d. 1.9 N
e. 1.3 N
Homework Answers
