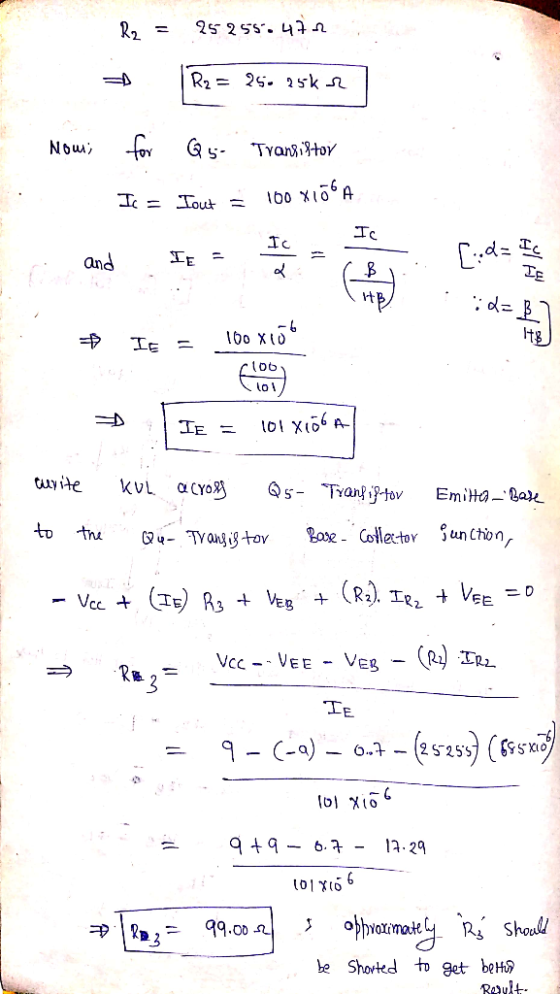

QUESTION 3 10 points Save Answer For the Widiar current mirror circuit shown below, design the...

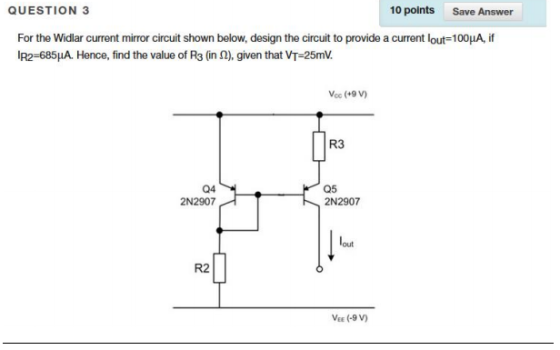

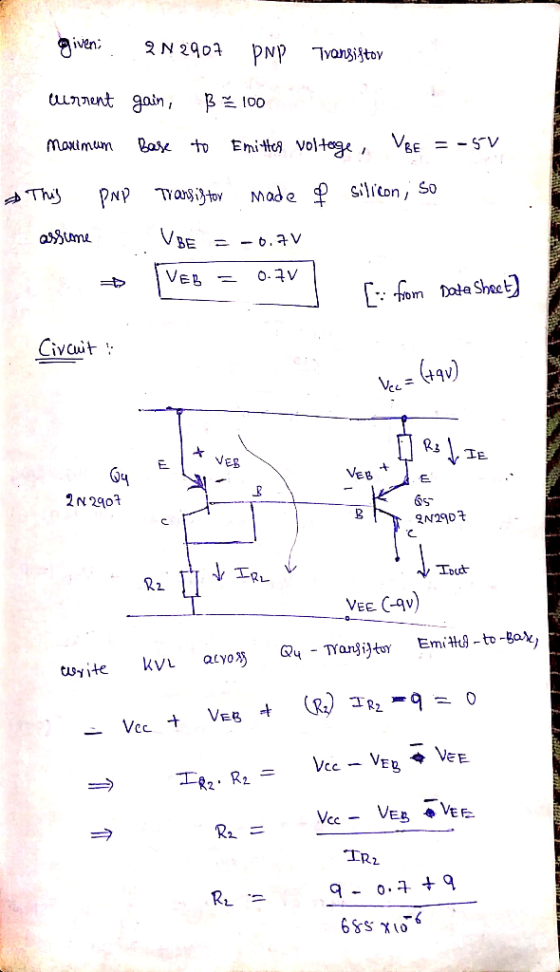

For the Widlar current mirror circuit shown below, design the
circuit to provide a current Iout=100µA, if
IR2=711µA. Hence, find the value of R3 (in
Ω), given that VT=25mV.
Vcc (+9 V) R3 20907205207 Q4 2N2907 lout R2 VEE (-9 V)
. please help me from a to
e
Recall the Offset Nulling Circuit that you used to zero out the offset of the LM741 OpAmp in L2002B, shown in Figure 1(a). An external 10 k2 potentiometer was applied across the emitter terminals of the current mirror formed by Q5 and Q6 in Figure 1(b), which can be thought of as making an adjustment to collector currents Ics and Ics such that Ics-Ics exactly A simplified version of that current mirror...
Q2. For the op-amp circuit as shown below, given that RS = 49.5 k, RL = 12 k 2, R1 = 10 kO, R2 = 9 ㏀, R3 = 7.5 ko, R4 = 5 ㏀R5 = 2.2 k2 Ry vo Ry Ri Rs (a) Determine the voltage gain G1-vo1/vs: Submit Answer Tries o/5 (b) Determine the voltage gain G2-vo/vs: Submit Answer Tries o/5 Q3. For the op-amp circuit shown below, find the value of VO, where R1 = 20 Ω,...
