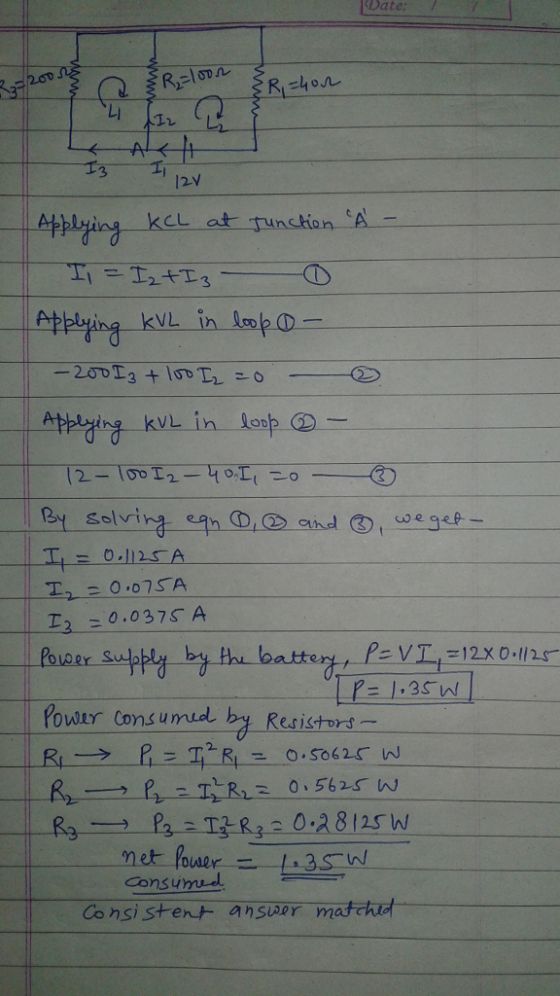

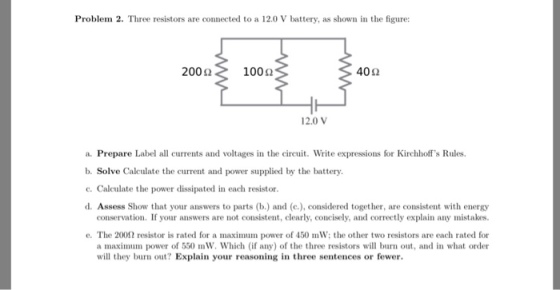

Problem 2. Three resistors are connected to a 12.0 V battery, as shown in the figure:...
Two resistors are connected in parallel across an ideal 12.0 V battery. Resistor A has a...
Two resistors are connected in parallel across an ideal 12.0 V battery. Resistor A has a value of 28 Ω and resistor B carries a current of 0.2505 A. What is the total power dissipated in the circuit?Two resistors are connected in parallel across an ideal 12.0 V battery. Resistor A has a value of 28 Ω and resistor B carries a current of 0.2505 A. What is the total power dissipated in the circuit?
- A circuit consists of a 12.0-V battery connected to three resistors (44 Ω , 16...
- A circuit consists of a 12.0-V battery connected to three resistors (44 Ω , 16 Ω and 140 Ω ) in series. - Find the current that flows through the battery in mA. - Find the potential difference across the 44 Ω resistor in V. - Find the potential difference across the 16 Ω resistor in V. - Find the potential difference across the 140 Ω resistor in V.
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
The figure below shows a circuit with a 12.0-V battery connected to four resistors. How much power is delivered to each resistor?
The figure below shows a circuit with a 12.0-V battery connected to four resistors. How much power is delivered to each resistor? (Consider the following values: R1=1.40 Ω, R2=1.90 Ω, R3=4.20 Ω, R4=4.95 Ω.)
Four resistors are connected purely in parallel to a 7 volt battery. Three of the resistors...
Four resistors are connected purely in parallel to a 7 volt
battery. Three of the resistors are 3 ohms, 7 ohms, and 12 ohms,
but the fourth is not initially known. The current out of the
battery is 9 amps. What is the power dissipated from the fourth,
unknown resistor, in Watts?
Four resistors are connected purely in parallel to a 7 volt battery. Three of the resistors are 3 ohms, 7 ohms, and 12 ohms, but the fourth is...
The figure below shows a circuit with a 12.0-V battery connected to four resistors.
The figure below shows a circuit with a 12.0-V battery connected to four resistors. How much power is delivered to each resistor? (Consider the following values: R1 = 1.25Ω, R2 = 1.85Ω, R3 = 4.20Ω, R4=5.15Ω)
a.When two resistors RA and RB are combined in series and connected to a battery it...
a.When two resistors RA and RB are combined in series and connected to a battery it is observed that the ratio of the power dissipated in RA to that dissipated in RB is equal to 10. If this arrangement is dismantled and the same two resistors connected in parallel to the same battery, what is the ratio of the power dissipated in RA to that dissipated in RB in this new circuit? b.How much energy is converted by a 12...
Problem 21.43 A circuit consists of a 12.0-V battery connected to three resistors (43? , 18?...
Problem 21.43 A circuit consists of a 12.0-V battery connected to three resistors (43? , 18? and 110? ) in series. Part A Find the current that flows through the battery. Express your answer using two significant figures. I = mA SubmitMy AnswersGive Up Part B Find the potential difference across the 43? resistor. Express your answer using two significant figures. V1 = V SubmitMy AnswersGive Up Part C Find the potential difference across the 18? resistor. Express your answer...
A circuit consists of a 12.0-VV battery connected to three resistors (44 ΩΩ , 19 ΩΩ...
A circuit consists of a 12.0-VV battery connected to three resistors (44 ΩΩ , 19 ΩΩ and 110 ΩΩ ) in series. 1. Find the current that flows through the battery. 2.Find the potential difference across the 44 Ω resistor. 3.Find the potential difference across the 19 Ω resistor. 4.Find the potential difference across the 110 Ω resistor.
2. A set of resistors are connected to a 10.0 V battery as shown in the...
2. A set of resistors are connected to a 10.0 V battery as shown in the figure below. The capacitors have values of R1 = 300 2, R2 = 150 12, R3 = 250, R4 = 100 2 and Rs = 200 22. Determine the value of the following quantities (a) when the switch is open. • the current flowing through each resistor, • the potential drop across each resistor, and • the power dissipated in each resistor. (b) when...
Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
Four resistors are connected purely in parallel to a 7 volt
battery. Three of the resistors are 3 ohms, 7 ohms, and 12 ohms,
but the fourth is not initially known. The current out of the
battery is 9 amps. What is the power dissipated from the fourth,
unknown resistor, in Watts?
Four resistors are connected purely in parallel to a 7 volt battery. Three of the resistors are 3 ohms, 7 ohms, and 12 ohms, but the fourth is...
2. A set of resistors are connected to a 10.0 V battery as shown in the figure below. The capacitors have values of R1 = 300 2, R2 = 150 12, R3 = 250, R4 = 100 2 and Rs = 200 22. Determine the value of the following quantities (a) when the switch is open. • the current flowing through each resistor, • the potential drop across each resistor, and • the power dissipated in each resistor. (b) when...
