![2.3.2は988] RA. max may cs Scanned with](http://img.homeworklib.com/questions/d9b8a960-237e-11eb-829b-b1a0e313bcc3.png?x-oss-process=image/resize,w_560)
Add Answer to:

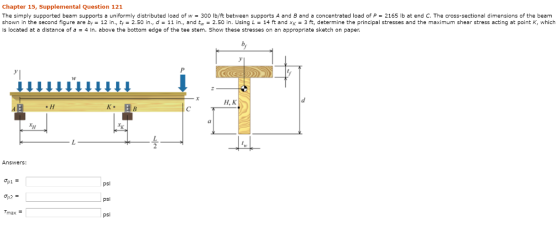

Chapter 15, Supplemental Question 121 The simply supported beam supports a uniformly distributed load of w-300...
16.6a) A simply supported beam is to span 15 ft. It will support a uniformly distributed load of ...
16.6a) A simply supported beam is to span 15 ft. It will support a uniformly distributed load of 2 kips/ft over the full span and a concentrated load of 60 kips at mid-span. What is the required plastic section modulus Zx? (Include self-weight) 16.6b) A simply supported beam is to span 15 ft. It will support a uniformly distributed load of 2 kips/ft over the full span and a concentrated load of 60 kips at mid-span. Deflection is not to...
2. A 30 ft long simply supported beam supports a uniformly distributed load of 2 kips/ft...
2. A 30 ft long simply supported beam supports a uniformly distributed load of 2 kips/ft over the entire span. The beam and cross section are shown below. Draw the shear and moment diagrams, find the neutral axis location, moment of inertia of the composite section, the maximum bending stress on the cross section. (40 points) 10" 2 k/ft 1-3" 30'-0"
please show all work A 12-Et simply supported beam is having a uniformly distributed load of...
please show all work
A 12-Et simply supported beam is having a uniformly distributed load of 3 kip/ft as shown below. The cross-section of the beam is 12-in x 18-in. The maximum shear stress developed in the beam is mnost nearly: 3 kipet 18 in 121 12 in A. 8 ksi B. 105 ksi C.125 psi D. 140 psi
1. A simply supported wood beam is subjected to a uniformlyiTTTm distributed load q. The width...
1. A simply supported wood beam is subjected to a uniformlyiTTTm distributed load q. The width of the beam is 6 in. and the height of the beam is 8 in. (a) If q 280 lb/ft, find the normal and shear stresses at C. (b) If σmar-950 psi and Tmar-200 psi, find gmax . 137.8 psi compression, tc (a) σ (b) qmax,-405.3 lblft, qmax,tー1280 lb/ft; 마nax governs; qmax-405.3 lb/ft Answers: 16.4 psi osin. 6 in.
A simply supported wood beam with a span of L = 16 ft supports a uniformly...
A simply supported wood beam with a span of L = 16 ft
supports a uniformly distributed load of w0 =
305 lb/ft. The allowable bending stress of the wood is 1.30 ksi. If
the aspect ratio of the solid rectangular wood beam is specified as
h/b = 1.75, calculate the minimum width
b that can be used for the beam.
A simply supported wood beam with a span of L = 16 ft supports a uniformly distributed load of...
Question 1 (6.7 points) AW12 x 50 steel beam is used as a simply supported beam...
Question 1 (6.7 points) AW12 x 50 steel beam is used as a simply supported beam on span of 24 feet. The beam supports a uniformly distributed load of 1000 lb/ft. Calculate the maximum bending stress. a) 9,560 psi Ob) 11,280 psi Oc) 13,460 psi d) none of the above Question 2 (6.7 points) Determine the number of 2 x 12's that need to be nailed together to build a beam that would support a uniform load of 500 lb/ft...
A simply supported beam (B-2) supports a uniformly distributed load and is braced at five-foot in...
A simply supported beam (B-2) supports a uniformly distributed
load and is braced at five-foot intervals in addition to a
composite slab that is secured to the compression flange of the
beam via shear studs. Assume that the beam is made of ASTM A992
grade with Fy = 50 ksi.
Select the lightest W shape to safely support the following
loads:
DL = 225 psf LL = 150 psf
Beams are spaced at 10' o.c.
8.25*: A simply supported beam...
A 26.0 ft. simply supported beam is subjected to factored uniformly distributed load of wa equal ...
A 26.0 ft. simply supported beam is subjected to factored uniformly distributed load of wa equal to 6.0 kips/t. Beam properties are as follows: b-14 in, d-24 in, 4,000 psi (normal-weight concrete) and fy -60,000 psi. Design shear reinforcement for the entire beam (you can use symmetry if applicable). Use two different spacings over the beam length to come up with economical design. Perform all necessary checks and calculations. Draw final design for shear ma reinforcement indicating distribution (i.e, lengths,...
A simply supported wood beam with a span of L = 17 ft supports a uniformly...
A simply supported wood beam with a span of L = 17 ft supports a uniformly distributed load of w0 = 250 lb/ft. The allowable bending stress of the wood is 1.65 ksi. If the aspect ratio of the solid rectangular wood beam is specified as h/b = 2.25, calculate the minimum width b that can be used for the beam.
A simply supported wood beam with a span of L = 12 ft supports a uniformly...
A simply supported wood beam with a span of L = 12 ft supports a uniformly distributed load of w0 = 300 lb/ft. The allowable bending stress of the wood is 1.70 ksi. If the aspect ratio of the solid rectangular wood beam is specified as h/b = 3.00, calculate the minimum width b that can be used for the beam.
2. A 30 ft long simply supported beam supports a uniformly distributed load of 2 kips/ft over the entire span. The beam and cross section are shown below. Draw the shear and moment diagrams, find the neutral axis location, moment of inertia of the composite section, the maximum bending stress on the cross section. (40 points) 10" 2 k/ft 1-3" 30'-0"
please show all work
A 12-Et simply supported beam is having a uniformly distributed load of 3 kip/ft as shown below. The cross-section of the beam is 12-in x 18-in. The maximum shear stress developed in the beam is mnost nearly: 3 kipet 18 in 121 12 in A. 8 ksi B. 105 ksi C.125 psi D. 140 psi
1. A simply supported wood beam is subjected to a uniformlyiTTTm distributed load q. The width of the beam is 6 in. and the height of the beam is 8 in. (a) If q 280 lb/ft, find the normal and shear stresses at C. (b) If σmar-950 psi and Tmar-200 psi, find gmax . 137.8 psi compression, tc (a) σ (b) qmax,-405.3 lblft, qmax,tー1280 lb/ft; 마nax governs; qmax-405.3 lb/ft Answers: 16.4 psi osin. 6 in.
A simply supported wood beam with a span of L = 16 ft
supports a uniformly distributed load of w0 =
305 lb/ft. The allowable bending stress of the wood is 1.30 ksi. If
the aspect ratio of the solid rectangular wood beam is specified as
h/b = 1.75, calculate the minimum width
b that can be used for the beam.
A simply supported wood beam with a span of L = 16 ft supports a uniformly distributed load of...
Question 1 (6.7 points) AW12 x 50 steel beam is used as a simply supported beam on span of 24 feet. The beam supports a uniformly distributed load of 1000 lb/ft. Calculate the maximum bending stress. a) 9,560 psi Ob) 11,280 psi Oc) 13,460 psi d) none of the above Question 2 (6.7 points) Determine the number of 2 x 12's that need to be nailed together to build a beam that would support a uniform load of 500 lb/ft...
A simply supported beam (B-2) supports a uniformly distributed
load and is braced at five-foot intervals in addition to a
composite slab that is secured to the compression flange of the
beam via shear studs. Assume that the beam is made of ASTM A992
grade with Fy = 50 ksi.
Select the lightest W shape to safely support the following
loads:
DL = 225 psf LL = 150 psf
Beams are spaced at 10' o.c.
8.25*: A simply supported beam...
A 26.0 ft. simply supported beam is subjected to factored uniformly distributed load of wa equal to 6.0 kips/t. Beam properties are as follows: b-14 in, d-24 in, 4,000 psi (normal-weight concrete) and fy -60,000 psi. Design shear reinforcement for the entire beam (you can use symmetry if applicable). Use two different spacings over the beam length to come up with economical design. Perform all necessary checks and calculations. Draw final design for shear ma reinforcement indicating distribution (i.e, lengths,...
