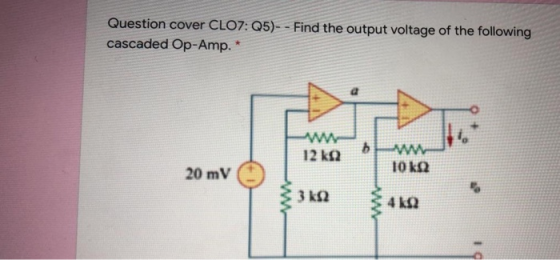

Question cover CLO7: Q5)- - Find the output voltage of the following cascaded Op-Amp. και 12...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

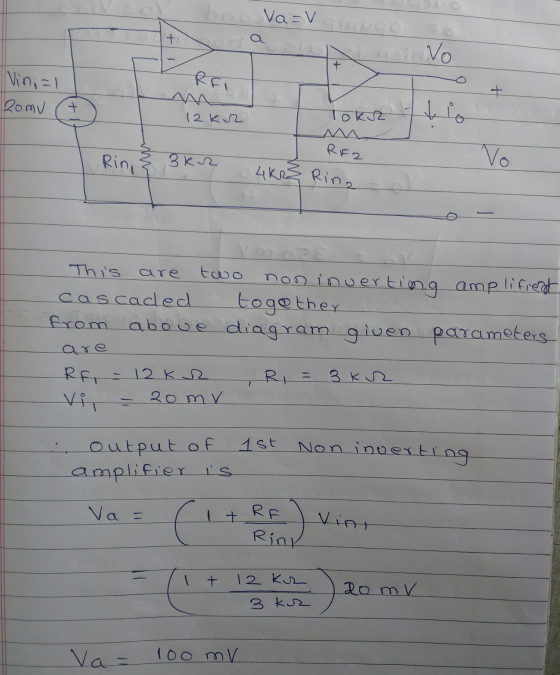

boo Va=v No RFI Vin;=1 Romu + + 12KR Toka Ring ЗКП RF2 4K23 Ring Vo This two non inverting amplifrest cascaded together from

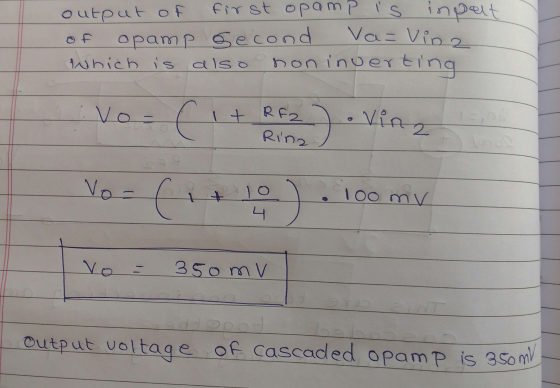

Output voltage =Vo=350mV=0.35V

If you have any doubt ask please give valuable rating thank you
