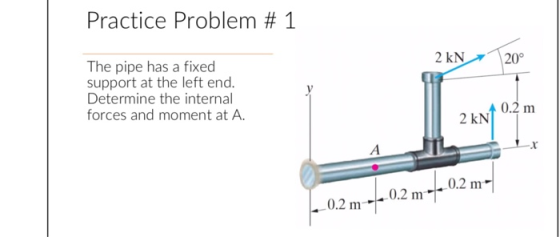

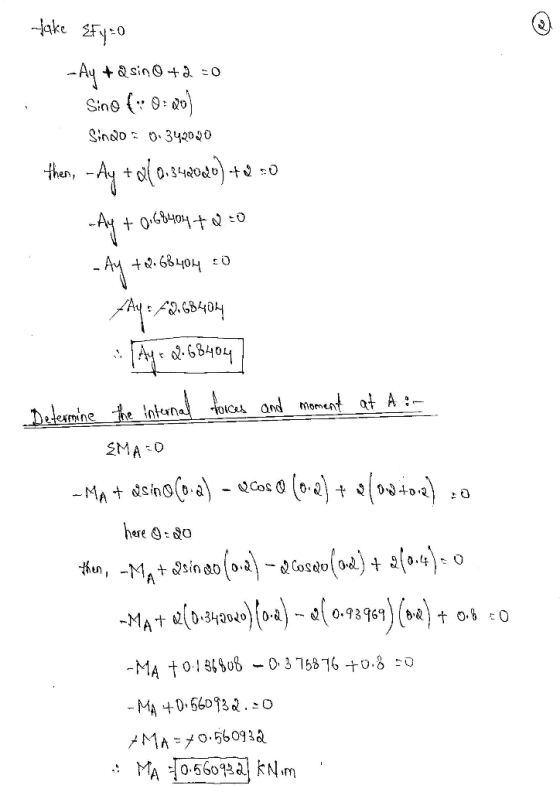

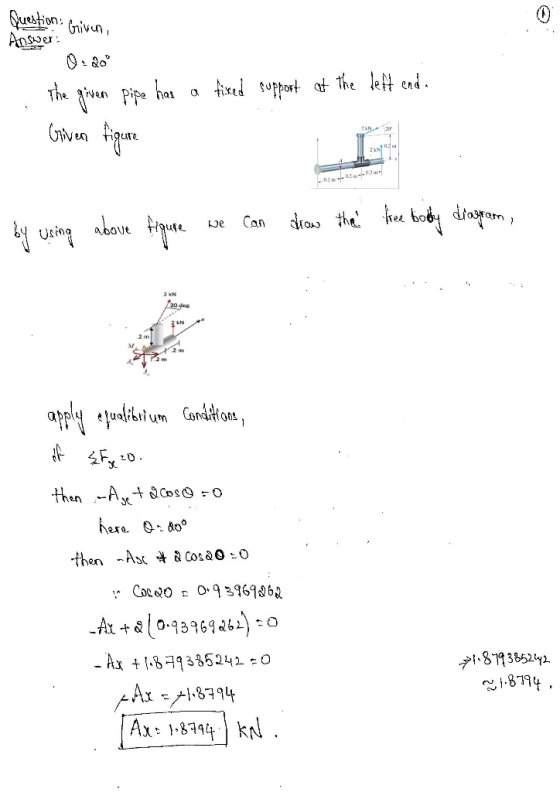

Practice Problem # 1 The pipe has a fixed support at the left end. Determine the...
Engineering Statics question? The following beam has a fixed support at A. The right end is...
Engineering Statics question?
The following beam has a fixed support at A. The right end is free. w- 9 kN/m Mc-3 kN-m TU Mc 1m VB" represents the shear force and MB the moment. The internal shear and moment at point B in the beam are most nearly: O A) VB = 18 kN, MB =-1.5 kN-m O B) VB = 27 kN, MB =-10.5 kN-m O c) Vg-4.5 kN, MB--3 kN-m
The beam has a fixed support at A and is loaded by two forces and a...
The beam has a fixed support at A and is loaded by two forces and a couple. Draw the free-body diagram of the beam and apply equilibrium to determine the reactions at A 4 kN 2 kN 6 kN-m 60° m++-1.5 m 1.5 m
Please use the method of the left and right end internal force and moment of each...
Please use the method of the left and right end internal force
and moment of each section. Thanks.
This is a similar problem of 5.44 in the book (7th edition), however, you are required to draw the shear and bending-moment diagrams based on the method of the left and right end internal force and moment of each section 4 KN PROBLEM 5.44 F D Draw the shear and bending-moment diagrams for the beam and loading shown, and determine the maximum...
Question 1 (a) Abeam has a fixed support at A and roller supports at D and E as shown in Fig. Q.la below. Internal...
Question 1 (a) Abeam has a fixed support at A and roller supports at D and E as shown in Fig. Q.la below. Internal hinges are also placed at B and C. (i) Determine all the reactions (ii) Draw the shear force diagram for the beam. (iii) Draw the bending moment diagram for the beam. (20%) (25%) (25° 60 kN/m 40 kN/m 20 kN/m 150 kN 100 kN.m Hinge Fig. Q.1a
For the cantilever beam shown, determine the reactions at the fixed end. The length of the...
For the cantilever beam shown, determine the reactions at the fixed end. The length of the beam is L 3 m. Enter forces in kilonewtons and moment in kN·m. n(x)-(3 kN/m) sin( TX A, magnitude KN direction magnitudee direction KN MA magnitude direction kN·m Select-
1. FRAME Determine the support reactions at A (fixed) and at C (rocker). (Hint: You will...
1. FRAME Determine the support reactions at A (fixed) and at C (rocker). (Hint: You will need 2 FBDs to solve this problem.) 10 KN 4 kN/m A B 2 m 2 m 2 m
1. FRAME Determine the support reactions at A (fixed) and at C (rocker). (Hint: You will...
1. FRAME Determine the support reactions at A (fixed) and at C (rocker). (Hint: You will need 2 FBDs to solve this problem.) 10 KN 4 kN/m A B 2 m 2 m 2 m
1. FRAME Determine the support reactions at A (fixed) and at C (rocker). (Hint: You will...
1. FRAME Determine the support reactions at A (fixed) and at C (rocker). (Hint: You will need 2 FBDs to solve this problem.) 10 KN 4 kN/m B 2 m 2 m 2 m
1. FRAME Determine the support reactions at A (fixed) and at Crocker). (Hint: You will need...
1. FRAME Determine the support reactions at A (fixed) and at Crocker). (Hint: You will need 2 FBDs to solve this problem.) 10 KN 4 kN/m С А B 2 m 2 m 2 m
1. FRAME Determine the support reactions at A (fixed) and at C (rocker). (Hint: You will...
1. FRAME Determine the support reactions at A (fixed) and at C (rocker). (Hint: You will need 2 FBDs to solve this problem.) 10 KN 4 kN/m А B 2 m 2 m 2 m
Engineering Statics question?
The following beam has a fixed support at A. The right end is free. w- 9 kN/m Mc-3 kN-m TU Mc 1m VB" represents the shear force and MB the moment. The internal shear and moment at point B in the beam are most nearly: O A) VB = 18 kN, MB =-1.5 kN-m O B) VB = 27 kN, MB =-10.5 kN-m O c) Vg-4.5 kN, MB--3 kN-m
The beam has a fixed support at A and is loaded by two forces and a couple. Draw the free-body diagram of the beam and apply equilibrium to determine the reactions at A 4 kN 2 kN 6 kN-m 60° m++-1.5 m 1.5 m
Please use the method of the left and right end internal force
and moment of each section. Thanks.
This is a similar problem of 5.44 in the book (7th edition), however, you are required to draw the shear and bending-moment diagrams based on the method of the left and right end internal force and moment of each section 4 KN PROBLEM 5.44 F D Draw the shear and bending-moment diagrams for the beam and loading shown, and determine the maximum...
Question 1 (a) Abeam has a fixed support at A and roller supports at D and E as shown in Fig. Q.la below. Internal hinges are also placed at B and C. (i) Determine all the reactions (ii) Draw the shear force diagram for the beam. (iii) Draw the bending moment diagram for the beam. (20%) (25%) (25° 60 kN/m 40 kN/m 20 kN/m 150 kN 100 kN.m Hinge Fig. Q.1a
For the cantilever beam shown, determine the reactions at the fixed end. The length of the beam is L 3 m. Enter forces in kilonewtons and moment in kN·m. n(x)-(3 kN/m) sin( TX A, magnitude KN direction magnitudee direction KN MA magnitude direction kN·m Select-
1. FRAME Determine the support reactions at A (fixed) and at C (rocker). (Hint: You will need 2 FBDs to solve this problem.) 10 KN 4 kN/m A B 2 m 2 m 2 m
1. FRAME Determine the support reactions at A (fixed) and at C (rocker). (Hint: You will need 2 FBDs to solve this problem.) 10 KN 4 kN/m A B 2 m 2 m 2 m
1. FRAME Determine the support reactions at A (fixed) and at C (rocker). (Hint: You will need 2 FBDs to solve this problem.) 10 KN 4 kN/m B 2 m 2 m 2 m
1. FRAME Determine the support reactions at A (fixed) and at Crocker). (Hint: You will need 2 FBDs to solve this problem.) 10 KN 4 kN/m С А B 2 m 2 m 2 m
1. FRAME Determine the support reactions at A (fixed) and at C (rocker). (Hint: You will need 2 FBDs to solve this problem.) 10 KN 4 kN/m А B 2 m 2 m 2 m
