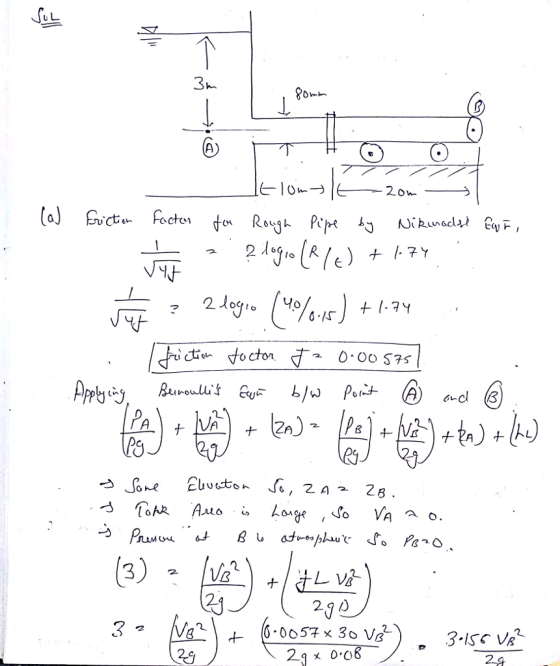

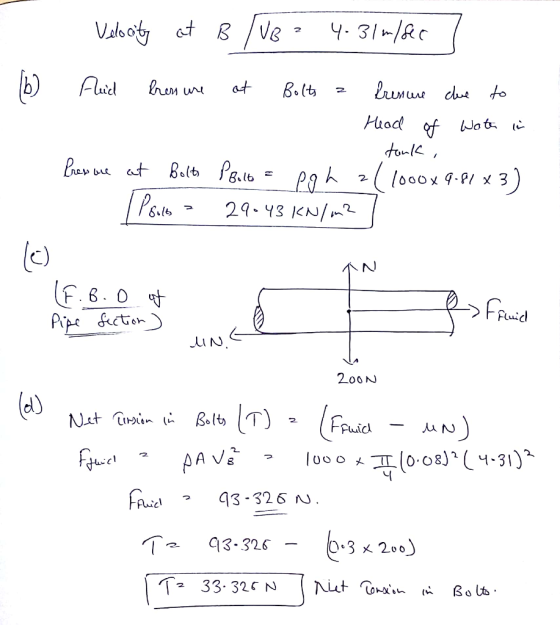

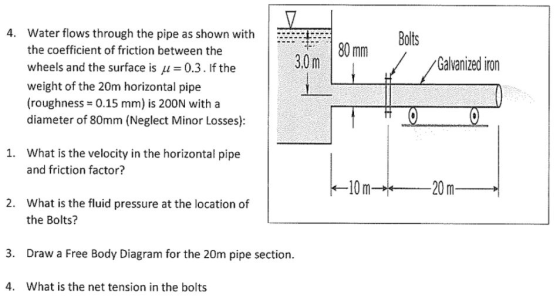

4. Water flows through the pipe as shown with Bolts 80 mm the coefficient of friction...
Water flows through the pipe as shown in the below figure. Determine the net tension in...
Water flows through the pipe as shown in the below figure. Determine the net tension in the bolts if minor losses are neglected and the wheels on which the pipe rests are frictionless. Please clearly show the steps of the trial & error method. Bolts 50 mm 10 m Cast Iron 20 m 30 m
a) Oil fows through a cast iron pipe of 250 mm diameter such that the loss...
a) Oil fows through a cast iron pipe of 250 mm diameter such that the loss of head over and the average surface roughness of iron 0.25 mm. Determine the flow rate of oil through the pipe 220 006 Smoodh pige 0.008 9 2357 2357 23579 23579 23579 toe 10 10 b) Determine the nput power to an electric motor (-90%) supplying a pump h" 90%) deiven g anks wh diference in elevati o the pipeline length is 100m long...
(b) Water flows under gravity between two reservoirs through a pipe of length 5000m. The diameter of the pipe is 0.2 m...
(b) Water flows under gravity between two reservoirs through a pipe of length 5000m. The diameter of the pipe is 0.2 m and the roughness size is 0.04 mm. The water levels in the two reservoirs are maintained with a difference of 50 m. Determine the discharge through the pipe. Neglect all minor losses. Use the attached Moody diagram for estimation of friction factor. (10 marks) (c) In (b), now include entry loss at the upper reservoir with loss coefficient...
4. An old, rough-surfaced, 2-m-diameter concrete pipe with a Manning coefficient of 0.025 carries water at...
4. An old, rough-surfaced, 2-m-diameter concrete pipe with a Manning coefficient of 0.025 carries water at a rate of 5.0 m'/s when it is half ful. This pipe is to be replaced by a new smooth pipe with a Manning coefficient of 0.012. Determine the diameter of the new pipe if it also is to flow half full with a flow rate of 5.0 m'/s Water initially flowing in the horizontal section of pipe of diameter 12.00 cm shown in...
Water at 20 C flows through the 20-mm diameter galvanized iron pipe such that it discharges...
Water at 20 C flows through the 20-mm diameter galvanized iron pipe such that it discharges at C from the fully opened gate valve B at 0.003 m/s Pe 998 3 kg/m3 and 100(10 ) m2/s Use the Part A Determine the required pressure at A Include the minor losses of the four elbows and gate valve. Express your answer to three significant figures and include the appropriate units. equation市一1.8kg(#)1.11 + 3.7 Figure 1 of 1 PA: I Value Units...
Please solve quickly and show all your work, I will upvote immediately. Thank you! Water flows...
Please solve quickly and show all your work, I will upvote
immediately. Thank you!
Water flows through the pipe as shown in the below figure. Determine the net tension in the bolts if minor losses are neglected and the wheels on which the pipe rests are frictionless. Please clearly show the steps of the trial & error method. Bolts 50 mm 10 m Cast Iron 20 m 30 m
Gasoline (SG-0.7) at 70 gallons per minute flows in 200 feet of 3 inch diameter galvanized...
Gasoline (SG-0.7) at 70 gallons per minute flows in 200 feet of 3 inch diameter galvanized iron pipe from point A to point B. The pressure at point A is 10 psig. There are no pumps nor turbines in the line. The elevation of point A is 10 it. above a datum line. The pressure at B is atmospheric. What is the elevation of point B? Neglect any minor losses. Assume a friction factor of 0.02.
Question 3 s points Save Angup Water flows from left reservoir to right reservoir in a...
Question 3 s points Save Angup Water flows from left reservoir to right reservoir in a 5 cm diameter pipe system as shown in the figure. The pipe is made out of cast iron which has a sand roughness of 0.26 mm. Discharge in the pipe system is given as 0.006 m/s. Dynamic viscosity of water is 13 x 103 kg/m.s. Density of water is 1000 kg/m2. Neglect sudden expansion/contraction. Neglect minor head losses. Determine the elevation at point 1...
1) Water is flowing through the 50-mm galvanized-iron pipe system shown in the figure. The average...
1) Water is flowing through the 50-mm galvanized-iron pipe system shown in the figure. The average velocity in the pipe is V=3.5 m/s. Assume the temperature is 20°C. a) What is friction loss between Points A and B? b) What is the pressure at Point A, if Point B is a free jet? Use the Moody Diagram to solve. 50 mm 2) For the same conditions in Problem #1, use the "Fully-Rough" equation to determine the friction factor, f. Compare...
Engineering Fluid Mechanics PO 17: Water flows through a section of a pipe of length L...
Engineering Fluid Mechanics
PO 17: Water flows through a section of a pipe of length L and diameter D as indicated in the figure. The pipe has a roughness of k, = 0.3mm. The discharge is Q = 1m/s. The kinematic viscosity of water is V = 10 m/s. (a) What is the friction factor ? (Moody diagram on next page). (b) What is the head loss over the pipe section of length L? (c) What horizontal force is required...
Water flows through the pipe as shown in the below figure. Determine the net tension in the bolts if minor losses are neglected and the wheels on which the pipe rests are frictionless. Please clearly show the steps of the trial & error method. Bolts 50 mm 10 m Cast Iron 20 m 30 m
a) Oil fows through a cast iron pipe of 250 mm diameter such that the loss of head over and the average surface roughness of iron 0.25 mm. Determine the flow rate of oil through the pipe 220 006 Smoodh pige 0.008 9 2357 2357 23579 23579 23579 toe 10 10 b) Determine the nput power to an electric motor (-90%) supplying a pump h" 90%) deiven g anks wh diference in elevati o the pipeline length is 100m long...
(b) Water flows under gravity between two reservoirs through a pipe of length 5000m. The diameter of the pipe is 0.2 m and the roughness size is 0.04 mm. The water levels in the two reservoirs are maintained with a difference of 50 m. Determine the discharge through the pipe. Neglect all minor losses. Use the attached Moody diagram for estimation of friction factor. (10 marks) (c) In (b), now include entry loss at the upper reservoir with loss coefficient...
4. An old, rough-surfaced, 2-m-diameter concrete pipe with a Manning coefficient of 0.025 carries water at a rate of 5.0 m'/s when it is half ful. This pipe is to be replaced by a new smooth pipe with a Manning coefficient of 0.012. Determine the diameter of the new pipe if it also is to flow half full with a flow rate of 5.0 m'/s Water initially flowing in the horizontal section of pipe of diameter 12.00 cm shown in...
Water at 20 C flows through the 20-mm diameter galvanized iron pipe such that it discharges at C from the fully opened gate valve B at 0.003 m/s Pe 998 3 kg/m3 and 100(10 ) m2/s Use the Part A Determine the required pressure at A Include the minor losses of the four elbows and gate valve. Express your answer to three significant figures and include the appropriate units. equation市一1.8kg(#)1.11 + 3.7 Figure 1 of 1 PA: I Value Units...
Please solve quickly and show all your work, I will upvote
immediately. Thank you!
Water flows through the pipe as shown in the below figure. Determine the net tension in the bolts if minor losses are neglected and the wheels on which the pipe rests are frictionless. Please clearly show the steps of the trial & error method. Bolts 50 mm 10 m Cast Iron 20 m 30 m
Gasoline (SG-0.7) at 70 gallons per minute flows in 200 feet of 3 inch diameter galvanized iron pipe from point A to point B. The pressure at point A is 10 psig. There are no pumps nor turbines in the line. The elevation of point A is 10 it. above a datum line. The pressure at B is atmospheric. What is the elevation of point B? Neglect any minor losses. Assume a friction factor of 0.02.
Question 3 s points Save Angup Water flows from left reservoir to right reservoir in a 5 cm diameter pipe system as shown in the figure. The pipe is made out of cast iron which has a sand roughness of 0.26 mm. Discharge in the pipe system is given as 0.006 m/s. Dynamic viscosity of water is 13 x 103 kg/m.s. Density of water is 1000 kg/m2. Neglect sudden expansion/contraction. Neglect minor head losses. Determine the elevation at point 1...
1) Water is flowing through the 50-mm galvanized-iron pipe system shown in the figure. The average velocity in the pipe is V=3.5 m/s. Assume the temperature is 20°C. a) What is friction loss between Points A and B? b) What is the pressure at Point A, if Point B is a free jet? Use the Moody Diagram to solve. 50 mm 2) For the same conditions in Problem #1, use the "Fully-Rough" equation to determine the friction factor, f. Compare...
Engineering Fluid Mechanics
PO 17: Water flows through a section of a pipe of length L and diameter D as indicated in the figure. The pipe has a roughness of k, = 0.3mm. The discharge is Q = 1m/s. The kinematic viscosity of water is V = 10 m/s. (a) What is the friction factor ? (Moody diagram on next page). (b) What is the head loss over the pipe section of length L? (c) What horizontal force is required...
