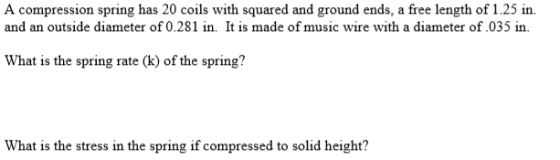

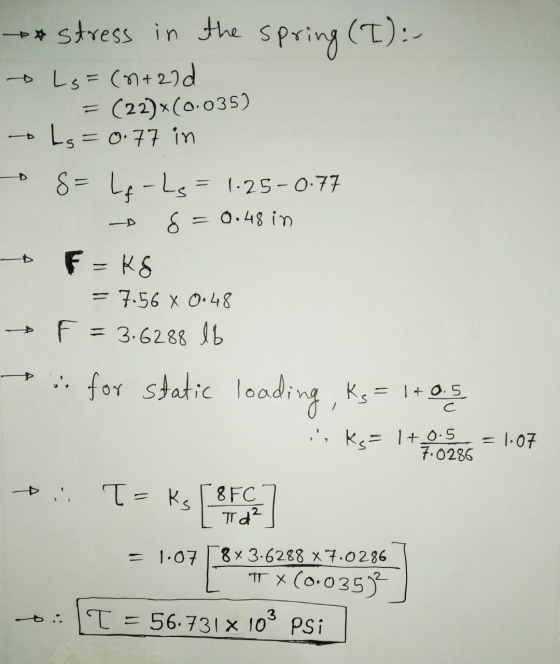

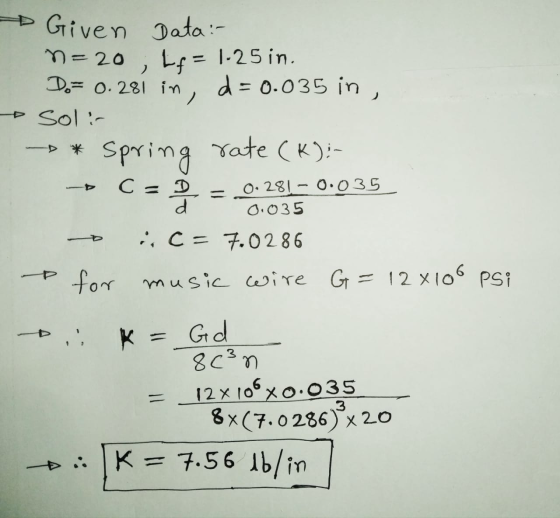

A compression spring has 20 coils with squared and ground ends, a free length of 1.25...
A stock helical-coil compression spring has a total of 14 coils, both ends squared and ground,...
A stock helical-coil compression spring has a total of 14 coils, both ends squared and ground, a free length of 1.25 in, and an outside coil diameter of 7/16 (0.438) in giving the number of active coils, Ng=12. The material is hard- drawn wire 0.042-inch in diameter and S=259,000 psi. The operating forces are Fmin=1.5 lb and Fmax=3.5 lb. F VUONI 0.438 in N=14 coils 0.042-in dia 1.25-in free length Note, choose one or more than one of the following...
1) [60 pts] Helical Compression Spring A helical compression spring is wound using music wire of...
1) [60 pts] Helical Compression Spring A helical compression spring is wound using music wire of diameter, d, 2.64 mm. The spring has an outside diameter, OD, of 33 mm with plain ground ends and 14 coils. a) Estimate the spring rate. The spring rate is N/mm. b) What is the force needed to compress this spring to closure assuming that the spring will reach its shear strength at its solid length? The force needed to compress this spring to...
Astock helical-coll compression spring has a total of 14 colls, both ends squared and ground, a...
Astock helical-coll compression spring has a total of 14 colls, both ends squared and ground, a free length of 1.25 in, and an outside coll diameter of 7/16(0438) in giving the number of active colls, N, 12. The material is hard-drawn wire 0.042-inch in diameter and S,259.000 psl. The operating forces are Fin" 1.5 lb and Fax 3.5lb. VODOM 0.438 in N 14 coils 0012 in die 125 intro length Note, choose one or more than one of the following...
Problem: A helical compression spring is made with music wire with wire diameter of 5 mm,...
Problem: A helical compression spring is made with music wire with wire diameter of 5 mm, mean coil diameter of 51 mm, a total of 12 coils, a free length of 127 mm, with squared ends. (a) Find the solid length. (b) Find the force necessary to deflect the spring to its solid length.
A compression spring is needed to fit over a 0.7-in diameter rod. To allow for some...
A compression spring is needed to fit over a 0.7-in diameter rod. To allow for some clearance, he inside diameter of the spring is to be 0.8 in. Spring index of 12. The spring is to be used in a machine by compressing it from a free length of 6 in through a stroke of 3.S in to its solid length. The spring should have squared and ground ends and to be made from music wire. Determine shear stress due...
Machine Desgin course related Machine Design related, shigley's mechanical engineering 4. A compression spring is needed...
Machine Desgin course related
Machine Design related, shigley's mechanical engineering
4. A compression spring is needed to fit over a 12mm diameter rod. To allow for some clearance, the inside diameter of the spring is to be 15mm. To ensure a reasonable coil, use a spring index of 8. The spring is to be used in a machine by compressing it from a free length of 125mm through a stroke of 75 mm to its solid length. The spring should...
solve P11 and P12 based on Part 3 Mechanical Springs A helcal compression spring is made...
solve P11 and P12 based on
Part 3 Mechanical Springs A helcal compression spring is made from music wire that is 0 041 inches in diameter and has a mean coil diameter of 0.50 inches with a free length of 2.0 inches and 10 total coils with plain ends Problem 9 What is the solid length L A) 0.32 inch 8)0.25 inch 041 inch D) 0.45 inch E) 0.53 inch Problem 10 What is the spring rate k? A) 5.50...
A compression spring is needed to fit within a 1-in diameter hole. To allow for some clearance, the outside diameter of the spring is to be no larger than 0.9 in. To ensure a reasonable coil, use a s...
A compression spring is needed to fit within a 1-in diameter hole. To allow for some clearance, the outside diameter of the spring is to be no larger than 0.9 in. To ensure a reasonable coil, use a spring index of 8. The spring is to be used in a machine by compressing it from a free length of 2 in to a solid length of 0.6667 in. The spring should have squared ends, and should be unpeened, and is...
Problem. (20 points) A helical compression spring will be used in a pressure relief valve. When...
Problem. (20 points) A helical compression spring will be used in a pressure relief valve. When the valve is closed the spring leneth is 50 mm, and the spring force is to be 7 N. The spring uses a wire diameter of d 1.5 mm and a mean spring diameter of D = 10 mm, and has a solid length ofl.- 30 mm. Use hard-drawn ASTM A227 wire, squared and ground ends, and ignore buckling since the spring is in...

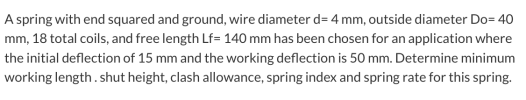

A spring with end squared and ground, wire diameter d= 4 mm, outside diameter Do= 40...
A spring with end squared and ground, wire diameter d= 4 mm, outside diameter Do= 40 mm, 18 total coils, and free length Lf= 140 mm has been chosen for an application where the initial deflection of 15 mm and the working deflection is 50 mm. Determine minimum working length. shut height, clash allowance, spring index and spring rate for this spring.
A stock helical-coil compression spring has a total of 14 coils, both ends squared and ground, a free length of 1.25 in, and an outside coil diameter of 7/16 (0.438) in giving the number of active coils, Ng=12. The material is hard- drawn wire 0.042-inch in diameter and S=259,000 psi. The operating forces are Fmin=1.5 lb and Fmax=3.5 lb. F VUONI 0.438 in N=14 coils 0.042-in dia 1.25-in free length Note, choose one or more than one of the following...
1) [60 pts] Helical Compression Spring A helical compression spring is wound using music wire of diameter, d, 2.64 mm. The spring has an outside diameter, OD, of 33 mm with plain ground ends and 14 coils. a) Estimate the spring rate. The spring rate is N/mm. b) What is the force needed to compress this spring to closure assuming that the spring will reach its shear strength at its solid length? The force needed to compress this spring to...
Astock helical-coll compression spring has a total of 14 colls, both ends squared and ground, a free length of 1.25 in, and an outside coll diameter of 7/16(0438) in giving the number of active colls, N, 12. The material is hard-drawn wire 0.042-inch in diameter and S,259.000 psl. The operating forces are Fin" 1.5 lb and Fax 3.5lb. VODOM 0.438 in N 14 coils 0012 in die 125 intro length Note, choose one or more than one of the following...
Problem: A helical compression spring is made with music wire with wire diameter of 5 mm, mean coil diameter of 51 mm, a total of 12 coils, a free length of 127 mm, with squared ends. (a) Find the solid length. (b) Find the force necessary to deflect the spring to its solid length.
A compression spring is needed to fit over a 0.7-in diameter rod. To allow for some clearance, he inside diameter of the spring is to be 0.8 in. Spring index of 12. The spring is to be used in a machine by compressing it from a free length of 6 in through a stroke of 3.S in to its solid length. The spring should have squared and ground ends and to be made from music wire. Determine shear stress due...
Machine Desgin course related
Machine Design related, shigley's mechanical engineering
4. A compression spring is needed to fit over a 12mm diameter rod. To allow for some clearance, the inside diameter of the spring is to be 15mm. To ensure a reasonable coil, use a spring index of 8. The spring is to be used in a machine by compressing it from a free length of 125mm through a stroke of 75 mm to its solid length. The spring should...
solve P11 and P12 based on
Part 3 Mechanical Springs A helcal compression spring is made from music wire that is 0 041 inches in diameter and has a mean coil diameter of 0.50 inches with a free length of 2.0 inches and 10 total coils with plain ends Problem 9 What is the solid length L A) 0.32 inch 8)0.25 inch 041 inch D) 0.45 inch E) 0.53 inch Problem 10 What is the spring rate k? A) 5.50...
A compression spring is needed to fit within a 1-in diameter hole. To allow for some clearance, the outside diameter of the spring is to be no larger than 0.9 in. To ensure a reasonable coil, use a spring index of 8. The spring is to be used in a machine by compressing it from a free length of 2 in to a solid length of 0.6667 in. The spring should have squared ends, and should be unpeened, and is...
Problem. (20 points) A helical compression spring will be used in a pressure relief valve. When the valve is closed the spring leneth is 50 mm, and the spring force is to be 7 N. The spring uses a wire diameter of d 1.5 mm and a mean spring diameter of D = 10 mm, and has a solid length ofl.- 30 mm. Use hard-drawn ASTM A227 wire, squared and ground ends, and ignore buckling since the spring is in...
A spring with end squared and ground, wire diameter d= 4 mm, outside diameter Do= 40 mm, 18 total coils, and free length Lf= 140 mm has been chosen for an application where the initial deflection of 15 mm and the working deflection is 50 mm. Determine minimum working length. shut height, clash allowance, spring index and spring rate for this spring.
