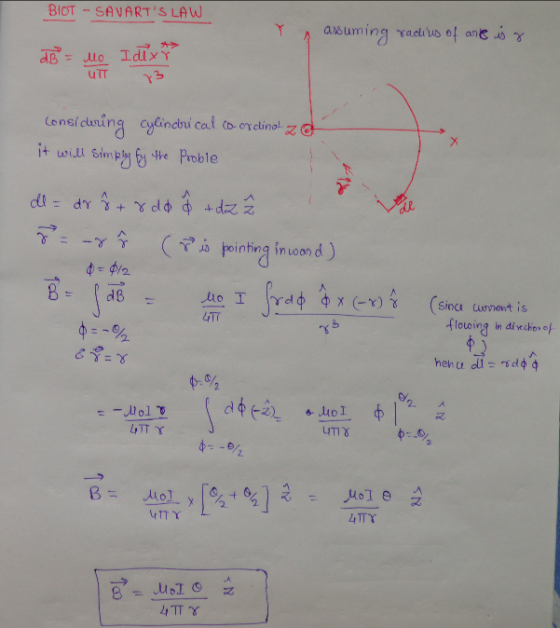

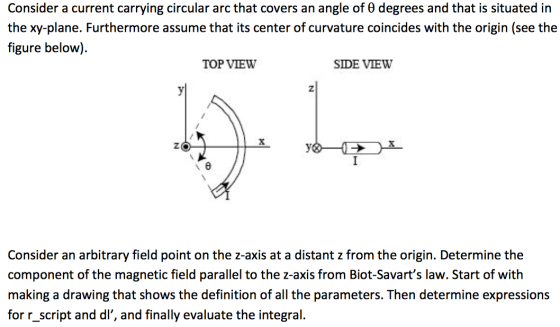

Consider a current carrying circular are that covers an angle of theta degrees and that is...
24: 15 points) consider a circular current loop of radius a in the x-y plane, which...
24: 15 points) consider a circular current loop of radius a in the x-y plane, which carries steady current l. Use Biot-Savart law to find the magnetic field strength anywhere on the z axis.
Problem 3 (16 2 3 points): Static Magnetic Field: A wire carrying current lo runs from y = to theo along the y-axis and then from the origin to x along the x-axis. Use the Biot- Savart Law to determi...
Problem 3 (16 2 3 points): Static Magnetic Field: A wire carrying current lo runs from y = to theo along the y-axis and then from the origin to x along the x-axis. Use the Biot- Savart Law to determine the magnetic flux density at the point indicated in the figure. (хо.yo)
Problem 3 (16 2 3 points): Static Magnetic Field: A wire carrying current lo runs from y = to theo along the y-axis and then from the origin...
2. Consider a circular current loop of radius R placed in the xy plane as shown in the figure. It...
The 5th page of lecture 24:
2. Consider a circular current loop of radius R placed in the xy plane as shown in the figure. It is centered at the origin and viewed down from the positive z-axis the current, lo, flows anti-clockwise. Radius = R a. In what direction does the magnetic field point at the red point in the figure, Fa? Explain clearly why this is true. current b. Since B-VxA, in which plane does Alie. Explain clearly...
please make sure to fill in the blanks (a) A conducting loop in the shape of...
please make sure to fill in the blanks
(a) A conducting loop in the shape of a square of edge length l = 0.310 m carries a current I = 10.5 A as in the figure below. Calculate the magnitude and direction of the magnetic field at the center of the square. (b) If this conductor is reshaped to form a circular loop and carries the same current, what is the value of the magnetic field at the center? Part...
3. Infinite conductor a) Consider a straight conductor (infinite length) which carries a total current I...
3. Infinite conductor a) Consider a straight conductor (infinite length) which carries a total current I in the direc- tion of the z axis. Calculate the magnetic induction Ē(7) using the Biot-Savart law. Hint The current density is given by j = 1S(x)6(y)ë^ b) Explicitly check the result from the previous task by calculating the magnetic induction B(F) using the symmetry of the problem and applying Stoke's theorem onto Maxwell's equation of magnetostatics V x B = 407 c) Now,...
a) Consider a straight conductor (infinite length) which carries a total curremt I in the direc-...
a) Consider a straight conductor (infinite length) which carries a total curremt I in the direc- tion of the z axis. Calculate the magnetic induction B(7) using the Biot-Savart law. Hint The current density is given by j = I8(x)6(y)ë^ b) Explicitly check the result from the previous task by calculating the magnetic induction B(F) using the symmetry of the problem and applying Stoke's theorem onto Maxwell's equation of magnetostatics V x B = HoJ. c) Now, consider a second...
PLEASE ANSWER THIS FAST! Example 22.6 Magnetic Field on the Axis of a Circular Current Loop...
PLEASE ANSWER THIS FAST!
Example 22.6 Magnetic Field on the Axis of a Circular Current Loop Consider a circular wire loop of radius a located in the yz plane and carrying a steady current I as in the figure below. Calculate the magnetic field at an axial point Pa distance x from the center of the loop SOLVE IT dB dB . Conceptualize The figure shows the magnetic field contribution dB at P due to a single current element at...
q4 please thanks (1) Let A - (0,0), B- (1,1) and consider the veetor field f(r,...
q4 please thanks
(1) Let A - (0,0), B- (1,1) and consider the veetor field f(r, y,z)vi+aj. Evaluate the line integral J f.dr )along the parabola y from A to B and (i)along the straight line from A to B. Is the vector field f conservative? (2) For the vector feld f # 22(r1+ gd) + (x2 + y2)k use the definition of line integral to (3) You are given that the vector field f in Q2 is conservative. Find...
Consider a cylindrical capacitor like that shown in Fig. 24.6. Let d = rb − ra...
Consider a cylindrical capacitor like that shown in Fig. 24.6. Let d = rb − ra be the spacing between the inner and outer conductors. (a) Let the radii of the two conductors be only slightly different, so that d << ra. Show that the result derived in Example 24.4 (Section 24.1) for the capacitance of a cylindrical capacitor then reduces to Eq. (24.2), the equation for the capacitance of a parallel-plate capacitor, with A being the surface area of...
24: 15 points) consider a circular current loop of radius a in the x-y plane, which carries steady current l. Use Biot-Savart law to find the magnetic field strength anywhere on the z axis.
Problem 3 (16 2 3 points): Static Magnetic Field: A wire carrying current lo runs from y = to theo along the y-axis and then from the origin to x along the x-axis. Use the Biot- Savart Law to determine the magnetic flux density at the point indicated in the figure. (хо.yo)
Problem 3 (16 2 3 points): Static Magnetic Field: A wire carrying current lo runs from y = to theo along the y-axis and then from the origin...
The 5th page of lecture 24:
2. Consider a circular current loop of radius R placed in the xy plane as shown in the figure. It is centered at the origin and viewed down from the positive z-axis the current, lo, flows anti-clockwise. Radius = R a. In what direction does the magnetic field point at the red point in the figure, Fa? Explain clearly why this is true. current b. Since B-VxA, in which plane does Alie. Explain clearly...
please make sure to fill in the blanks
(a) A conducting loop in the shape of a square of edge length l = 0.310 m carries a current I = 10.5 A as in the figure below. Calculate the magnitude and direction of the magnetic field at the center of the square. (b) If this conductor is reshaped to form a circular loop and carries the same current, what is the value of the magnetic field at the center? Part...
3. Infinite conductor a) Consider a straight conductor (infinite length) which carries a total current I in the direc- tion of the z axis. Calculate the magnetic induction Ē(7) using the Biot-Savart law. Hint The current density is given by j = 1S(x)6(y)ë^ b) Explicitly check the result from the previous task by calculating the magnetic induction B(F) using the symmetry of the problem and applying Stoke's theorem onto Maxwell's equation of magnetostatics V x B = 407 c) Now,...
a) Consider a straight conductor (infinite length) which carries a total curremt I in the direc- tion of the z axis. Calculate the magnetic induction B(7) using the Biot-Savart law. Hint The current density is given by j = I8(x)6(y)ë^ b) Explicitly check the result from the previous task by calculating the magnetic induction B(F) using the symmetry of the problem and applying Stoke's theorem onto Maxwell's equation of magnetostatics V x B = HoJ. c) Now, consider a second...
PLEASE ANSWER THIS FAST!
Example 22.6 Magnetic Field on the Axis of a Circular Current Loop Consider a circular wire loop of radius a located in the yz plane and carrying a steady current I as in the figure below. Calculate the magnetic field at an axial point Pa distance x from the center of the loop SOLVE IT dB dB . Conceptualize The figure shows the magnetic field contribution dB at P due to a single current element at...
q4 please thanks
(1) Let A - (0,0), B- (1,1) and consider the veetor field f(r, y,z)vi+aj. Evaluate the line integral J f.dr )along the parabola y from A to B and (i)along the straight line from A to B. Is the vector field f conservative? (2) For the vector feld f # 22(r1+ gd) + (x2 + y2)k use the definition of line integral to (3) You are given that the vector field f in Q2 is conservative. Find...
Consider a cylindrical capacitor like that shown in Fig. 24.6. Let d = rb − ra be the spacing between the inner and outer conductors. (a) Let the radii of the two conductors be only slightly different, so that d << ra. Show that the result derived in Example 24.4 (Section 24.1) for the capacitance of a cylindrical capacitor then reduces to Eq. (24.2), the equation for the capacitance of a parallel-plate capacitor, with A being the surface area of...
