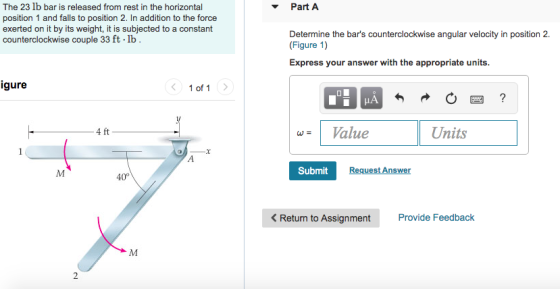

The 23 lb bar is released from rest in the horizontal position 1 and falls to...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

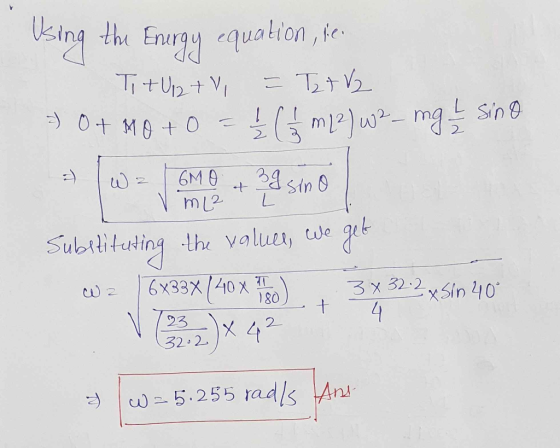

Enurgu cquation ,t Subtituting the valuer, de gu 3 x 32.2 xSin 40 80 23 2 ? !W-5.255 rad/s

Answer 2

Similar Homework Help Questions

The 20 lb bar is released from rest in the horizontal position 1 and falls to...

The 20 lb bar is released from rest in the horizontal position 1 and falls to position 2. In addition to the force exerted on it by its weight, it is subjected to a constant counterclockwise couple M=50ftib Determine the bar's counterclockwise angular velocity in position 2. Ow = 3.45 rad/s w = 4.02 rad/s w = 4.20 rad/s w = 1.32 rad/S
The 0.2-lb bar is released from rest in the position shown. Find the angular velocity of...

The 0.2-lb bar is released from rest in the position shown. Find the angular velocity of the bar when it reaches a position 30° below horizontal. The spring has a stiffness of 4.5 lb/ft and an undeformed length of 2 in. (50) -5.00 in -3.00 in Owo A B с ud
The 0.2-16 bar is released from rest in the position shown. Find the angular velocity of...

The 0.2-16 bar is released from rest in the position shown. Find the angular velocity of the bar when it reaches a position 30° below horizontal. The spring has a stiffness of 4.5 lb/ft and an undeformed length of 2 in. (50) -5.00 in -3.00 in OWARD B C

The bar, WA=100[lb] and L=3[ft], shown in figure is initially in the vertical position

The bar, WA=100[lb] and L=3[ft], shown in figure is initially in the vertical position. The bar is subjected to a couple moment of M=20 [lb-ft] and a force F=50[l b], which is always perpendicular to the end of bar. Also, the spring is attached to bar at distance L / 2 from point A, and has unstretched length of l0=1.2[ft]. The spring remains in horizontal position throughout the motion due to the roller guide at B. Determine angular velocity of...
answer fast please The reel has a weight of 156 lb and a radius of gyration...

answer fast please The reel has a weight of 156 lb and a radius of gyration about its center of gravity of kg = 1.25 ft. (Figure 1) Figure 1 of 1 1 ft 1.5 ft M = 25 lb . ft A Part A If it is subjected to a torque of M = 25 lb. ft, and starts from rest when the torque is applied, determine its angular velocity in 3 seconds. The coefficient of kinetic friction between...
M Review The reel has a weight of 168 lb and a radius of gyration about...

M Review The reel has a weight of 168 lb and a radius of gyration about its center of gravity of kc = 1.25 ft. (Figure 1) Part A If it is subjected to a torque of M = 25 lb. ft. and starts from rest when the torque is applied, determine its angular velocity in 3 seconds. The coefficient of kinetic friction between the reel and the horizontal plane is = 0.15 Express your answer to three significant figures...

The 15-kg slender bar OA is released from rest in the vertical position and compresses the...

The 15-kg slender bar OA is released from rest in the vertical position and compresses thespring of stiffness k = 20 kN/m as the horizontal position is passed. Determine the propersetting of the spring, by specifying the distance h, that will result in the bar having an angularvelocity ω = 4 rad/s as it crosses the horizontal position. What is the effect of x on thedynamics of the problem?
At a given instant the roller A on the bar has the velocity v = 3...

At a given instant the roller A on the bar has the velocity v = 3 m/s and acceleration a = 6.5 m/s2 Determine the acceleration of the roller B at this instant. Determine the bar's angular acceleration at this instant measured counterclockwise. and Acceleration = 6.5 mis - Part A At a given instant the roller 4 on the bar has the velocity n = 3 m (Figure 1) Determine the velocity of the roler at this Inalart. Express...
The slender uniform bar with a weight of 9 lb can rotate in a vertical plane...

The slender uniform bar with a weight of 9 lb can rotate in a vertical plane with respect to a bolt B. A spring of constant k = 40 lb / ft and an undeformed length of 5 in is connected to the bar as shown . If the bar is released from rest in the position shown, determine after rotating 90 °: A) The initial energy of the spring: B) Final spring energy: C) The velocity of the G...

Problem 15.83 Part A The 12-lb collar B is at rest, and when it is in...

Problem 15.83 Part A The 12-lb collar B is at rest, and when it is in the position shown the spring is unstretched. Another 1-1b collar A strikes it so that B slides 4 ft on the smooth rod before momentarily stopping. The coefficient of restitution between A and B is e = 0.4. (Figure 1) Determine the velocity of A just after impact measured to the left. Express your answer to three significant figures and include the appropriate units....
