The 0.2-lb bar is released from rest in the position shown. Find the angular velocity of...
The 0.2-16 bar is released from rest in the position shown. Find the angular velocity of...

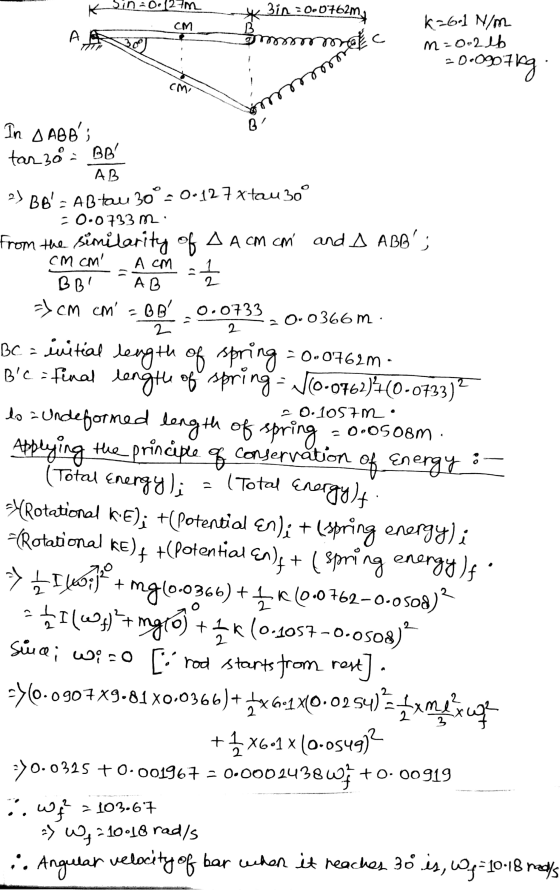

The 0.2-16 bar is released from rest in the position shown. Find the angular velocity of the bar when it reaches a position 30° below horizontal. The spring has a stiffness of 4.5 lb/ft and an undeformed length of 2 in. (50) -5.00 in -3.00 in OWARD B C
The 23 lb bar is released from rest in the horizontal position 1 and falls to...
The 23 lb bar is released from rest in the horizontal position 1 and falls to position 2. In addition to the force exerted on it by its weight, it is subjected to a constant counterclockwise couple 33 ft lb Part A Determine the bar's counterclockwise angular velocity in position 2. (Figure 1) Express your answer with the appropriate units. igure 1 of 1 Value Units 4 ft Submit Request Answer 40° < Return to Assignment m Provide Feedback
The slender uniform bar with a weight of 9 lb can rotate in a vertical plane...
The slender uniform bar with a weight of 9 lb can rotate in a
vertical plane with respect to a bolt B. A spring of constant k =
40 lb / ft and an undeformed length of 5 in is connected to the bar
as shown . If the bar is released from rest in the position shown,
determine after rotating 90 °:
A) The initial energy of the spring:
B) Final spring energy:
C) The velocity of the G...
The 15-kg slender bar OA is released from rest in the vertical position and compresses the...
The 15-kg slender bar OA is released from rest in the vertical position and compresses thespring of stiffness k = 20 kN/m as the horizontal position is passed. Determine the propersetting of the spring, by specifying the distance h, that will result in the bar having an angularvelocity ω = 4 rad/s as it crosses the horizontal position. What is the effect of x on thedynamics of the problem?
The bar, WA=100[lb] and L=3[ft], shown in figure is initially in the vertical position
The bar, WA=100[lb] and L=3[ft], shown in figure is initially in the vertical position. The bar is subjected to a couple moment of M=20 [lb-ft] and a force F=50[l b], which is always perpendicular to the end of bar. Also, the spring is attached to bar at distance L / 2 from point A, and has unstretched length of l0=1.2[ft]. The spring remains in horizontal position throughout the motion due to the roller guide at B. Determine angular velocity of...
The 20 lb bar is released from rest in the horizontal position 1 and falls to...
The 20 lb bar is released from rest in the horizontal position 1 and falls to position 2. In addition to the force exerted on it by its weight, it is subjected to a constant counterclockwise couple M=50ftib Determine the bar's counterclockwise angular velocity in position 2. Ow = 3.45 rad/s w = 4.02 rad/s w = 4.20 rad/s w = 1.32 rad/S
A slender 9 lb rod can rotate in a vertical plane about a pivot at B. A spring of constant k-30 lb/ft and of unstretched length 6 in. is attached to the rod as shown. The rod is released from rest in...
A slender 9 lb rod can rotate in a vertical plane about a pivot at B. A spring of constant k-30 lb/ft and of unstretched length 6 in. is attached to the rod as shown. The rod is released from rest in the position shown. 1) Determine its angular velocity after the rod has rotated through 45.(1 point) 2) Determine the reaction force at pivot point B after the rod rotated through 45. (1 point) 24 in 5 in. 4...
The 6.0-lb bar is pinned at its center O and connected to a torsional spring. The...
The 6.0-lb bar is pinned at its center O and connected to a
torsional spring. The spring has a stiffness k = 5.6 lb?ft/rad , so
that the torque developed is M=(5.6?)lb?ft, where ? is in
radians.
If the bar is released from rest when it is vertical at
?=90?, determine its angular velocity at the instant
?=45?.
4) The homogeneous bar AB weighs 96.6-lb and has an angular velocity of 2rad/s clockwise in...
4) The homogeneous bar AB weighs 96.6-lb and has an angular velocity of 2rad/s clockwise in the position shown. As the bar rotates, it strikes the spring, which is initially uncompressed, and is brought to rest in the vertical position. Find: a) the spring modulus, b) components of the pin reactions at A on AB at the instant the velocity becomes zero. 6 QT 6
2. The weight of the disk is 30 lb and its radius of gyration equals 0.6...
2. The weight of the disk is 30 lb and its radius of gyration equals 0.6 ft. The spring has a stiffness of 2 lb/ft and an unstretched length of 1 ft. Find the velocity of the center G at the instant G moves 3 ft to the left. Assume that the disk is released from rest in the position shown and rolls without slipping. k=2 lb/ft
The 0.2-16 bar is released from rest in the position shown. Find the angular velocity of the bar when it reaches a position 30° below horizontal. The spring has a stiffness of 4.5 lb/ft and an undeformed length of 2 in. (50) -5.00 in -3.00 in OWARD B C
The 23 lb bar is released from rest in the horizontal position 1 and falls to position 2. In addition to the force exerted on it by its weight, it is subjected to a constant counterclockwise couple 33 ft lb Part A Determine the bar's counterclockwise angular velocity in position 2. (Figure 1) Express your answer with the appropriate units. igure 1 of 1 Value Units 4 ft Submit Request Answer 40° < Return to Assignment m Provide Feedback
The slender uniform bar with a weight of 9 lb can rotate in a
vertical plane with respect to a bolt B. A spring of constant k =
40 lb / ft and an undeformed length of 5 in is connected to the bar
as shown . If the bar is released from rest in the position shown,
determine after rotating 90 °:
A) The initial energy of the spring:
B) Final spring energy:
C) The velocity of the G...
The bar, WA=100[lb] and L=3[ft], shown in figure is initially in the vertical position. The bar is subjected to a couple moment of M=20 [lb-ft] and a force F=50[l b], which is always perpendicular to the end of bar. Also, the spring is attached to bar at distance L / 2 from point A, and has unstretched length of l0=1.2[ft]. The spring remains in horizontal position throughout the motion due to the roller guide at B. Determine angular velocity of...
The 20 lb bar is released from rest in the horizontal position 1 and falls to position 2. In addition to the force exerted on it by its weight, it is subjected to a constant counterclockwise couple M=50ftib Determine the bar's counterclockwise angular velocity in position 2. Ow = 3.45 rad/s w = 4.02 rad/s w = 4.20 rad/s w = 1.32 rad/S
A slender 9 lb rod can rotate in a vertical plane about a pivot at B. A spring of constant k-30 lb/ft and of unstretched length 6 in. is attached to the rod as shown. The rod is released from rest in the position shown. 1) Determine its angular velocity after the rod has rotated through 45.(1 point) 2) Determine the reaction force at pivot point B after the rod rotated through 45. (1 point) 24 in 5 in. 4...
The 6.0-lb bar is pinned at its center O and connected to a
torsional spring. The spring has a stiffness k = 5.6 lb?ft/rad , so
that the torque developed is M=(5.6?)lb?ft, where ? is in
radians.
If the bar is released from rest when it is vertical at
?=90?, determine its angular velocity at the instant
?=45?.
4) The homogeneous bar AB weighs 96.6-lb and has an angular velocity of 2rad/s clockwise in the position shown. As the bar rotates, it strikes the spring, which is initially uncompressed, and is brought to rest in the vertical position. Find: a) the spring modulus, b) components of the pin reactions at A on AB at the instant the velocity becomes zero. 6 QT 6
2. The weight of the disk is 30 lb and its radius of gyration equals 0.6 ft. The spring has a stiffness of 2 lb/ft and an unstretched length of 1 ft. Find the velocity of the center G at the instant G moves 3 ft to the left. Assume that the disk is released from rest in the position shown and rolls without slipping. k=2 lb/ft
