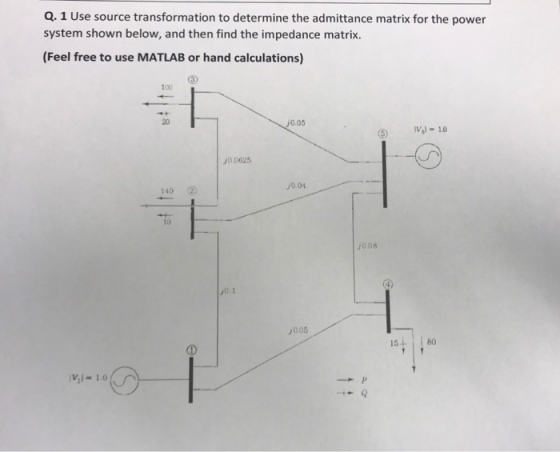

Q. 1 Use source transformation to determine the admittance matrix for the power system shown below,...
c. Node Admittance matrix and its use in different calculations of power transmission system. Display the...
c. Node Admittance matrix and its use in different calculations of power transmission system. Display the contents of the matrix for a network of four nodes with lead reactances Z12 = j0.5, Z13 = j0.2, Z23 = j0.4, and Z24 = j0.3.
Consider the 4-bus power system shown in Fig. 1. The system parameters are given below: 50 MVA, 2...
Please show all the clearly step
Y11 ist j30 and Y44 isnt -j12.85
Consider the 4-bus power system shown in Fig. 1. The system parameters are given below: 50 MVA, 20 kV, X-2090 40 MVA, 20 kV, X-20%, X, = 5% 50 MVA, 20 kV Δ /110 kV Ý, X= 1090 50 MVA, 20 kV MI 10 kV Ý, X= 10% Xi-24.2 Ω Generator G: Motor M: Transformer T1 : Transformer T2 : Transmission line: 3 4 T2 nu)M Fig....
6. Referring to circuit below, use source transformation to determine the current and power absorbed by the 7-2 resi...
6. Referring to circuit below, use source transformation to determine the current and power absorbed by the 7-2 resistor. 7Q 6 Q ww ww. 5 A 6Q 4Q 12 V ww ww
6. Referring to circuit below, use source transformation to determine the current and power absorbed by the 7-2 resistor. 7Q 6 Q ww ww. 5 A 6Q 4Q 12 V ww ww
A power system network is shown in Figure 1
A power system network is shown in Figure 1. All impedances, except the loads at buses 3 and 4, are expressed in per unit on 100 MVA, 154 kV bases. The loads at buses 3 and 4 are expressed in MW and MVAr. a) Assuming a voltage magnitude of 1.0 per unit at buses 3 and 4, convert the loads to per unit impedances b) Convert network impedances to admittances and obtain the bus admittance matrix
Please answer question B Expert Q&A The design of any power transmission system is very sensitive to the magnitude...
Please answer question B
Expert Q&A The design of any power transmission system is very sensitive to the magnitude of the current in the lines as determined by the applied loads. Increased current result in increased power losses in the transmission lines due to the resistance of the lines. Every effort must therefore be made to keep current levels at a minimum. The process of introducing reactive elements to bring the power factor closer to unity is called power factor...
Question 1: For the plane (2D) truss shown below, evaluate the transformation matrix [T] and the stiffness matrix in the local axis system [KL] of all elements. Use these matrices to evaluate the ele...
Question 1: For the plane (2D) truss shown below, evaluate the transformation matrix [T] and the stiffness matrix in the local axis system [KL] of all elements. Use these matrices to evaluate the element stiffness matrix in global axis system [KG] of the members and assembled them to generate the overall stiffness matrix [K of the truss. Modify the stiffness matrix [K] in order to incorporate boundary conditions following the elimination technique of rows and columns. Take E 200 GPa...
100 Consider the following LTI system, 5, and wo = 2000π rad/sec. where, Q a) Use MATLAB to deter...
please complete this project.
100 Consider the following LTI system, 5, and wo = 2000π rad/sec. where, Q a) Use MATLAB to determine magnitude response and phase response of the filter b) What type of filter is it? c) What will be the output of this filter if input x,(t)-5Cos(100t). Show all calculations step by step as shown in Lecture-20 d) Verify your answer of part (e) by using Simulink model. Attach the snapshot of Simulink model and output e)...
Q2) For the three bus power system shown below, use the NR power flow to determine the only first...
USING NEWTON RAPHSON
Q2) For the three bus power system shown below, use the NR power flow to determine the only first iteration voltage magnitude and angle at bus 2 and bus 3. Assume that SB 100 MVA Bus 1 Bus 2 s3.85 1.90 22.36 2.0331.62 [1.89 31.62 1.89 40 W258.13 1.10 5.7/20s Gen 58.131-1.1035.772.03 31.62 1.89 35.772.03 67.231.17 250 MVr Bus Slack Bus V10510 pu Bus 3 Gen V3-1.04 pu p- 200 Mw 2 1 211 11 + i...
2. A single-line diagram of the power system considered is shown in Figure P2a, where negative-...
2. A single-line diagram of the power system considered is shown in Figure P2a, where negative- and zero-sequence reactances are also given. The neutrals of the generator and A-Y transformers are solidly grounded. The motor neutral is grounded through a reactance Xn = 0.05 per unit on the motor base. The per-unit zero-, positive and negative-sequence networks on a 100-MVA is shown in Figure P26, 13.8-kV base in the zone of the generator. a. Reduce the sequence networks to their...
The six-bus system shown in Figure 1 will be simulated using MATLAB. Transmission line data and b...
The six-bus system shown in Figure 1 will be simulated using MATLAB. Transmission line data and bus data are given in Tables 1 and 2 respectively. The transmission line data are calculated on 100 MVA base and 230 (line-to-line) kV base for generator. Tasks: 1. Determine the network admittance matrix Y 2. Find the load flow solution using Gauss-Seidel/Newton Raphson method until first iteration by manual calculation. Use Maltab software to solve power flow problem using Gauss-Seidel method. Find the...
Please show all the clearly step
Y11 ist j30 and Y44 isnt -j12.85
Consider the 4-bus power system shown in Fig. 1. The system parameters are given below: 50 MVA, 20 kV, X-2090 40 MVA, 20 kV, X-20%, X, = 5% 50 MVA, 20 kV Δ /110 kV Ý, X= 1090 50 MVA, 20 kV MI 10 kV Ý, X= 10% Xi-24.2 Ω Generator G: Motor M: Transformer T1 : Transformer T2 : Transmission line: 3 4 T2 nu)M Fig....
6. Referring to circuit below, use source transformation to determine the current and power absorbed by the 7-2 resistor. 7Q 6 Q ww ww. 5 A 6Q 4Q 12 V ww ww
6. Referring to circuit below, use source transformation to determine the current and power absorbed by the 7-2 resistor. 7Q 6 Q ww ww. 5 A 6Q 4Q 12 V ww ww
Please answer question B
Expert Q&A The design of any power transmission system is very sensitive to the magnitude of the current in the lines as determined by the applied loads. Increased current result in increased power losses in the transmission lines due to the resistance of the lines. Every effort must therefore be made to keep current levels at a minimum. The process of introducing reactive elements to bring the power factor closer to unity is called power factor...
Question 1: For the plane (2D) truss shown below, evaluate the transformation matrix [T] and the stiffness matrix in the local axis system [KL] of all elements. Use these matrices to evaluate the element stiffness matrix in global axis system [KG] of the members and assembled them to generate the overall stiffness matrix [K of the truss. Modify the stiffness matrix [K] in order to incorporate boundary conditions following the elimination technique of rows and columns. Take E 200 GPa...
please complete this project.
100 Consider the following LTI system, 5, and wo = 2000π rad/sec. where, Q a) Use MATLAB to determine magnitude response and phase response of the filter b) What type of filter is it? c) What will be the output of this filter if input x,(t)-5Cos(100t). Show all calculations step by step as shown in Lecture-20 d) Verify your answer of part (e) by using Simulink model. Attach the snapshot of Simulink model and output e)...
USING NEWTON RAPHSON
Q2) For the three bus power system shown below, use the NR power flow to determine the only first iteration voltage magnitude and angle at bus 2 and bus 3. Assume that SB 100 MVA Bus 1 Bus 2 s3.85 1.90 22.36 2.0331.62 [1.89 31.62 1.89 40 W258.13 1.10 5.7/20s Gen 58.131-1.1035.772.03 31.62 1.89 35.772.03 67.231.17 250 MVr Bus Slack Bus V10510 pu Bus 3 Gen V3-1.04 pu p- 200 Mw 2 1 211 11 + i...
2. A single-line diagram of the power system considered is shown in Figure P2a, where negative- and zero-sequence reactances are also given. The neutrals of the generator and A-Y transformers are solidly grounded. The motor neutral is grounded through a reactance Xn = 0.05 per unit on the motor base. The per-unit zero-, positive and negative-sequence networks on a 100-MVA is shown in Figure P26, 13.8-kV base in the zone of the generator. a. Reduce the sequence networks to their...
The six-bus system shown in Figure 1 will be simulated using MATLAB. Transmission line data and bus data are given in Tables 1 and 2 respectively. The transmission line data are calculated on 100 MVA base and 230 (line-to-line) kV base for generator. Tasks: 1. Determine the network admittance matrix Y 2. Find the load flow solution using Gauss-Seidel/Newton Raphson method until first iteration by manual calculation. Use Maltab software to solve power flow problem using Gauss-Seidel method. Find the...
