Question

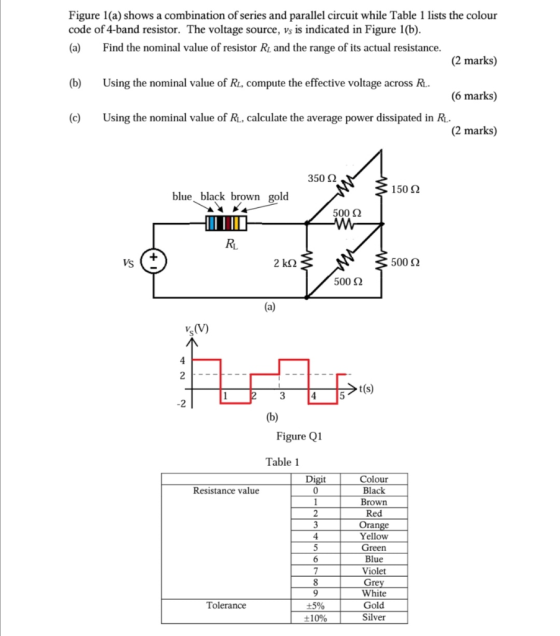

Figure 1(a) shows a combination of series and parallel circuit while Table 1 lists the colour code of 4-band resistor. The vo

0 0
Add a comment Improve this question Transcribed image text
Answer #1

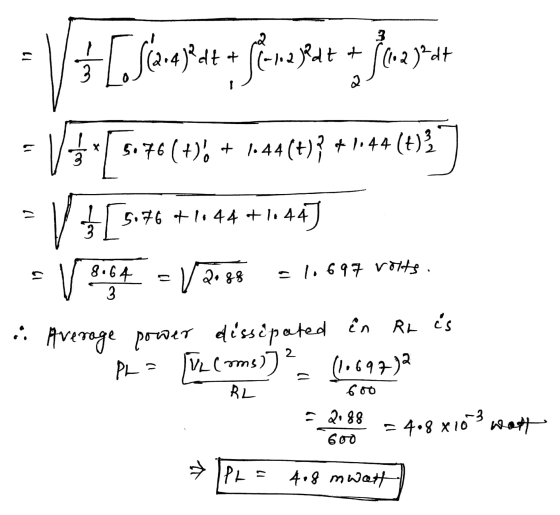

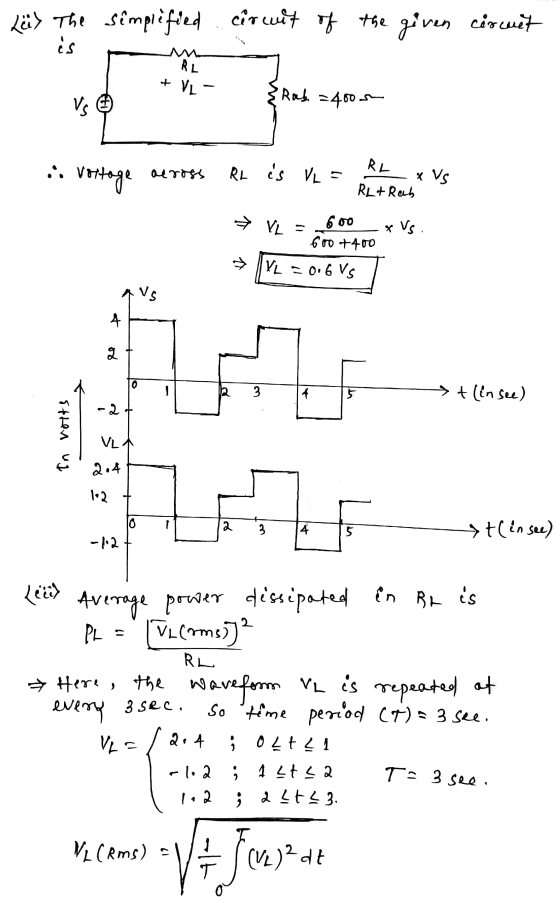

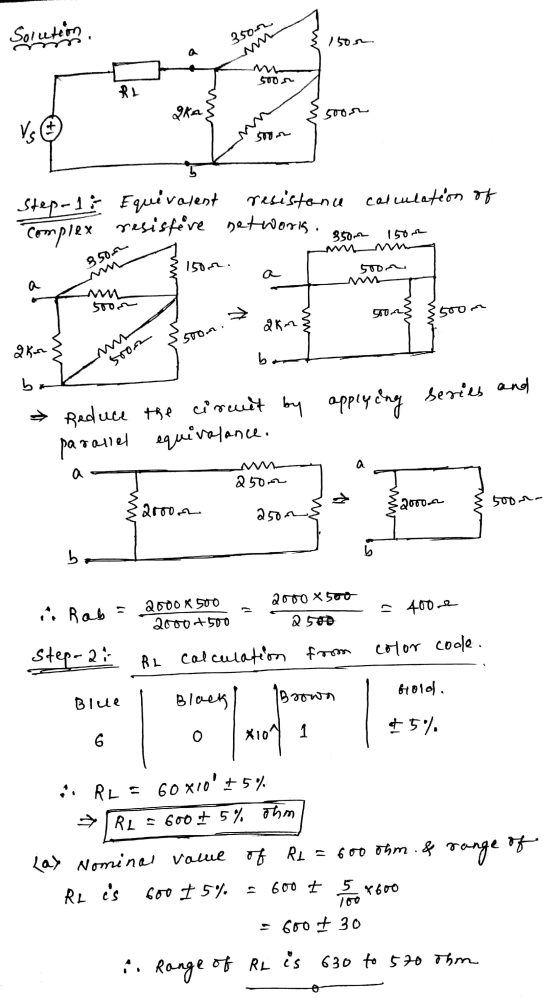

Solution 35062 150. M 500s RL gka ب00 Vs 577 5 Step-11 Equivalent resistanu calculation of Complex resistive betworis. 350 1Lüx The simplified cirwit of the given circuit os RL + VL Rad = 400m Vs :: Vottage RL aeross RL is VLE x VS RL+Rab y Vs → VL11 V*[iboruto fenose poveru 3 = \ /5.76(+) + 1.44 (t)} + 1.44 (t)} 1 [15:57 }[5.76 +1.44 +1.44 v 8064 - V 2088 oli 697 vots.

(a) Nominal value of RL=600 ohm and range of RL is 570-630 ohm

(b) Voltage across resistor RL is VL=0.6Vs

(c) Resistor is a voltage stiff load so average power dissipated across resistor is Vrms^2 /R or (Irms^2) *RSo average power dissipated in resistor RL is PL=VLrms^2 /RL =4.8 mWatt

Add a comment
