Homework Answers
1) As given in the table
1st name of the resistor signifies 1st digit
2nd name of the resistor signifies 2nd digit
3rd name is the multiplier and 4th one is tolerance
blue-violet - black - orange - gold = 670*(10)^3 +- 5% = 670 Kohm +- 5%
2) 331*(10)^1 +- 2%
likewise you can do rest
Add Answer to:

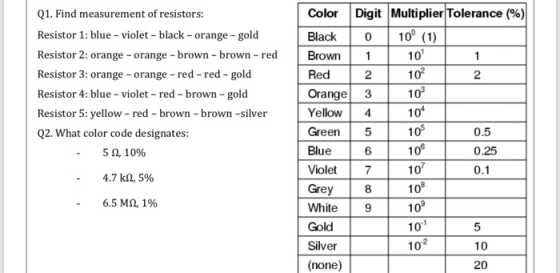

Q1. Find measurement of resistors: Resistor 1: blue - violet - black - orange - gold...
Three resistors with color codes 1. Brown, Brown, Brown, 2. Red, Red, Red 3. Orange, Black,...
Three resistors with color codes 1. Brown, Brown, Brown, 2. Red, Red, Red 3. Orange, Black, Orange are connected in parallel. A battery of voltage 4.5 V is connected to the resistors. a) Draw the circuit diagram. b) List the values of the resistors according to color code. c) Calculate the equivalent resistance 1st Digit d) Find the current through each resistor e) Add the currents through each resistor to find the total current and use the voltage to find...
Please help. Part 3: Using the color coding for resistors, determine the resistance and the tolerance...
Please help.
Part 3: Using the color coding for resistors, determine the resistance and the tolerance for the following 3 resistors: exornn Rbolor coding: brown, black, yellow, gold Rgcolor coding: red, violet, orange, gold Rocolor coding: orange, orange, orange, gold The chage nowng thonuh a sece is every themes Find out the outest throsgh the sistance is diven e well se the colot code fur esch of the resistors 4-Band-Code 2%, 5%, 10% 560k Ω 5% 1ST BAND | 2ND...
Hello, Can you answer the following question using the charts and picture I've provided? Thank You...
Hello,
Can you answer the following question using the charts and
picture I've provided?
Thank You so Much!
Information Needed to Solve the Question
(2) The two resistors, Ri and R2, shown at the top of Figure 3(a) will be used in Experımehl i. Using the colour code in Table 1, write the corresponding colour and the digit in the t below for each resistor. See the example in Figure 10. Record the values of Ri and R2 with their...
If the colored bands on a resistor are blue, red, green and Gold, then what is...
If the colored bands on a resistor are blue, red, green and Gold, then what is the resistors tolerance? If the colored bands on a resistor are Brown, Orange, Blue and Gold. What is the value its resistance?
Please help me with this question! It is due by midnight! I'm doing this in Visual...
Please help me with this question! It is due by midnight! I'm
doing this in Visual Studio 2019. But any others are fine as long
as it can compile.
I also wanted to see the results if it is compiled and QT
comments as well. Please respond immediately!
Description: For this homework we will use classes to model something in the real world. In this case a resistor. The colored bands on the top-most resistor shown in the photo below...
Prelab 1: A resistor has following colored stripes: orange, violet, red and silver. What is the...
Prelab 1: A resistor has following colored stripes: orange, violet, red and silver. What is the value of the resistance? What are the minimum and maximum possible values for the resistance? Prelab 2: What would be color banding for a 1 k resistor with a 10% tolerance? Prelab 3: What would be color banding for a 10 k resistor with a 5% tolerance?
Need #8 attached a cleared picture of the graph Nomina Measured Part 1: Loop Method- Calculations...
Need #8 attached a cleared picture of the graph
Nomina Measured Part 1: Loop Method- Calculations Ri 13. 3. Determine the nominal resistance and tolerance of each resistor by reading its color code. They should have the following approximate resistances: (5 pts) R1-10 Ω R2-12Ω 3 R 22 R4 = 18 Ω R-22 Ω 4. Measure the resistance of each resistor using an ohm- meter. (5 pts) 5. Measure e of the two batteries using a voltmeter They should be...
Figure 1(a) shows a combination of series and parallel circuit while Table 1 lists the colour...
Figure 1(a) shows a combination of series and parallel circuit while Table 1 lists the colour code of 4-band resistor. The voltage source, vs is indicated in Figure 1(b). (a) Find the nominal value of resistor Rand the range of its actual resistance. (2 marks) (b) Using the nominal value of RL, compute the effective voltage across Rt. (6 marks) (c) Using the nominal value of Ru, calculate the average power dissipated in RL. (2 marks) 350 22 ş 150...
13) The value of the resistance R1 of colors (Red, Black, Black, and Gold) is: Red...
13) The value of the resistance R1 of colors (Red, Black, Black, and Gold) is: Red Black Gold Gold: 5% Silver 1023 (A) (2052) 22 (B) (20:1) (C) (200+ 10) 2 (D) (2007 20) 2 (E) (27 0.1) Black: 0 Brown: 1 Red: 2 Orange : 3 Yellow : 4 Green: 5 Blue : 6 Violet:7 Gray: 8 White: 9 14) Which of the following equations is correct when applying Kirchhoff loop rule for the circuit shown below (A) 6...
1. Fill in the resistance values for the following color codes: a) blue gray red silver...
1. Fill in the resistance values for the following color codes: a) blue gray red silver b) yellow purple brown gold c) brown orange green gold d) white black orange gold e) green blue yellow silver f) red green black gold 2. Fill in the circle with the correct type of meter (V, A,2) a) b) c) 3. Which meter(s) will measure the total current in the circuit shown below? A C, D &E (circle correct answer) A & B...
Three resistors with color codes 1. Brown, Brown, Brown, 2. Red, Red, Red 3. Orange, Black, Orange are connected in parallel. A battery of voltage 4.5 V is connected to the resistors. a) Draw the circuit diagram. b) List the values of the resistors according to color code. c) Calculate the equivalent resistance 1st Digit d) Find the current through each resistor e) Add the currents through each resistor to find the total current and use the voltage to find...
Please help.
Part 3: Using the color coding for resistors, determine the resistance and the tolerance for the following 3 resistors: exornn Rbolor coding: brown, black, yellow, gold Rgcolor coding: red, violet, orange, gold Rocolor coding: orange, orange, orange, gold The chage nowng thonuh a sece is every themes Find out the outest throsgh the sistance is diven e well se the colot code fur esch of the resistors 4-Band-Code 2%, 5%, 10% 560k Ω 5% 1ST BAND | 2ND...
Hello,
Can you answer the following question using the charts and
picture I've provided?
Thank You so Much!
Information Needed to Solve the Question
(2) The two resistors, Ri and R2, shown at the top of Figure 3(a) will be used in Experımehl i. Using the colour code in Table 1, write the corresponding colour and the digit in the t below for each resistor. See the example in Figure 10. Record the values of Ri and R2 with their...
Please help me with this question! It is due by midnight! I'm
doing this in Visual Studio 2019. But any others are fine as long
as it can compile.
I also wanted to see the results if it is compiled and QT
comments as well. Please respond immediately!
Description: For this homework we will use classes to model something in the real world. In this case a resistor. The colored bands on the top-most resistor shown in the photo below...
Prelab 1: A resistor has following colored stripes: orange, violet, red and silver. What is the value of the resistance? What are the minimum and maximum possible values for the resistance? Prelab 2: What would be color banding for a 1 k resistor with a 10% tolerance? Prelab 3: What would be color banding for a 10 k resistor with a 5% tolerance?
Need #8 attached a cleared picture of the graph
Nomina Measured Part 1: Loop Method- Calculations Ri 13. 3. Determine the nominal resistance and tolerance of each resistor by reading its color code. They should have the following approximate resistances: (5 pts) R1-10 Ω R2-12Ω 3 R 22 R4 = 18 Ω R-22 Ω 4. Measure the resistance of each resistor using an ohm- meter. (5 pts) 5. Measure e of the two batteries using a voltmeter They should be...
Figure 1(a) shows a combination of series and parallel circuit while Table 1 lists the colour code of 4-band resistor. The voltage source, vs is indicated in Figure 1(b). (a) Find the nominal value of resistor Rand the range of its actual resistance. (2 marks) (b) Using the nominal value of RL, compute the effective voltage across Rt. (6 marks) (c) Using the nominal value of Ru, calculate the average power dissipated in RL. (2 marks) 350 22 ş 150...
13) The value of the resistance R1 of colors (Red, Black, Black, and Gold) is: Red Black Gold Gold: 5% Silver 1023 (A) (2052) 22 (B) (20:1) (C) (200+ 10) 2 (D) (2007 20) 2 (E) (27 0.1) Black: 0 Brown: 1 Red: 2 Orange : 3 Yellow : 4 Green: 5 Blue : 6 Violet:7 Gray: 8 White: 9 14) Which of the following equations is correct when applying Kirchhoff loop rule for the circuit shown below (A) 6...
1. Fill in the resistance values for the following color codes: a) blue gray red silver b) yellow purple brown gold c) brown orange green gold d) white black orange gold e) green blue yellow silver f) red green black gold 2. Fill in the circle with the correct type of meter (V, A,2) a) b) c) 3. Which meter(s) will measure the total current in the circuit shown below? A C, D &E (circle correct answer) A & B...
